Quick Details
-
Product name:
-
pass box
-
Machine type:
-
static pass box
-
Certification:
-
CE Certificate
-
Material:
-
Stainless Steel
-
Size:
-
650*530*850mm
-
Packaging:
-
wooden package
-
Clean level:
-
Class 100
-
Power:
-
220V/50Hz/110v
-
Type:
-
GMP Factory Cleanroom static/dynamic pass box
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUGOLD
-
After-sales Service Provided:
-
No overseas service provided, Online support
-
Product name:
-
pass box
-
Machine type:
-
static pass box
-
Certification:
-
CE Certificate
-
Material:
-
Stainless Steel
-
Size:
-
650*530*850mm
-
Packaging:
-
wooden package
-
Clean level:
-
Class 100
-
Power:
-
220V/50Hz/110v
-
Type:
-
GMP Factory Cleanroom static/dynamic pass box
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
Product Description

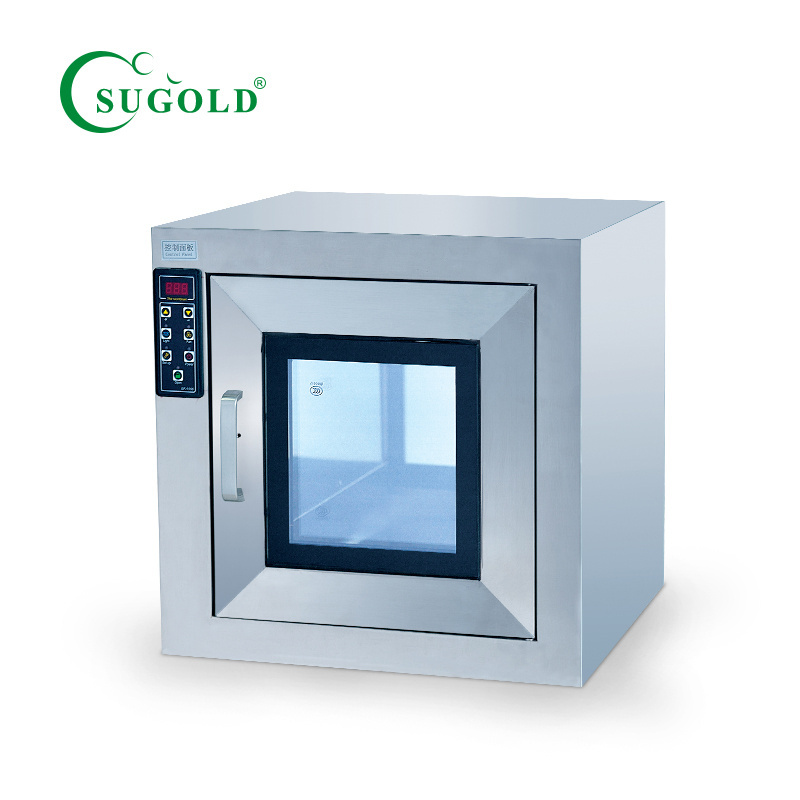

GMP Cleanroom static and dynamic SS304 pass box
Product features
1.Material:SS 304 Or SS 201
2.On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the
same time on both sides of the door.
3.The outlet of the wind speed up to more than 20 s.
4.Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.
5.Using EVA sealing material, sealing performance is high.
6.Imported electronic components, reliable in performance.
|
Model
|
Material and type
|
Inner dimension (W*D*H) (mm)
|
Overall dimension (W*D*H) (mm)
|
|
ZJSJ-IN400
|
SS 304 micro control Static type
|
400*400*400
|
585*466*520
|
|
ZJSJ-IN500
|
|
500*500*500
|
685*566*620
|
|
ZJSJ-IN600
|
|
600*600*600
|
785*666*720
|
|
ZJSJ-IN700
|
|
700*700*700
|
885*766*820
|
|
ZJSJ-IN 800
|
|
800*800*800
|
985*866*920
|
|
ZJSJ-IN900
|
|
900*900*900
|
1085*966*1020
|
|
ZJSJ-IN1000
|
|
1000*1000*1000
|
1185*1066*1120
|
|
ZJSJ-OU400
|
SS 304 micro control Static type
|
215*334*280
|
400*400*400
|
|
ZJSJ-OU500
|
|
315*434*380
|
500*500*500
|
|
ZJSJ-OU600
|
|
415*534*480
|
600*600*600
|
|
ZJSJ-OU700
|
|
515*634*580
|
700*700*700
|
|
ZJSJ-OU800
|
|
615*734*680
|
800*800*800
|
|
ZJSJ-OU900
|
|
715*834*780
|
900*900*900
|
|
ZJSJ-OU1000
|
|
815*934*880
|
1000*1000*1000
|
|
ZJSJ-JJ400
|
SS 304 micro control Dynamic type (Containing air blower and filter)
|
400*400*400
|
585*466*900
|
|
ZJSJ-JJ500
|
|
500*500*500
|
685*566*1000
|
|
ZJSJ-JJ600
|
|
600*600*600
|
785*666*1100
|
|
ZJSJ-JJ700
|
|
700*700*700
|
885*766*1200
|
|
ZJSJ-JJ 800
|
|
800*800*800
|
985*866*1300
|
