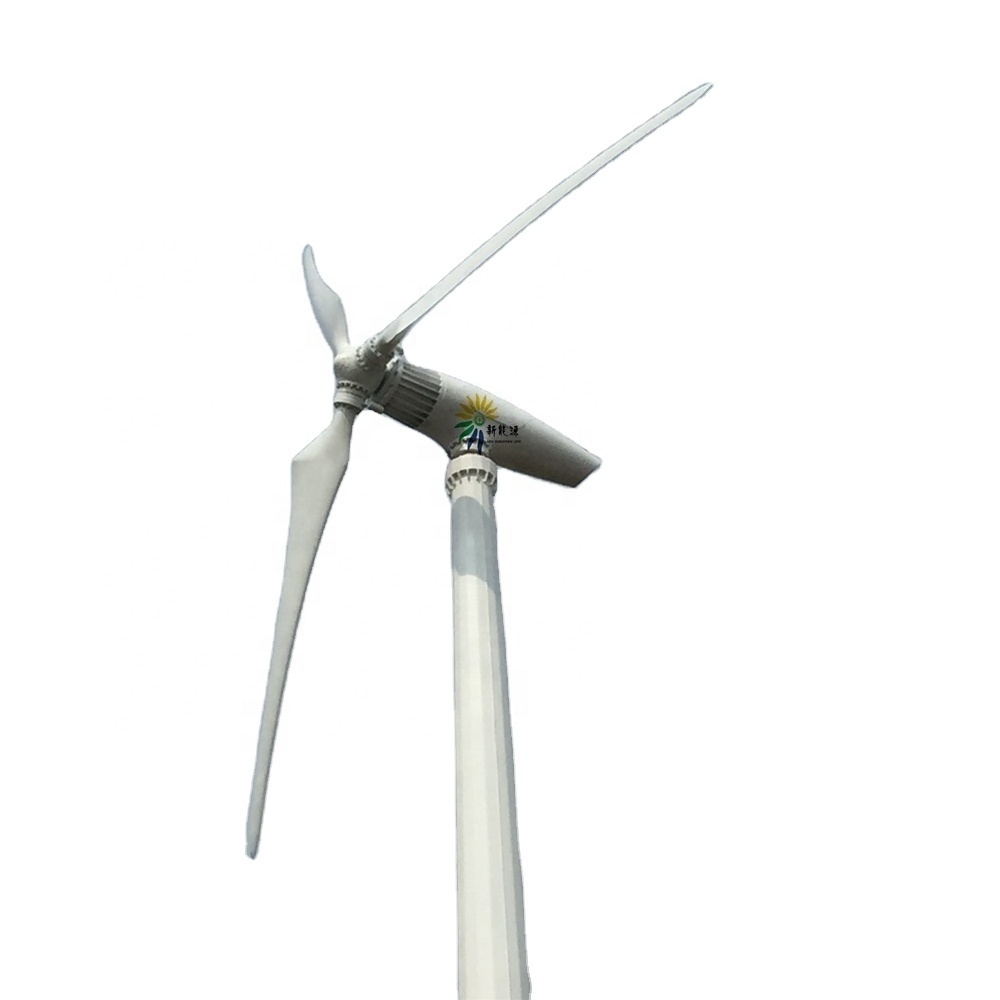

Windspot Pitch Controlled Wind Turbine 10kw 3 Years on Grid/off Grid, Wind Solar Hybrid 96v 120v 240v 300v 360v 500v 15KW HLD

HLD! Speed regulated Varialbe pitch wind turbine 10kw with best wind generator price

Wind turbine main body price: USD7800.00

( INCLUDING   GENERATOR WITH NACELLE 1set, BLADES 3pcs ,VARIABLE PITCH HUB,TAIL ONLY)

Centrifugal variable pitch control, yaw, auto brake, manual brake protection system, more reliable in rich wind place

Low wind speed start up, pitch regulation, safe system

FD8-10kw install in rich wind place;

FD10-10kw install in normal/low average wind speed place.

1. 10kw pitch controlled wind turbine technical data:

Technical Parameters
Item	FD8-10kw
Rotor diameter(m)	8
Blade material	Reinforced FPR
Blade quantity	3
Rated wind speed(m/s)	11
start-up wind speed(m/s)	3
Working wind speed(m/s)	3.0-30
Security wind speed(m/s)	50
Start torque (n/m)	7N.m
Speed regulation method	variable pitch,Electromagnetic brake + Yawing
Stop method	Electromagnetic Brake + Manual brake
Generator type	Permanent magnet,three phase, AC
Rated power	10KW
Maximum power	13KW
Rated rotating speed(r/min)	200
Working voltage	DC120V/DC240/DC380/DC500v
main body weight(kg)	1200

10kw variable pitch wind turbine Output power data:

Power w	Wind speed (m/s)	Roration speed (r/min)	Output power (W)
10000	3	66	260
	4	87	515
	5	109	902
	6	131	1877
	7	153	3298
	8	175	4924
	9	197	7010
	10	218	10101
	11	225	10507
	12	232	10858
	13	251	11160
	14	259	11350
	15	266	11650
	16	274	12060
	17	280	12380
	18	280	12380
	19	280	12380
	20	280	12380

FD10-10kw variable pitch wind turbine normal spec:

Technical Parameters
Item	FD10-10kw
Rotor diameter(m)	10
Blade material	Reinforced FPR
Blade quantity	3
Rated wind speed(m/s)	9
start-up wind speed(m/s)	3
Working wind speed(m/s)	3.0-30
Security wind speed(m/s)	50
Start torque (n/m)	7N.m
Speed regulation method	variable pitch,Electromagnetic brake + Yawing
Stop method	Electromagnetic Brake + Manual brake
Generator type	Permanent magnet,three phase, AC
Rated power	10KW
Maximum power	13KW
Rated rotating speed(r/min)	180
Working voltage	DC120V/DC240/DC380/DC500v
main body weight(kg)	1350

Variable pitch wind turbine 2kw-50kw:

Pitch Control Wind Turbine Technical Parameters
Item	FD3.8-2kw	FD4-3kw	FD5.4-5kw	FD10-10kw	FD12-20kw	FD14-30kw	FD23-50kw
Rotor diameter(m)	3.8	4	5.4	10	12	14	23
Blade material	Reinforced FPR			Reinforced FPR	Reinforced FPR
Blade quantity	3	3	3	3	3	3	3
Rated wind speed (m/s)	9	10	10	10	10	9	9
Start-up wind speed(m/s)	3	3	3	3	3	3	3
Working wind speed(m/s)	3.0-25	3.0-35	3.0-35	3.0-35	3.0-35	3.0-35	3.0-35
Security wind speed(m/s)	40	40	45	45	50	50	50
Starting torque(n/m)	1.4	2.5	4.5	7.5	14	20	110
Speed adjusting mode	Centrifugal Pitch Control				Active Pitch Control, Active Yawing
Stop method	Electromagnetic + Manual brake				Feathering,Yawing,Electromagnetic
Generator type	Permanent Magnet Three phase AC generator
Rated power	2KW	3KW	5KW	10KW	20KW	30KW	50KW
Maximum power	3KW	4KW	6KW	12KW	25KW	35KW	60KW
Rated RPM(r/min)	380	300	240	180	150	140	60
Working voltage	DC24V-500V	DC48V-500V	DC48V-500V	DC120V-500V	DC240V-500V	DC500V	DC700V
Wind turbine weight(kg)	130	160	260	1000	2500	2800	6580

Production Capacity: 100 sets per year

Main market:  US, Canada, Australia, New Zealand, European,

Testing Machinery:

Generator platform test

Spring test instrument

Blade angle test platform

Automatic pitch controlled system instrument

Blade balance adjustment instrument

Blade weight center test platform

Turbine turn-to-turn test system

......

CE, ISO,IEC approved

Recommend for

•  home, garden, signal station, , island,farm...

10kw wind power generator can be used with solar panels to provide more reliable year-round energy supply.

3.  Pitch controlled element

Rotating speed change of wind rotor drives the centrifugal pitch control mechanism to adjust blade pitch; wind pressure on wind rotor will reduce, and then wind turbine rotating speed slow down. Close loop control, reliable regulation.

Pitch control mechanism is sensitive, reliable, and can be used in variable environments.

Wind turbine start up: keep a big blade pitch, start up with 3m/s wind speed;

Wind turbine start to run: reduce blade pitch step by step, better for speedup;

4-12m/s wind speed: regulate the optimum blade pitch to keep the max output power of wind turbine;

Encountering to strong wind: adjust blade pitch into negative angle to keep rotating speed within limits;

Manual stop: operate manual winch to adjust blade pitch into negative angle, blade will lose it aerodynamics, start mechanical brake to stop wind turbine.

4. 10kw pitch controlled wind turbine advantages

1.) Leading centrifugal pitch control technology

5kw pitch controlled wind turbine, centrifugal pitch controlled mechanism of Wind turbine adjusts blade pitch following wind rotor rotating speed, and keep wind turbine at rated rotating speed. The wind turbine has a stable output power and safe running and is maintenance free.

2.) Auto protection system: APS System

Auto protection system, is selfdeveloped system. When wind speed is over 30m/s or output votlage is over rated, protection system will stop wind turbine, when wind speed is suitable, it will release wind turbine again

3.) Blade technology:

Choose aerofoil through wind tunnel test, optimize design according to aerodynamics, self design and manufactured blade. 5kw wind turbine blade has high efficiency and wide TSR. It is approved by relating dept and all of the users.

Vacuum mould blades with protection film

C.W blades, low noise level, high efficiency

FRB material, 3 pcs blades per set

Adjust blades rotor balance before delivery

4.)  Generator technology:

Direct drive, wind rotor matches PM generator in optimum TSR High efficiency, low start-up torque.

Allow continuous running in over speed and over load condition 1.5 times of rated speed and power

Maintenance free

5.) Installation technology:

tilt-up tower, particular patent technology, save installation cost

6.) 30% more electricity generated

5kw pitch controlled wind turbine double-grade pitch controlled system not only guarantees optimum efficiency of wind rotor, wind turbine safety and steady output power when the wind speed is higher than rated wind speed, but also makes sure the system can trace the optimum tip speed ratio when the wind speed is lower than rated wind speed to make the wind turbine easy startup, good wind rotor efficiency and more power generation at low wind speed zone.

7.) Multiple protection measures

Leading eadge protection finishing:reduce 10% wind rotor noise, good anti-corrosion capability, prolong service life effectively

5. Working system

On grid working system:

10kw wind turbine with tower + PWM on grid controller with dump load + 10k/15 grid tie inverter;

On grid system wiring diagram

Off grid working system:

10kw wind turbine with tower + PWM off grid controller with dump load+ battey group + pure sine wave inverter

6. Tower type: guy wire tower, stand lone tower, tilting up tower, hydraulic tower (optional)

Tower height can be manufacture according to user's request.

The tower with  hot-galvanize.

We provided the tower foundation drawing after confirm the tower type, tower height.

7. Matched controller

Controller converts 3 phase AC power to Dc and charge to the battery group or feed to the grid tie inverter.

Controller with auto brake function, PWM voltage stablization function.

Matched with off grid single phase/ 3 phase pure sine wave inverter.

On grid system grid tie inverter ABB power one inverter, our provided grid tie inverter.

10KW ON GRID controller normal spec:

Type	10KW
Wind turbine rated power	10KW
Wind turbine Max. power	20KW
Function	Rectifier, control, dc output
Display mode	LCD
Display content	Wind turbine voltage, wind turbine current, wind turbine power, Solar panel voltage, solar panel current, solar panel power, DC output voltage, output current, output power
PWM constant voltage	≥480dc
3-phase dump load voltage of the wind turbine	560±5Vdc
Time-lapse of the wind turbine 3-phase dump load	12-20 min
Low-voltage	≤200Vdc
PWM dump load fuse	32A
DC output fuse	40A
Work environment temperature	-30-60°C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)
Cooling method	Forced air cooling
*Communication interface (optional)	RS485/USB/GPRS/Ethernet
*Temperature compensation (optional)	-4mv/°C/2V,-35°C~+80°C, Accuracy:±1°C
Size of the controller	655*480*320 mm
Weight of the controller	26Kg
Size of the dump load	760*520*550 mm
Weight of the dump load	38Kg

8. Matched grid tie inverter 10k/15k, pure sine wave inverter single phase/ 3 phase
