Quick Details
-
Screw Speed (rpm):
-
38.7 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SKY WIN
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
19000*1520*2800
-
Power (kW):
-
86.7
-
Weight:
-
6000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
36:1
-
Screw diameter (mm):
-
65/132
-
Screw Speed (rpm):
-
38.7 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SKY WIN
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
19000*1520*2800
-
Power (kW):
-
86.7
-
Weight:
-
6000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas

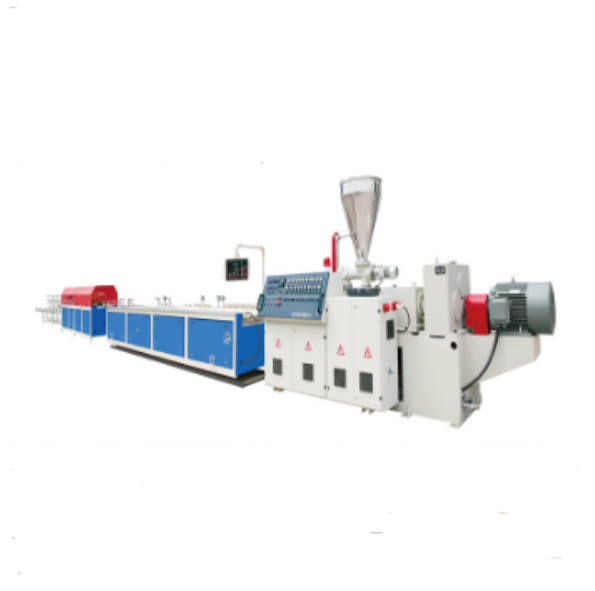

PVC Profile Extrusion Line
1. Practical Application of the Conical Twin-screw Extruder:
To Extrude PVC products, including plastic-steel doors and windows., etc.
2.Features of the Conical Twin-screw Extruder:
BH series type conical twin-screw extruder is a kind of equipment suitable for
all kinds of PVC powder extrusion.
Equipped with different mold which can produce all kinds of PVC plastic pipe, PVC profiles, PVC plates, PVC sheets, bars and granulation.
3.Technical Parameter of the Conical Twin-screw Extruder:
|
Model |
SWYXC45/90 |
SWYXC50/105 |
SWYXC55/110 |
SWYXC65/132 |
SWYXC80/156 |
|
Screw Diameter(mm) |
45/90 |
50/105 |
55/110 |
65/132 |
80/156 |
|
Screw Speed(rpm) |
1-45.5 |
1-30 |
1-38 |
1-30 |
1-36.9 |
|
Motor Power(kw) |
15/11.5 |
22/18 |
22/18 |
37/24 |
55/36 |
|
Output(kg/h) |
40-70 |
60-100 |
70-150 |
80-250 |
250-400 |
|
Net weight(kg) |
3000 |
3500 |
3800 |
4000 |
5000 |
|
Max Width(mm) |
180 |
240 |
400 |
600 |
800 |
|
Drawing Height(mm) |
140 |
140 |
140 |
140 |
140 |
|
Drawing Force(fn) |
15 |
30 |
30 |
40 |
50 |
|
Drawing Speed(m/s) |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
0.5-5 |
|
Auxiliaries Total Power(kw) |
18.7 |
31.6 |
31.6 |
31.6 |
31.6 |
|
Outline Dimension(mm) |
3360*1290*2127 |
3620*1050*2157 |
3620*3500*2157 |
4235*1520*2450 |
4750*1550*2460 |
