Quick Details
-
Brand:
-
all the brand
-
Service life:
-
10%~20% longer than traditional high chromium iron
-
Application:
-
impact crusher,mobile impact crusher
-
Installation:
-
Easily to fit into the impact crusher
-
Main Material:
-
High Chrome
-
Quality:
-
TOP 5 supplier in China
-
Feature:
-
good abrasion resistance and impact resistance
-
MOQ:
-
1 picec
-
Certificate:
-
ISO/CE/AStM/TUV
Quick Details
-
Weight (KG):
-
265
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YK or custom-made
-
Brand:
-
all the brand
-
Service life:
-
10%~20% longer than traditional high chromium iron
-
Application:
-
impact crusher,mobile impact crusher
-
Installation:
-
Easily to fit into the impact crusher
-
Main Material:
-
High Chrome
-
Quality:
-
TOP 5 supplier in China
-
Feature:
-
good abrasion resistance and impact resistance
-
MOQ:
-
1 picec
-
Certificate:
-
ISO/CE/AStM/TUV

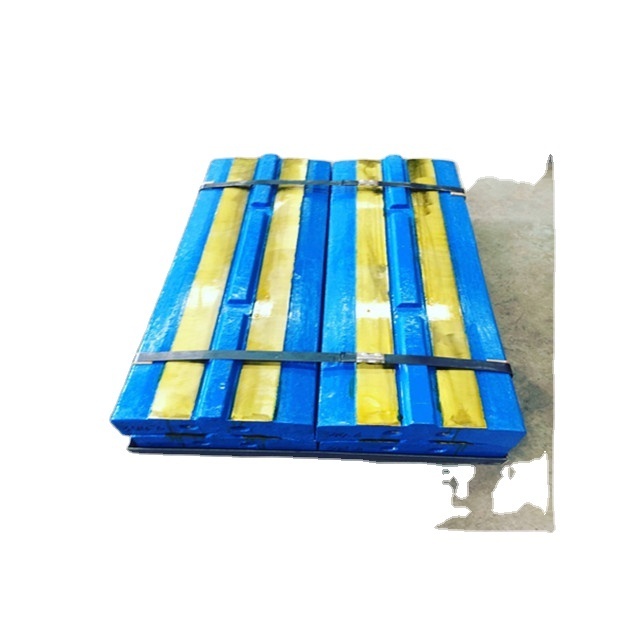

Kleemann mobile impact crusher parts blow bar: MR 100 R,MR 100 Z,MR 110 R EVO,MR 110 Z EVO, MR 130 Z EVO,
Blow bar (Custom-made parts for impact crusher( fixed &mobile ) are welcome)
Overseas brand:Hazemag, Hartl, Kleeman Parker, Pegson, Terex, Atlas Copco,
Tesab , Pilot,Kue Ken,Sandvik,Meto, Sheepbridge,etc
Brand: all the Chinese brand,like jianshe, shanghai sanbao,SMB,etc
1.Material Specifications of blow bar :
|
High Chrome Casting Material Chemical Composition(%) |
||||||||||
| Code Elem. | C | Si | Mn | Cr | Mo | Na | Cu | P | S | HRC |
| KmTBCr4Mo | 2.5-3.5 | 0.5-1.0 | 0.5-1.0 | 3.5-4.5 | 0.3-0.5 | - | - | ≤0.15 | ≤0.10 | ≥55 |
| KmTBCr9Ni5Si2 | 2.5-3.6 | 1.5-2.2 | 0.3-0.8 | 8.0-10.0 | 0-1.0 | 4.5-6.5 | 4.5-6.5 | - | - | ≥58 |
| KmTBCr15Mo | 2.8-3.5 | ≤1.0 | 0.5-1.0 | 13-18 | 0.5-3.0 | 0-1.0 | 0-1.0 | ≤1.0 | ≤0.06 | ≥58 |
| KmTBCr20Mo | 2.0-3.3 | ≤1.2 | ≤2.0 | 18-23 | ≤3.0 | ≤2.5 | ≤1.2 | - | - | ≥60 |
| KmTBCr26 | 2.3-3.3 | ≤1.2 | ≤1.0 | 23-30 | ≤3.0 | ≤2.5 | ≤2.0 | - | - | ≥60 |
2.Model: for all Chinese brand and many other OEM brand such as hazmag,hartl.etc
| Model |
Roller size
(mm) |
Feeding
opening(mm) |
Max. feed
size (mm) |
Capacity (t/h) |
Power
(kw) |
Weight (t) | |
| PF-1007 | Φ 1000x700 | 400x730 | 300 | 35~50 | 55 | 9.5 | |
| PF-1010 | Φ 1000x1050 | 400x1080 | 350 | 50~80 | 75 | 10 | |
| PF-1010V | Φ 1000x1050 | 400x1080 | 350 | 50-80 | 55-75 | 13.2 | |
| PF-1210 | Φ 1250x1050 | 400x1080 | 350 | 70~120 | 110 | 14 | |
| PF-1210V | Φ 1250x1050 | 400x1080 | 350 | 70-120 | 110-132 | 15.2 | |
| PF-1214 | Φ 1250x1400 | 400x1430 | 350 | 80~160 | 132 | 18 | |
| PF-1214V | Φ 1250x1400 | 400x1080 | 350 | 130-180 | 132-160 | 20 | |
| PF-1315 | Φ 1300x1500 | 860x1520 | 500 | 160~260 | 200 | 19.3 | |
| PF-1315V | Φ 1320x1500 | 860x1520 | 500 | 150-220 | 180-220 | 20.5 | |
| PF-1316 | Φ 1300x1600 | 860x1520 | 500 | 170~270 | 200 | 19.5 | |
| PF-1516 | Φ 1500x1600 | 860x1580 | 500 | 240~290 | 280 | 26.5 |
MR 122,MR 130 Z EVO 2
3. Popular Ceramic blow bar Feature
1).Long working life
2). Nice surface
3). Impeccable wear-resisting,
Welcome your inquiry or Visit us!
