Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Panpower or OEM
-
Model Number:
-
11KW
-
Input Voltage:
-
48VDC
-
Output Voltage:
-
220/230VAC
-
Output Frequency:
-
50/60HZ
-
Warranty:
-
12 months
-
Weight:
-
18.5kg
-
Application:
-
Solar Energy System
-
Power:
-
11KW
-
MPPT:
-
150A
-
PV MPPT range:
-
90V~500VDC
-
Max PV voltage:
-
500V
-
Wave form:
-
Pure sine wave
-
Display:
-
LED/LCD
-
Commication serface:
-
RS232/RS485
-
Protection:
-
short circut, overload, overcharge, overcurrent etc
-
Monitor function:
-
built-in wifi
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%(max)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Panpower or OEM
-
Model Number:
-
11KW
-
Input Voltage:
-
48VDC
-
Output Voltage:
-
220/230VAC
-
Output Frequency:
-
50/60HZ
-
Warranty:
-
12 months
-
Weight:
-
18.5kg
-
Application:
-
Solar Energy System
-
Power:
-
11KW
-
MPPT:
-
150A
-
PV MPPT range:
-
90V~500VDC
-
Max PV voltage:
-
500V
-
Wave form:
-
Pure sine wave
-
Display:
-
LED/LCD
-
Commication serface:
-
RS232/RS485
-
Protection:
-
short circut, overload, overcharge, overcurrent etc
-
Monitor function:
-
built-in wifi
Induction

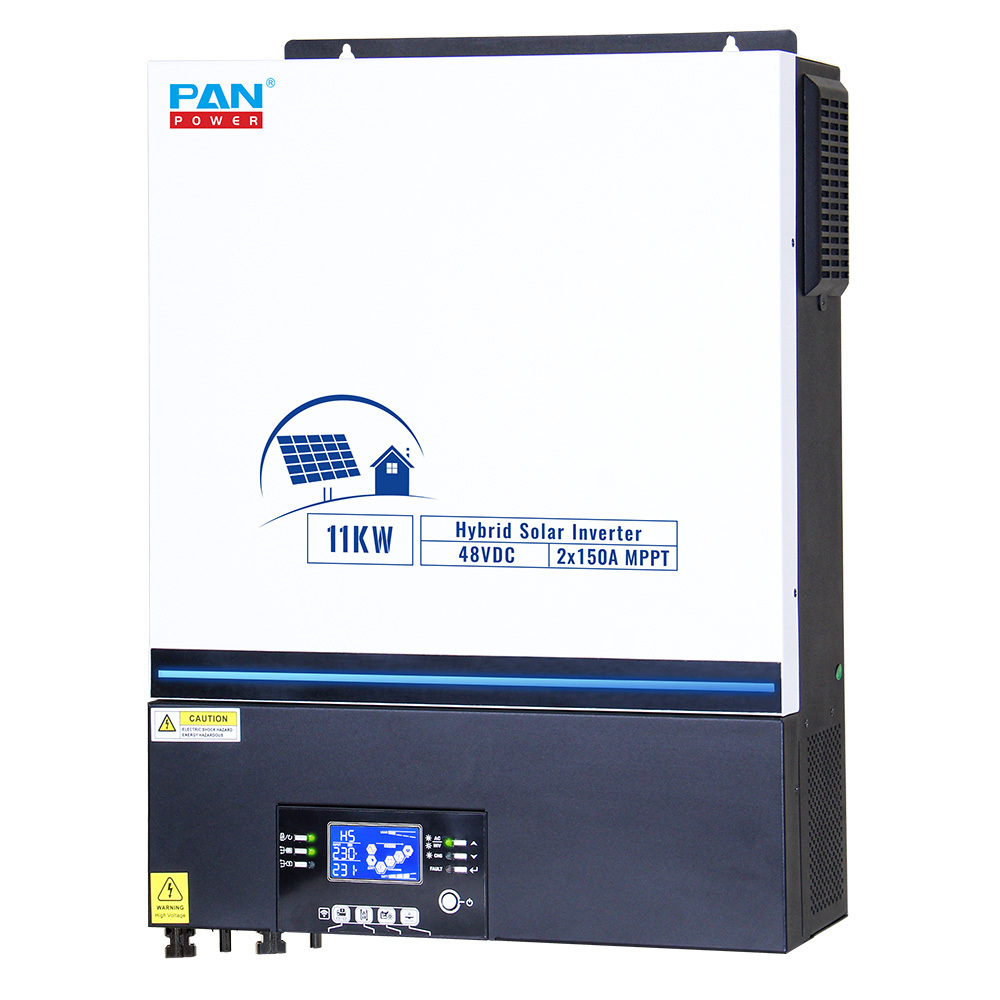

48vdc 11kw solar system hybrid inverter. This is a multi-functional inverter/charger, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. This series is with RS485, can communicate with many brand lithium battery. It is with built-in wifi function, user can monitor inverter via phone app.
48vdc 11kw solar system hybrid inverter. This is a multi-functional inverter/charger, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. This series is with RS485, can communicate with many brand lithium battery. It is with built-in wifi function, user can monitor inverter via phone app.
Main Features:
* 11KW continue output power
* Max 150A MPPT solar charge controller
* Wide PV range 90VDC~500VDC
* Max PV Voltage 500VDC
* Max PV input power 2*5500W
* Max PV input current 2*27A
* Max AC charger 150A
* Wide AC input range 90~280Vac
* Built-in WiFi for mobile monitoring
* Communication port for BMS of lithium battery
* Both Single phase and 3 phase parallel function
* Built-in anti dust kit
* Working Status indication with RGB lights
* Max 150A MPPT solar charge controller
* Wide PV range 90VDC~500VDC
* Max PV Voltage 500VDC
* Max PV input power 2*5500W
* Max PV input current 2*27A
* Max AC charger 150A
* Wide AC input range 90~280Vac
* Built-in WiFi for mobile monitoring
* Communication port for BMS of lithium battery
* Both Single phase and 3 phase parallel function
* Built-in anti dust kit
* Working Status indication with RGB lights
Product Paramenters
|
MODEL
|
MAX E-11KW
|
HY5532VMII
|
|
|||
|
Capacity
|
11KVA/11KW
|
5.5KVA/5.5KW
|
|
|||
|
Parallel function
|
Yes, up to 6 units
|
|
|
|||
|
INPUT
|
|
|
|
|||
|
Nominal Voltage
|
220V/230/240VAC
|
|
|
|||
|
Acceptable Voltage Range
|
170-280 VAC (UPS), 90-280 VAC (Appliances)
|
|
|
|||
|
Frequency
|
50/60HZ (Auto sensing)
|
|
|
|||
|
OUTPUT
|
|
|
|
|||
|
Nominal Voltage
|
220/230VAC ± 5%
|
|
|
|||
|
Surge Power
|
2* rated power for 5 seconds
|
11000VA
|
|
|||
|
Frequency
|
50Hz/60Hz
|
|
|
|||
|
Waveform
|
Pure Sine Wave
|
|
|
|||
|
Transfer Time
|
10ms typical (UPS); 20ms typical (Appliances)
|
|
|
|||
|
Peak Efficiency(pv to inv)
|
98%
|
|
|
|||
|
Peak Efficiency (batt to pv)
|
94%
|
|
|
|||
|
Overload Protection
|
100ms@≥180% load; 5s@≥120% load; 10s@≥105%~120% load
|
|
|
|||
|
Crest Factor
|
3:1
|
|
|
|||
|
Admissible Power Factor
|
0.6~1(inductive or capacitive)
|
|
|
|||
|
BATTERY
|
|
|
|
|||
|
Battery Voltage
|
48 VDC
|
48 VDC
|
|
|||
|
Cold Start Voltager
|
46VDC
|
|
|
|||
|
Low DC cut-off voltage
|
44VDC (adjustable)
|
|
|
|||
|
Floating Charge Voltage
|
54 VDC (adjustable)
|
54VDC
|
|
|||
|
Bulk Charging Voltage
|
56.4VDC (adjustable)
|
|
|
|||
|
Overcharge Protection
|
63 VDC
|
63 VDC
|
|
|||
|
CHARGER
|
|
|
|
|||
|
Solar Charge Type
|
MPPT
|
|
|
|||
|
Max. PV Array Power
|
2*5500W
|
6000W
|
|
|||
|
Max. PV Array Open Circuit Voltage
|
500VDC
|
|
|
|||
|
PV Array MPPT Voltage Range
|
90VDC~450 VDC
|
|
|
|||
|
Maximum Solar Charge Current
|
150A
|
100A
|
|
|||
|
Maximum AC Charge Current
|
150A
|
60A
|
|
|||
|
Maximum Charge Current
|
150A
|
100A
|
|
|||
|
ENVIRONMENT
|
|
|
|
|||
|
Operating Temperature
|
(-10℃~55℃)
|
|
|
|||
|
Storage Temperature
|
(-15℃~60℃)
|
|
|
|||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
|
|||
|
Nature
|
|
|
|
|||
|
Size (D*W*H) mm
|
148*433*554
|
115*300*400
|
115*300*400
|
|||
|
Net Weight (kg)
|
18.5
|
12
|
12
|
|||
|
Communication Method
|
RS485/RS232/WiFi
|
|
|
|||
Product Details
Parallel Function
About Us
Foshan Panpower Science & Technology Co.,Ltd is the earliest manufacturer in China, producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS, Inverter, EPS, solar system. Our products are applied to many industries, such as aviation,railway, bank, security, electric power, road, national defense, insurance, electrical power and others. The customs, hospitals and governments give us a good evaluation due to our competitive price, high quality and complete service. Our advantages, which include up-to-date technology, 20 years rich
production experience, first rate production equipment, strong R&D capacity, quick response to the market and new design concept. These foundations so allow us to continually develop new high quality products incompliance with the application of electrical grid of both China and foreign countries.
production experience, first rate production equipment, strong R&D capacity, quick response to the market and new design concept. These foundations so allow us to continually develop new high quality products incompliance with the application of electrical grid of both China and foreign countries.
FAQ
Q: What’s the payment term?
A: Credit card, T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: Is this hybrid inverter?
A: yes. off gird hybrid, on/off grid hybrid.
Q: What is the delivery time?
A: Inverter in stock. Can delivery immediately.
Q: What is the shipping way?
A: By Air, by Sea or by Express.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: Is this hybrid inverter?
A: yes. off gird hybrid, on/off grid hybrid.
Q: What is the delivery time?
A: Inverter in stock. Can delivery immediately.
Q: What is the shipping way?
A: By Air, by Sea or by Express.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
