Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
35 KG
-
Marking Area:
-
110*110mm
-
Core Components:
-
laser source
-
Laser Wavelength:
-
355nm
-
Frequency range:
-
20kHz-200kHz
-
Pulse Repetition Frequency:
-
10-150KHz
-
Unfocused Beam Roundness:
-
≤96%
-
Control Board & Software:
-
JCZ EZcad2
-
Machine Size:
-
L670*W320*H670mm
-
Power Supply:
-
AC110 / 220V +10%, 50 / 60Hz
-
Pulse Energy:
-
>0.1mJ@30KHz
-

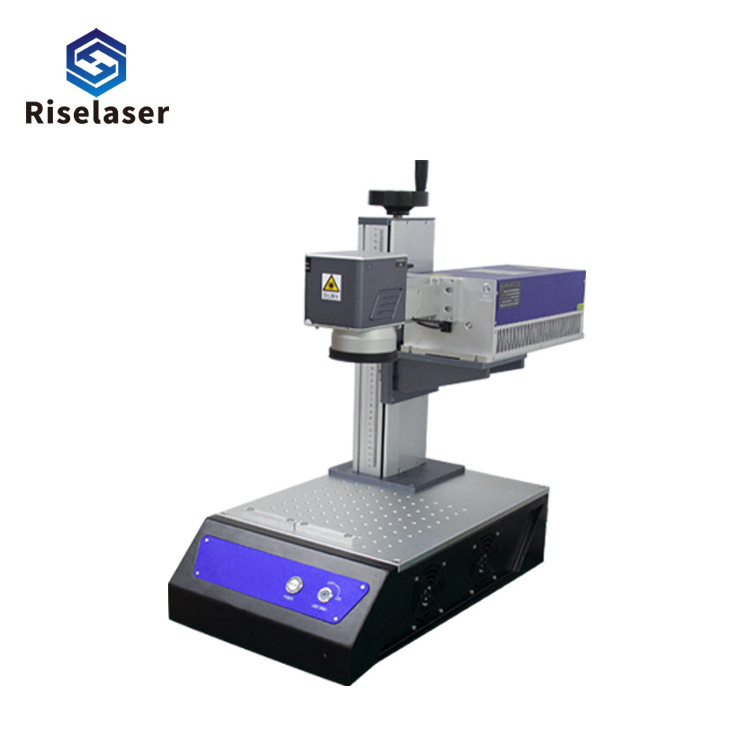

Product name:
-
UV Laser Makring Machine
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Diode
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
35 KG
-
Marking Area:
-
110*110mm
-
Core Components:
-
laser source
-
Laser Wavelength:
-
355nm
-
Frequency range:
-
20kHz-200kHz
-
Pulse Repetition Frequency:
-
10-150KHz
-
Unfocused Beam Roundness:
-
≤96%
-
Control Board & Software:
-
JCZ EZcad2
-
Machine Size:
-
L670*W320*H670mm
-
Power Supply:
-
AC110 / 220V +10%, 50 / 60Hz
-
Pulse Energy:
-
>0.1mJ@30KHz
-
Product name:
-
UV Laser Makring Machine
Product Description
1)355nm DPSS UV laser with average output power ＞3W@30KHz;
2)Mark plastic, regular metals, wood, leather, fruits, ceramic, etc.;
3)Short wavelength 355nm, generating tiny laser spot, achieving elaborate marking effect;
4)Cold processing method, producing little heat, no thermal deformation on material surface;
5)Small size and portable design, and ready to work when connecting with a PC or laptop;
6)With RS-232 serial port line, computer remote control the machine;
7)With professional JCZ marking board and EZcad2 software, achieving accurate marking effect;
8)High effective aluminum cooling module, in-built 7 cooling fans, narrow air duct, quick cooling effect;
9)Laser lifespan ＞ 20,000 hours. Afterwards, replace aging components to prolong lifespan.
2)Mark plastic, regular metals, wood, leather, fruits, ceramic, etc.;
3)Short wavelength 355nm, generating tiny laser spot, achieving elaborate marking effect;
4)Cold processing method, producing little heat, no thermal deformation on material surface;
5)Small size and portable design, and ready to work when connecting with a PC or laptop;
6)With RS-232 serial port line, computer remote control the machine;
7)With professional JCZ marking board and EZcad2 software, achieving accurate marking effect;
8)High effective aluminum cooling module, in-built 7 cooling fans, narrow air duct, quick cooling effect;
9)Laser lifespan ＞ 20,000 hours. Afterwards, replace aging components to prolong lifespan.
Product Paramenters
|
No
|
Item
|
Data
|
|
1
|
Pulse Width
|
≤15ns@30KHz
|
|
2
|
Max Marking Speed
|
2000mm/s
|
|
3
|
Mininum Character Size
|
0.15*0.15mm
|
|
4
|
Beam quality
|
M2＜1.2
|
|
5
|
Pulse Repetition Frequence
|
10 KHz - 150 KHz
|
|
6
|
Environment Requirement
|
Working temp: 18°-26°,Humidity: 30% - 85%.
|
|
7
|
Operation System
|
Win XP / 7 / 8 / 10 (32 bit , 64 bit)
|
|
8
|
Cooling ways
|
Air cooling
|
