Quick Details
-
Brand Name:
-
SNTOOM
-
Model Number:
-
Square two-stage deviation switch
-
Max. Current:
-
5
-
Product name:
-

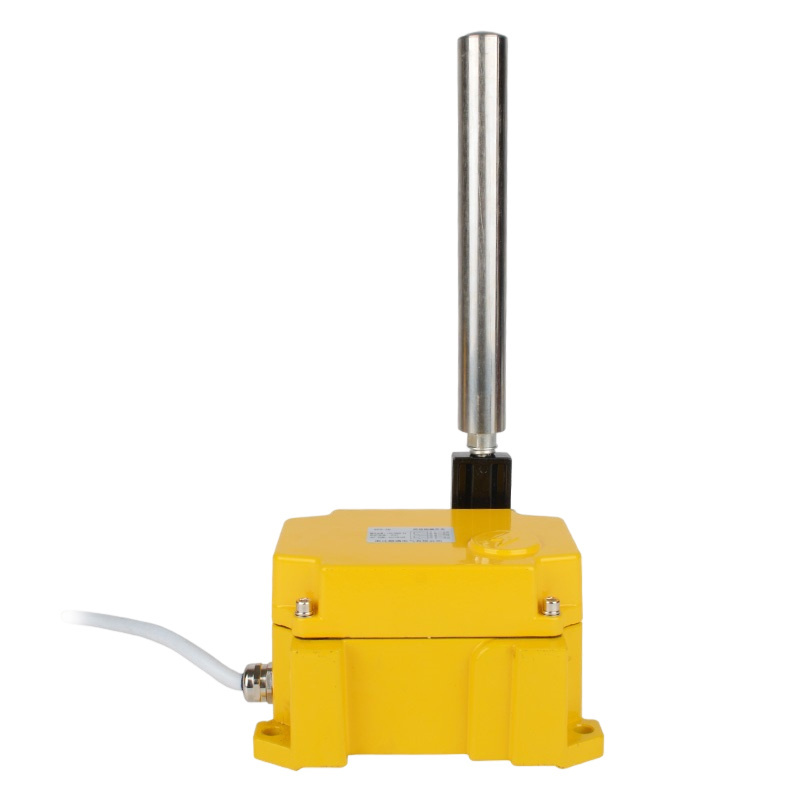

Square two-stage deviation switch
-
Color:
-
Yellow
-
Action force:
-
10khg
-
Protection grade:
-
NEMA4
-
Type:
-
Manual
-
Material:
-
Copper
-
Application:
-
Industrial
-
Function:
-
Safety Protection Device
-
ANY QUESTION:
-
Send
-
Condition:
-
100% Original
-
Certification:
-
CE/ISO/IEC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
380VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SNTOOM
-
Model Number:
-
Square two-stage deviation switch
-
Max. Current:
-
5
-
Product name:
-
Square two-stage deviation switch
-
Color:
-
Yellow
-
Action force:
-
10khg
-
Protection grade:
-
NEMA4
-
Type:
-
Manual
-
Material:
-
Copper
-
Application:
-
Industrial
-
Function:
-
Safety Protection Device
-
ANY QUESTION:
-
Send
-
Condition:
-
100% Original
-
Certification:
-
CE/ISO/IEC
Product Description
INTRODUCTION
* Aluminum alloy
The shell is made of aluminum alloy die-casting, which is anti-corrosion and moisture-proof and durable.
* Good sealing
Good sealing performance, good waterproof and moisture-proof function
* Waterproof connector
Material upgrade, the wiring is generally made of PVC, this section uses pure copper material, more performance, corrosion resistance and moisture.
* Aluminum alloy
The shell is made of aluminum alloy die-casting, which is anti-corrosion and moisture-proof and durable.
* Good sealing
Good sealing performance, good waterproof and moisture-proof function
* Waterproof connector
Material upgrade, the wiring is generally made of PVC, this section uses pure copper material, more performance, corrosion resistance and moisture.
Specification
|
Product name
|
Square two-stage deviation switch
|
|
Extreme angle
|
70°
|
|
Normal angle
|
adjustable within 22.5 ° from the vertical direction
|
|
Ambient temperature
|
-30℃ ~ 60℃
|
|
Reset method
|
Automatic reset
|
|
Action force
|
10KGH
|
|
Protection grade
|
NEMA4
|
|
ReliabilityRelative humidity
|
＞ 106 times
|
|
Place of us
|
various belt conveyors, port loading and unloading systems, crane / excavator jib limit heavy limit switches
|
The working principle of
When the rubber belt is running off track, the edge of the rubber belt will rotate the stick and squeeze it to make it tilt. If the tilt Angle of the stick is greater than the first-order action Angle, the switch will output another set of on when one set of first-order action Angle is issued
Turn off the signal. Two sets of switch signals can be used for alarm or shutdown respectively. After the tape machine is reset and running normally, the stick will automatically reset.
Installation method
a) The switch is installed on the rack fixing bracket smoothly.
b) Tie the steel wire rope to the pull rings at both ends, and the rope length on each side should not exceed 40 meters (if there is a slope, it should be shortened to 25 meters).
c) The pulling force should be appropriate to ensure the reliable reset of the switch.
d) The steel wire rope is set along the parallel direction of the tape, and a lifting ring is added every 10 meters.
