- Product Details
- {{item.text}}
Quick Details
-
Engine Brand:
-
China famous brand
-
Weight:
-
850 KG
-
Product name:
-
36hp orchard remote control small mini crawler tractor garden
-
Overall dimension:
-
1950X900X900mm
-
Engine power:
-
23. 53KW/2200RPM
-
Engine transmission mode:
-
Belt transmission
-
Main clutch type:
-
friction plate
-
rubber track size:
-
180*72*38
-
Rotary tillage device type:
-
Horizontal rotary cultivator
-
Maximum working width of rotary tillage:
-
1260mm
-
Maximum working width of ditching device:
-
420mm
-
operation:
-
Driving on foot/Remote control to drive
Quick Details
-
Brand Name:
-
ICLES
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2021
-
Engine Brand:
-
China famous brand
-
Weight:
-
850 KG
-
Product name:
-
36hp orchard remote control small mini crawler tractor garden
-
Overall dimension:
-
1950X900X900mm
-
Engine power:
-
23. 53KW/2200RPM
-
Engine transmission mode:
-
Belt transmission
-
Main clutch type:
-
friction plate
-
rubber track size:
-
180*72*38
-
Rotary tillage device type:
-
Horizontal rotary cultivator
-
Maximum working width of rotary tillage:
-
1260mm
-
Maximum working width of ditching device:
-
420mm
-
operation:
-
Driving on foot/Remote control to drive

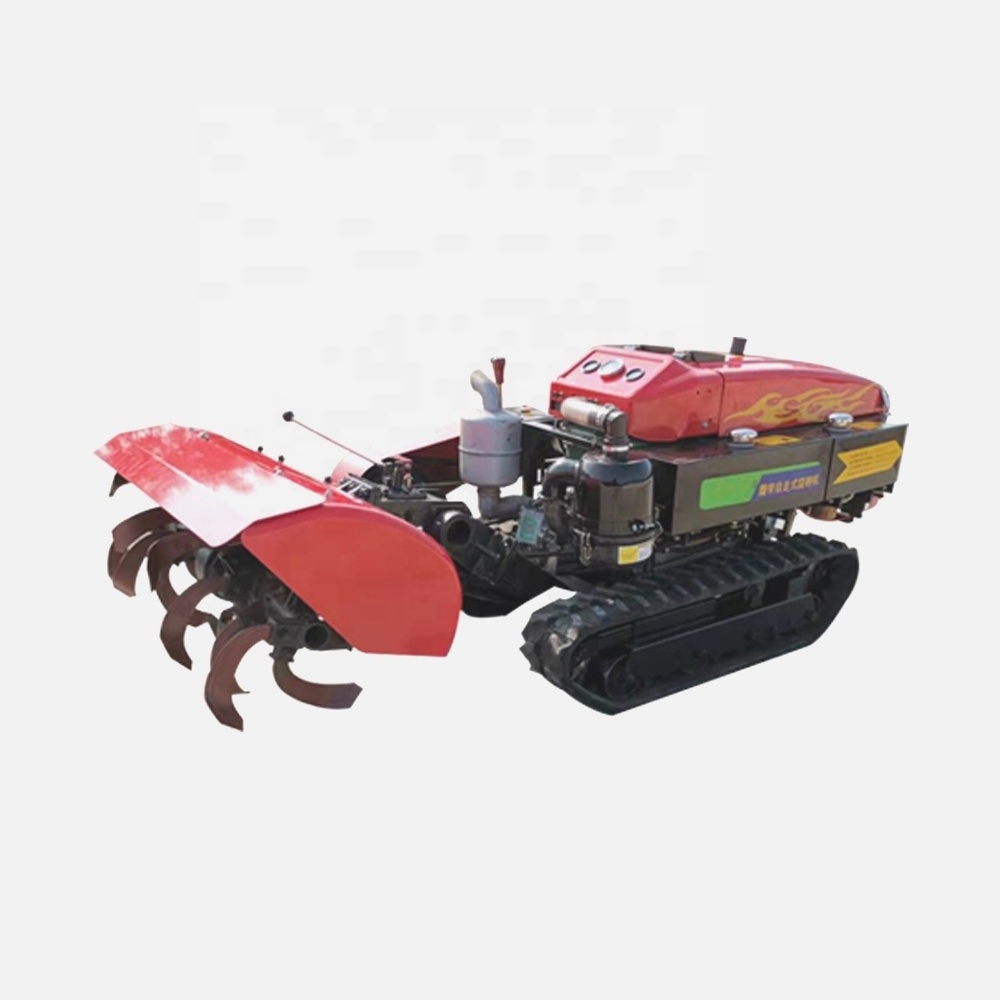

36hp orchard remote control small mini crawler tractor garden management machine with rotary tiller and lawn mower
36hp orchard remote control small mini crawler tractor garden management machine with rotary tiller and lawn mower
|
Model |
/ |
ICLES35 crawler tractor |
|
Overall dimensions |
mm |
1950X900X900 |
|
Engine power |
kW |
23. 53 |
|
rpm |
r/min |
2200 |
|
Engine transmission mode |
/ |
Belt transmission |
|
Main clutch type |
/ | |
|
Main clutch condition |
/ |
close |
|
rubber track size |
mm |
180*72* 38X2 |
|
R ubber track distance |
/ |
720 |
|
Rotary tillage device tyoe |
/ |
Horizontal rotary cultivator |
|
Maximum working width of rotary tillage |
mm |
1260 |
|
Ditching device type |
/ |
V-shaped spiral knife |
|
Maximum working width of ditching device |
mm |
420 |
|
Fertilizer applicator type |
/ |
Baffle type manure drain tank |
|
operation |
/ |
Driving on foot/Remote control to drive |
|
S hipment |
10 units/40HQ container |
|
|
Standard configuration (5 kinds farm tools for free) |
||
|
Rotary tillage |
width of rototilling is 90 cm and the retaining plate is 1 meter. Rototilling depth 0-25cm (with special requirements can reach 1.2 m tools plus, the length of depth up to about 30CM. |
|
|
weeding |
Weeding Width 90 cm, scraping the ground weeding. |
|
|
backfill |
Harvest Width 90 cm. |
|
|
Ditches |
Trench width 20-40CM, depth 0-40CM, 600m per hour. |
|
|
plow |
width of the shovel surface is 1.2 cm and the height is 30 cm |
|
multifunction usage of 36hp orchard remote control small mini crawler tractor garden management machine with rotary tiller and lawn mower
various attachment for 36hp orchard remote control small mini crawler tractor garden management machine with rotary tiller and lawn mower
Features of 36hp orchard remote control small mini crawler tractor garden management machine with rotary tiller and lawn mower
1. famous brand diesel engine, energy conservation and environmental protection;
2. The single chip, dry type, single main clutch, flexible manipulation of light;
3. A three-stage automatic gearbox, realize without soil under the condition of operation, reasonable matching gear, economical, convenient and reliable control;
4. Welding the main frame and the vehicle frame, high strength, suitable for light load plough homework;
5. High driving wheel, triangle arrangement to gap is high, suitable for paddy field;
6. Type of luggage frame, balance the pallet, roller life is long, the machine good riding comfort, small vibration;
7. Rubber crawler walking system, suitable for all the surface road;
8. Class II suspension system, I break in pieces the grave, can be equipped with rotary tiller and other implements;
9. The optional plow, can undertake light load bulldozing homework; 10. Elegant appearance, quality first-class, can use.
