Quick Details
-
Brand Name:
-
YIPU
-
Use:
-
FTTH
-
Warranty Time:
-
3
-
Product Name:
-
fiber distribution box
-
Application:
-
FTTH
-
Material::
-
PP+Fiberglass
-
Level of protection::
-
IP68
-
Product size::
-
388*242*128mm
-
Cores::
-
16/24/288 cores
-
Net weight::
-
5 kg
-
Suitable cable diameter::
-
2*3mm, 2*5mm,6mm
-
Working Temperature::
-
-40 to +85℃
-
Splitter Allowed:
-
Yes
Quick Details
-
Type:
-
Fiber optic terminal box
-
Model Number:
-
FTB-16C-1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YIPU
-
Use:
-
FTTH
-
Warranty Time:
-
3
-
Product Name:
-
fiber distribution box
-
Application:
-
FTTH
-
Material::
-
PP+Fiberglass
-
Level of protection::
-
IP68
-
Product size::
-
388*242*128mm
-
Cores::
-
16/24/288 cores
-
Net weight::
-
5 kg
-
Suitable cable diameter::
-
2*3mm, 2*5mm,6mm
-
Working Temperature::
-
-40 to +85℃
-
Splitter Allowed:
-
Yes

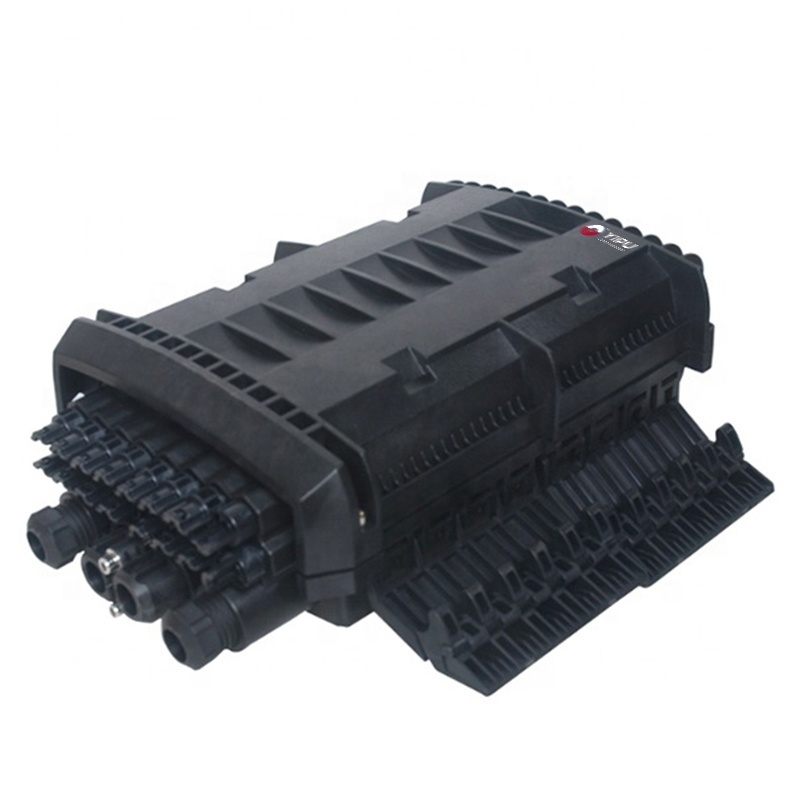

FTTH 16Core Fiber Optical Distribution Box NAP 16Port 16F FDB FDP IP68 Waterproof Termination Point Ningbo Factory Latin America
1 Overview
YIPU Model No. FTB-16C-1 can connect the drop cable with feeder cable as the FDB 16port fiber optic distribution box in the FTTx network, which is cable to meet at least 16 users requirements. The fiber box can help fiber cable splicing, splitting, storage, and termination management with suitable space in a solid protection enclosure box. Most importantly, the distribution box has good waterproof performance, reaches Protection level IP68, acted as an FDP fiber optical 16core terminal point for fiber home access. Direct sale from Chinese factory with good price.
2 Application
Fiber FTTH access network.
Telecommunication FDB Networks
Optical CATV Networks
Data communications FDP Networks
Local Aera NAP Joint Networks
3 Features
3.1 Fiber distribution box is made of high-quality engineering plastic with good strength
3.2 With a safe special-shaped lock, the box can be opened easily and has good waterproof performance, suitable for indoor and ODB, ODP, NAP, FDB, FDP outdoor nature environments
3.3 With the independent 16F rubber sealing plug for drop cable, better waterproof performance
3.4 With the independent design, the outdoor fiber optic distribution box can be installed and maintained easily, the fusion and termination are completely separated, fiber optic splicing and distribution won't be disturbed by each other
3.5 The drop leaf can be installed 2 pcs of 1*8 tube splitter for 16C termination
Specifications:
|
Model |
FTB-16C-1/FTB-16C-3 |
FTB-24H-1 |
FTB-144A-1 |
|
Adapter |
16pcs of SC |
16pcs of SC |
NA |
|
Cable Ports |
1 oval uncut port |
1 oval uncut port |
1 oval uncut port 6 round ports |
|
Applicable Cable Diamension |
10~17.5mm |
10~17.5mm |
10~17.5mm 8~17.5mm |
|
Drop Cable Ports |
16 ports |
24 ports |
NA |
|
Applicable Cable Diameter |
2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable and 4mm cable or 7mm cable |
||
|
Dimension |
380*243*130mm |
380*243*150mm |
380*243*130mm |
|
Material |
modified polymer plastic |
||
|
Sealing Structure |
mechanical sealing |
||
|
Color |
black |
||
|
Maximum Splicing Capacity |
48 fibers (4 trays, 12 fibers/tray) |
48 fibers (4 trays, 12 fibers/tray) |
144 fibers |
|
Applicable Splitter |
1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters |
1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters |
NA |
|
Sealing |
IP68 |
||
|
Impact Test |
IK10 |
||
|
Pull Force |
100N |
||
|
Midspan Entry |
Yes |
||
|
Storage (Tube/Micro Cable) |
Yes |
||
|
Net Weight |
4kg |
||
|
Gross Weight |
5kg |
||
|
Packing |
540*410*375mm (4pcs per carton) |
||
