High quality raw materials can improve the strength and durability of welded wire mesh.
Tiedi Metal chooses high quality low carbon steel wire, which are very strong and toughness. Each batch of TIEDI raw materials is subject to tensile strength test, which ensures that our products maintain the high level in the metal materials industry.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TIEDI
-
Model Number:
-
TD-DH10027
-
Wire Gauge:
-
0.4-4.0mm
-
Surface treatment:
-
Hot Dipped Galvanzied or Electro Galvanized
-
Wire gauge:
-
BWG27-8
-
Width:
-
0.4-2.5m
-
Length:
-
5-50m or customized
-
Aperture:
-
1/4" - 4''
-
Certification:
-
ISO9001:2008
-
Keyword:
-
Welded Wire Mesh
-
Feature:
-
Corrosion resistance, oxidation resistance. rust prevention
-
Size:
-
Customer Size
Quick Details
-
Material:
-
Low carbon steel wire, Galvanized Steel Wire
-
Type:
-
Welded Mesh
-
Application:
-
Protecting Mesh, Farm Fence, construction, Filtering, cage
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TIEDI
-
Model Number:
-
TD-DH10027
-
Wire Gauge:
-
0.4-4.0mm
-
Surface treatment:
-
Hot Dipped Galvanzied or Electro Galvanized
-
Wire gauge:
-
BWG27-8
-
Width:
-
0.4-2.5m
-
Length:
-
5-50m or customized
-
Aperture:
-
1/4" - 4''
-
Certification:
-
ISO9001:2008
-
Keyword:
-
Welded Wire Mesh
-
Feature:
-
Corrosion resistance, oxidation resistance. rust prevention
-
Size:
-
Customer Size

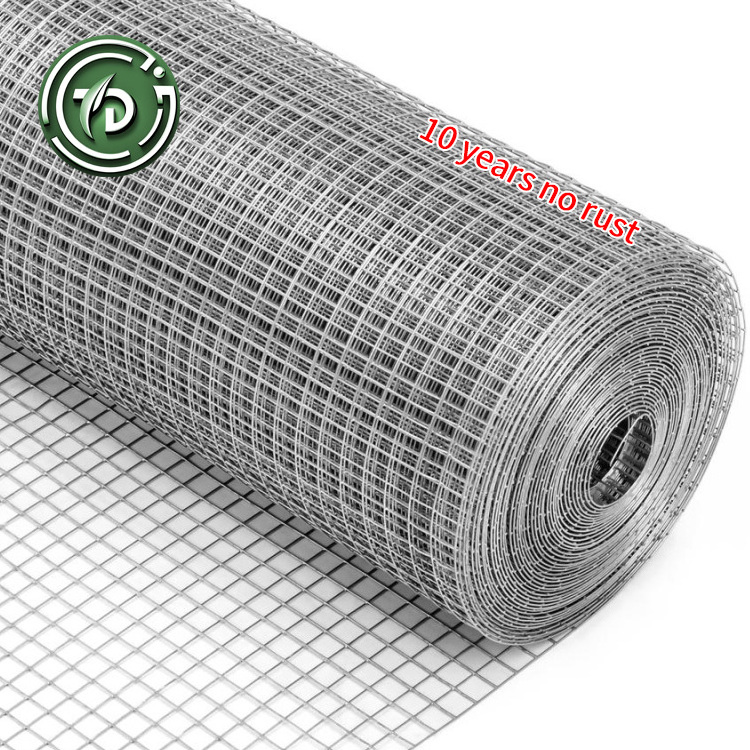

Welded wire mesh
Welded wire mesh
is welded with low carbon steel wire, galvanized wire,then passivated and plasticized by electro galvanized, hot dipped galvanized, etc. Achieve smooth surface, uniform mesh, firm solder joints, good local machining performance, stability, good weather resistance and good corrosion resistance.
There are several types of welded wire mesh which can be categorized according to their processing methods,include hot dipped galvanized after welded,hot dipped galvanized before welded,electro galvanized after welded,electro galvanized before welded.
The welded wire mesh can be also divided into
welded wire mesh rolls
and
welded wire mesh panels
.
Details Images
Surface Treatment Comparison
|
Type
|
|
Electro-Galvanized Before Welded
|
Electro-Galvanized
After Welded
|
Hot Dipped Galvanized
After Welded
|
|
|
Zinc
|
|
10-20g/Sqm
|
20-30g/Sqm
|
Over 200g/Sqm
|
|
|
Price
|
|
Lowest
|
Lower
|
High
|
|
|
Performance
|
|
Common
|
Middle
|
Best
|
|
Product Specifications
|
Specification of Welded Wire Mesh
|
|
|
|
|
||||
|
Opening
|
|
Wire Diameter
|
|
|
||||
|
In inch
|
In metric unit(mm)
|
BWG
|
MM
|
|
||||
|
1/4" x 1/4"
|
6.4 x 6.4mm
|
BWG24-22
|
0.56-0.71mm
|
|
||||
|
3/8" x 3/8"
|
10.6x 10.6mm
|
BWG27-18
|
0.40-1.24mm
|
|
||||
|
1/2" x 1/2"
|
12.7 x 12.7mm
|
BWG27-16
|
0.40-1.65mm
|
|
||||
|
5/8" x 5/8"
|
16x 16mm
|
BWG27-18
|
0.40-1.24mm
|
|
||||
|
3/4" x 3/4"
|
19.1 x 19.1mm
|
BWG27-16
|
0.40-1.65mm
|
|
||||
|
1" x 1"
|
25.4x 25.4mm
|
BWG22-14
|
0.71-2.10mm
|
|
||||
|
1" x 1/2"
|
25.4x 12.7mm
|
BWG23-16
|
0.63-1.65mm
|
|
||||
|
1" x 2"
|
25.4 x 50.8mm
|
BWG18-14
|
1.24-2.10mm
|
|
||||
|
2" x 2"
|
50.8 x 50.8mm
|
BWG18-12
|
1.24-2.76mm
|
|
||||
|
2” x 4"
|
50.8 x 101.6mm
|
BWG18-10
|
1.24-3.40mm
|
|
||||
|
Roll Width: 0.4m to 2.5m.
|
|
|
|
|
||||
|
Roll Length: 15m,18m,25m,30m,etc.
|
|
|
|
|
||||
|
|
|
|
||||||
Product Advantages
High quality raw materials
Advanced equipment
Tiedi Metal uses the
specially improved
welding machines to ensure opening uniform, welding firmness and flatness. And it not only can improve production efficiency to ensure delivery time of your order, but also reduce production cost to enhance your
market competitiveness.
Precise control of welding parameters
During the welding process, strictly control welding parameters such as welding current, voltage, speed, pressure, etc.
Ensure weld quality and consistency for each solder joint, avoiding defects or fluctuations in quality.
And evaluate the strength and reliability of the product through methods such as tensile test, bending test and fracture test.
Regular maintenance of electrodes
We choose appropriate electrodes with good conductivity, thermal conductivity, wear resistance, and stability, and regularly sand down the notches or grooves generated during work.
This can improve welding quality, reduce welding defects, and improve production efficiency.
Increase employee training
Train production workers to ensure they possess competent operational skills and quality awareness， Deal with the problems
or defects found in a timely manner.
Applications
It can be suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
Chicken coop fence
Compost bin
Plastering mesh
Outdoor fence
Trees guards
Packing&Shipping
Packing
1, Moisture resistance paper.
2, Stretch plastic film.
3, Shrink plastic film.
4, In bulk or on pallets or in wooden box.
Shipping
We will look for a professional transportation agent to deliver the products, so we are capable of delivery products to
most ports all over the world.
