Quick Details
-
Type:
-
DC inverter heat pump
-
Storage / Tankless:
-
instantaneous heater
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FOLANSI
-
Model Number:
-
FAD-05(18KW)
-
Function:
-
House Heating Cooling + DHW
-
Refrigerant:
-
R32/R410a
-
Heat exchanger:
-
Plate Heat Exchanger
-
Compressor:
-
Mitsubishl* DC Inverter Twin Rotary
-
Power supply:
-
220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz))
-
Heating capacity:
-
19kw-39kw
-
Working Ambient Temperature:
-
Minus 20C-45C
-
Max Hot Water Temperature:
-
60 Degree
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Power Source:
-
Electric
-
Type:
-
DC inverter heat pump
-
Storage / Tankless:
-
instantaneous heater
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FOLANSI
-
Model Number:
-
FAD-05(18KW)
-
Function:
-
House Heating Cooling + DHW
-
Refrigerant:
-
R32/R410a
-
Heat exchanger:
-
Plate Heat Exchanger
-
Compressor:
-
Mitsubishl* DC Inverter Twin Rotary
-
Power supply:
-
220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz))
-
Heating capacity:
-
19kw-39kw
-
Working Ambient Temperature:
-
Minus 20C-45C
-
Max Hot Water Temperature:
-
60 Degree
|

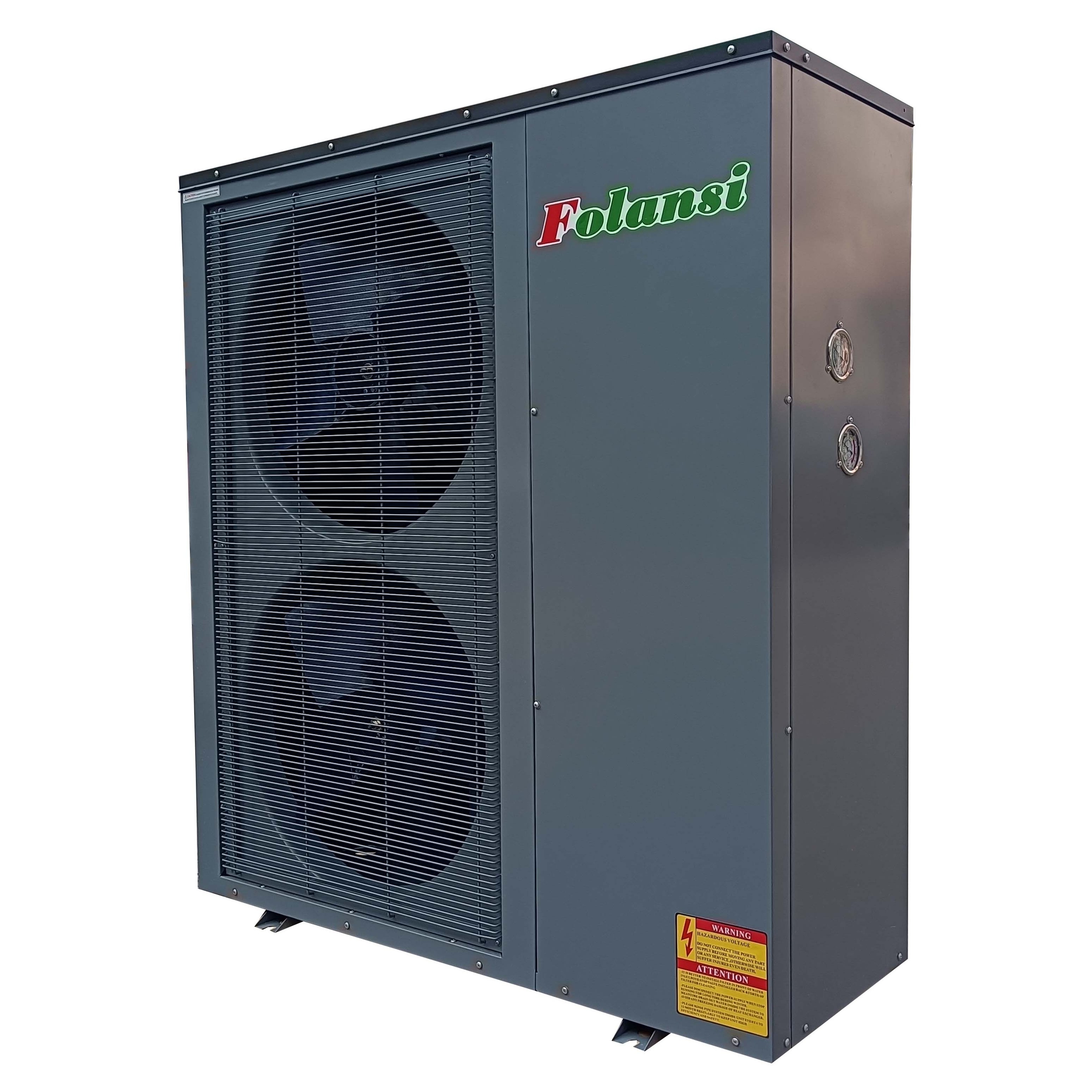

DC inverter air source heat pump (60degree outlet) |
|
|
Model |
FAD-05 |
|
Power supply |
220V/380V/50Hz |
|
Max. heating capacity (A7/W35) |
18kW |
|
Min. heating capacity (A7/W35) |
6.5kW |
|
Rated heating capacity (A7/W35) |
15.8 kW |
|
COP |
2.9~4.5 |
|
Max. cooling capacity (A35/W7) |
12.2kW |
|
Min. cooling capacity (A35/W7) |
2.3kW |
|
Rated Cooling capacity (A35/W7) |
14.5kW |
|
EER |
2.4~3.5 |
|
Controller |
LCD Wire controller |
|
Refrigerant |
R410A |
|
Compressor/Type |
Mitsubishi / Inverter rotary |
|
Compressor quantity |
1 |
|
Condenser |
Plate heat exchanger |
|
Evaporater |
Louvered & hydrophilic fin-tubes |
|
Evaporater layer |
Double |
|
Electronic expansion valve |
SANHUA EEV |
|
Housing |
Galvanized steel& powder |
|
Fan system |
Horizontal fan discharge |
|
Fan speed |
Horizontal fan discharge |
|
Water flow switch |
Built-in |
|
Circulation pump |
Built-in Energy Class A water pump |
|
Water flow (m3/h) |
2.3 |
|
Water connection |
DN 25 |
|
Ingress protection |
IPX4 |
|
Net dimension (mm) - Outdoor unit |
1110*460*1250 |
|
Packing dimension (mm) - Outdoor unit |
1210*530*1385 |
1. Unit working temperature : -25℃ to 43℃
2. Test condition:
* Ambient temp: 7℃/6℃, water inlet/outlet: 30℃/35℃
** Ambient temp: 2℃/1℃, water inlet/outlet: 30℃/35℃
*** Ambient temp: 35℃, water inlet/outlet: 7℃/12℃
**** Ambient temp: 35℃, water inlet/outlet: 18℃/23℃
3. Hot water supply: the volume of hot water heated from 15℃ to 55℃ at ambient temp 15℃.
\
