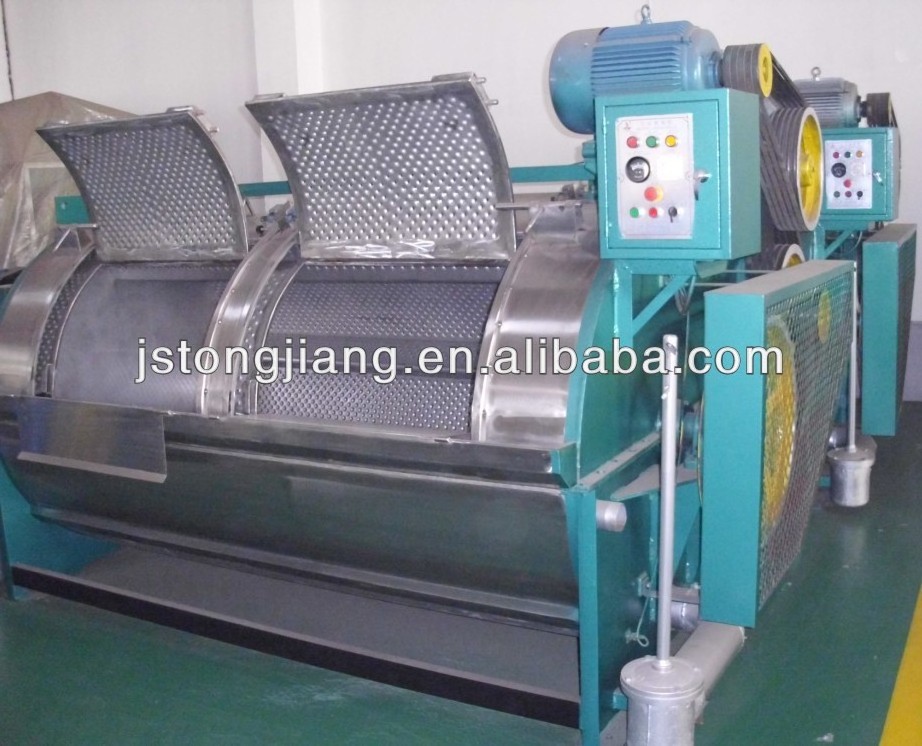

Heavy Duty Industrial Washing Machine For Washing Carpet/ Industrial Carpet Washing Machines

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Tong Yang

Model Number:: GX

Quick Details

Cleaning Process:: Solvent Cleaning

Cleaning Type:: Immersion / Soak

Material:: cloth

Place of Origin:: Jiangsu, China

Brand Name:: Tong Yang

Model Number:: GX

Heavy Duty Industrial Washing Machine For Washing Carpet/ Industrial Carpet Washing Machines:

1,Suitable for laundry, hostel, troop, hospital, hotel, blanching & dyeing factory, large & middle size enterprise and service field to wash various fabrics made of cotton, wool, linen and chemical fibre.

2,The machine adopts horizontal and drum-type structure, low noise, low shock.

3,The cylinder and shell are in stainless steel,smooth surface,good apperance and long life.

4,There are safety lock on both inner drum and outer drum.

5,It is driven by triangle belt which is duable and moves smooth with little shock.

6. Its capacity is from 15kg to 400kg.

7. CE and ISO9001 certificates .

Specifications:

Type	GX-10	GX-15	GX-20	GX-30	GX-50	GX-70	GX-100	GX-150	GX-200	GX-250	GX-300	GX-400
Max. capacity (Kg)	10	15	20	30	50	70	100	150	200	250	300	400
Drum dimensions (mm)	Φ 480× 600	Φ 540× 680	Φ 600× 700	Φ 660× 800	Φ 800× 980	Φ 950× 1220	Φ 960× 1420	Φ 1060× 1650	Φ 1080× 2000	Φ 1200× 2280	Φ 1300× 2280	Φ 1220× 3360
Speed (r/min)	46	46	42	36	36	34	34	34	32	29	29	29
Power (Kw)	0.55	0.75	0.75	1.1	1.5	2.2	3	4	5.5	7.5	7.5	11
Steam pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Overall dimension(LWH)	1030× 730× 1030mm	1100× 800× 1140mm	1120× 860× 1170mm	1520× 1100× 1300mm	1750× 1200× 1500mm	2050× 1300× 1700mm	2300× 1300× 1800mm	2500× 1400× 1900mm	2900× 1400× 1900mm	3200× 1500× 2100mm	3200× 1600× 2200mm	4350× 1800× 2100mm
Weight (Kg)	200	260	320	375	456	685	785	990	1450	1900	2300	2800
