Quick Details
-
Mounting Type:
-
Screw fixation
-
Description:
-

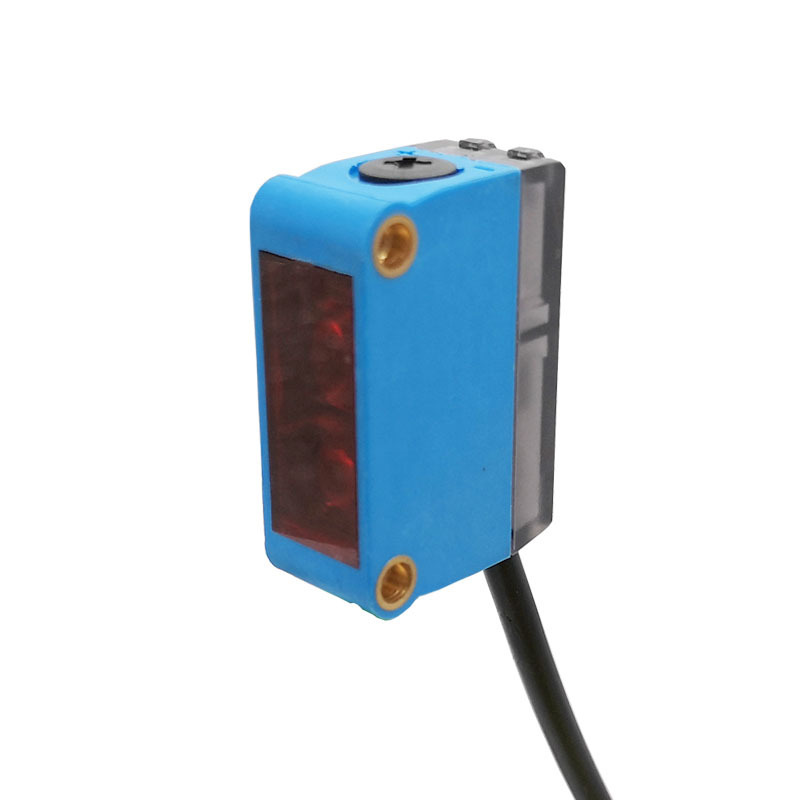

Background suppression photoelectric sensor, Background suppression photoelectric sensor
-
Model Number:
-
PS32V-BD30DPO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DGKJ
-
Theory:
-
Diffuse reflection
-
Output:
-
NPN/PNP NO/NC(Digital Output)
-
Sensing type:
-
Diffuse reflection
-
Light source:
-
Infrared LED(850nm)
-
Sensing Range:
-
5...300mm
-
Voltage - Supply:
-
10...30VDC
-
Dimensions:
-
32*21*12mm
-
Lens:
-
PMMA
-
Housing material:
-
PBT
-
Protection class:
-
IP65
-
Electrical connection:
-
2m PVC Cable
Quick Details
-
Usage:
-
Position Detection
-
Series:
-
PS32V Series
-
Features:
-
background suppression, background suppression
-
Mounting Type:
-
Screw fixation
-
Description:
-
Background suppression photoelectric sensor, Background suppression photoelectric sensor
-
Model Number:
-
PS32V-BD30DPO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DGKJ
-
Theory:
-
Diffuse reflection
-
Output:
-
NPN/PNP NO/NC(Digital Output)
-
Sensing type:
-
Diffuse reflection
-
Light source:
-
Infrared LED(850nm)
-
Sensing Range:
-
5...300mm
-
Voltage - Supply:
-
10...30VDC
-
Dimensions:
-
32*21*12mm
-
Lens:
-
PMMA
-
Housing material:
-
PBT
-
Protection class:
-
IP65
-
Electrical connection:
-
2m PVC Cable
Product Description
Specification
|
Part number
|
|
|
|
NPN NO
|
PS32V-BD30DNO
|
|
|
NPN NC
|
PS32V-BD30DNC
|
|
|
PNP NO
|
PS32V-BD30DPO
|
|
|
PNP NC
|
PS32V-BD30DPC
|
|
|
Technical specifications
|
|
|
|
Sensing type
|
Diffuse Reflection
|
|
|
Sensing range
|
5-300mm
|
|
|
Dimensions
|
32*21*12mm
|
|
|
Output
|
NPN/PNP NO/NC(Depends on above part number)
|
|
|
Supply voltage
|
10...30 VDC
|
|
|
Standard target
|
White paper 100*100mm
|
|
|
Light source
|
Infrared LED(850nm)
|
|
|
Response time
|
<1ms
|
|
|
Current consumption
|
<20mA
|
|
|
Load current
|
≤100mA
|
|
|
Residual voltage
|
≤2V(Load current<100mA)
|
|
|
Ambient illumination
|
Sunlight:10000Lx Lamplight:3000Lx
|
|
|
Protection circuit
|
Short-circuit, overload, reverse polarity
|
|
|
Indicator
|
Red LED
|
|
|
Ambient temperature
|
-20ºC...55 ºC
|
|
|
Ambient humidity
|
35...85%RH
|
|
|
Switching frequency(F)
|
500Hz
|
|
|
Protection degree
|
IP65
|
|
|
Connection type
|
2m PVC cable
|
|
|
Lens
|
PMMA
|
|
|
Housing material
|
PBT
|
|
