Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENWEI
-
Model Number:
-
JK
-
Max. static tension of rope:
-
5KN-50KN
-
Lifting speed:
-
9m/min to 22m/min; customized
-
Wire rope diameter:
-
7.7mm, 9.3mm, 12.5mm, 19.5mm; customized
-
Drum size:
-
165*350; 1273*594; customized
-
Motor:
-
5kw, 7.5kw, 11kw, 15kw, 18kw; customized
Quick Details
-
Power:
-
710W, 1400W, 1200W
-
Application:
-
shaft well; underground mining
-
Voltage:
-
380V/660V/customized
-
Warranty:
-
1 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENWEI
-
Model Number:
-
JK
-
Max. static tension of rope:
-
5KN-50KN
-
Lifting speed:
-
9m/min to 22m/min; customized
-
Wire rope diameter:
-
7.7mm, 9.3mm, 12.5mm, 19.5mm; customized
-
Drum size:
-
165*350; 1273*594; customized
-
Motor:
-
5kw, 7.5kw, 11kw, 15kw, 18kw; customized
Products Description

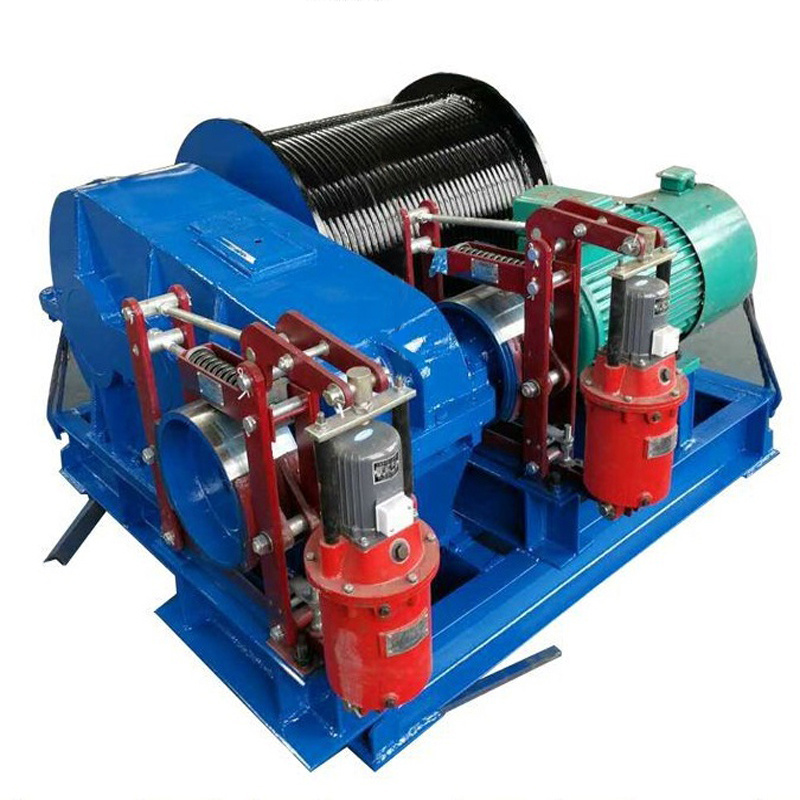

Hoist, a light and small lifting device that uses a drum to wind a wire rope or chain to lift or pull heavy objects, also known as a winch.
The hoist can lift heavy objects vertically, horizontally or obliquely. The hoist is divided into three types: manual hoist, electric hoist and hydraulic hoist. Now mainly electric hoist. It can be used alone or as a component in machinery such as lifting, road building and mine hoisting. It is widely used because of its simple operation, large amount of rope winding and convenient displacement.
It is mainly used for material lifting or flat dragging in construction, water conservancy projects, forestry, mines, docks, etc.
Product Parameters
|
JK hoist / winch
|
|
|
|
|
|
|
||||||
|
Model
|
|
0.5T
|
1T
|
2T
|
3T
|
5T
|
||||||
|
Rated lifting weight (T)
|
|
0.5
|
1
|
2
|
3
|
5
|
||||||
|
Rated pull force of steel wire rope (KN)
|
|
5
|
10
|
20
|
30
|
50
|
||||||
|
transmission ratio (I)
|
|
36.6
|
40.59
|
54.9
|
88.6
|
119.34
|
||||||
|
|
diameter
(mm)
|
165*350
|
165*400
|
219*535
|
325*640
|
1273*594
|
||||||
|
|
wire rope capacity (m)
|
50(100)
|
70(160)
|
80(180)
|
80(200)
|
100(150)
|
||||||
|
Steel wire rope
|
specification
|
6*19
|
6*19
|
6*19
|
6*19
|
6*19
|
||||||
|
|
diameter (mm)
|
7.7
|
9.3
|
12.5
|
19.5
|
15.5
|
||||||
|
|
lifting speed (m/min)
|
22
|
22
|
22
|
9
|
16
|
||||||
|
Machine weight (kg)
|
|
120
|
170
|
320
|
400
|
740
|
||||||
