Cleaning Width 270mm 350mm Portable Ship Deck Rust Removal Shot Blast Machine
Product Description

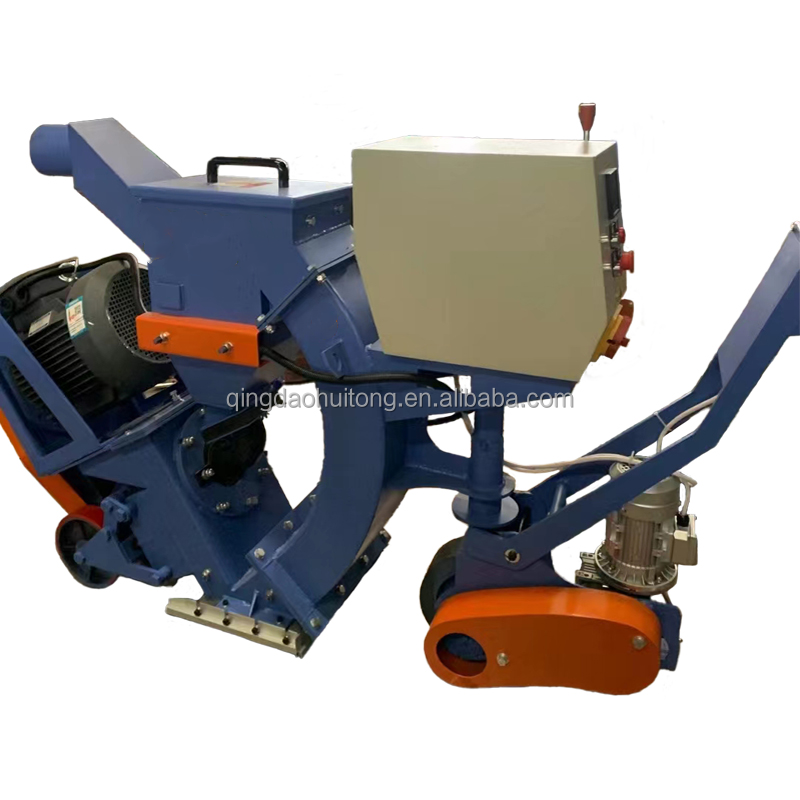

Portable shot blasting machine is also called horizontal type or mobile type shot blasting machine,
it is a surface preparation equipment used to mechanically remove various coatings, contaminants and impurities from concrete floor, or any other hard floor surface, or horizontal steel plate. It is commonly used in applications such as preparing concrete surfaces for further processing or resurfacing, removing old paint or epoxy coatings, and creating textured surfaces to improve adhesion of new coatings or toppings.
Working principle;
The abrasive material stored in the lower part of the separation tank by the feeding tube into the shot blasting parts, blasting wheel at high speed rotation by blasting motor, the abrasive is accelarater to 80m/s clean the surface,high-speed energy pills material impact work surface, Under negative pressure pills materials and dust back to the dust back to the dust separation box, where they completed the separation of pill material and dust and impurities, good pill material into the shot blasting parts continue to recycle use, dust and impurities are filtered slip to closed set dust collection box waiting to be dropped.
Our HT series floor shot blasting machine is complete machine, including main machine, dust collector, connect main machine and dust collector hose and electric wire, hose support trolley , sand collecting trolley, etc.
Product Application;
Airport runway marking line removal
Floor engineering base surface treatment
Highway project conservation
Bridge nursing
Horizontal steel plate surface treatment and rust remove
Hull surface maintenance rust removing
Other surface treatments conservation
Floor engineering base surface treatment
Highway project conservation
Bridge nursing
Horizontal steel plate surface treatment and rust remove
Hull surface maintenance rust removing
Other surface treatments conservation
on concrete on epoxy floor on steel
Product details
Successful project;
Technical Parameters
|
Item/ Model
|
HT270
|
HT550
|
HT850
|
|
|
|
Working width
|
270mm
|
550mm
|
850mm
|
|
|
|
Working efficiency
on concrete
|
≥150m2/h
|
≥300m2/h
|
≥450m2/h
|
|
|
|
Working efficiency
on steel
|
≥40m2/h
|
≥80m2/h
|
≥120m2/h
|
|
|
|
Main motor power
|
11kw
|
2*11kw
|
2*15kw
|
|
|
|
Total power
|
18kw
|
30kw
|
39kw
|
|
|
|
Walking speed
|
0.5~25m/min
|
0.5~25m/min
|
0.5~25m/min
|
|
|
|
Project consumption
|
<100g/m2
|
<100g/m2
|
<100g/m2
|
|
|
