*Highest conversion efficiency of 21.5%
*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*MBB cell technology.
*Maximum system voltage:1500V *Junction box:IP68
*Frame:Aluminum alloy
*Cell amount:72*2pcs
Application level:Class A
*12Years product warranty,25 Years power output guarantee.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground/Roof Mounting
-
Certificate:
-
TUV CE ISO, TUV/CE/ISO14001/ISO1901
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Lovsun
-
Model Number:
-
HPS30-150HY
-
Load Power (W):
-
30KW-150KW
-
Output Voltage (V):
-
EU: 380-400V US: 110/120/208/240/277/480V
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
24H
-
Product name:
-
solar energy system
-
Solar panel:
-
Monocrystalline
-
Inverter Type:
-
Atess hybrid inverter
-
Solar Battery:
-
GEL/LiFepo4 Battery
-
Montiring:
-
Wifi/GPRS
-
Keyword:
-
Solar Panel Power System
Quick Details
-
Application:
-
Commercial
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground/Roof Mounting
-
Certificate:
-
TUV CE ISO, TUV/CE/ISO14001/ISO1901
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Lovsun
-
Model Number:
-
HPS30-150HY
-
Load Power (W):
-
30KW-150KW
-
Output Voltage (V):
-
EU: 380-400V US: 110/120/208/240/277/480V
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
24H
-
Product name:
-
solar energy system
-
Solar panel:
-
Monocrystalline
-
Inverter Type:
-
Atess hybrid inverter
-
Solar Battery:
-
GEL/LiFepo4 Battery
-
Montiring:
-
Wifi/GPRS
-
Keyword:
-
Solar Panel Power System
Product Feature
Products Details
Half Cut Solar Panel
* All in one hybrid inverter
*Peak-shaving, back-up, use the system however you want it
*Scalable design:Quadruple capacity by paralleling 4 units
*One inverter fails in parallel system, the other(s) takes over seamlessly. *Touchscreen LCD
*Uninterruptable power supply guaranteed
*Supports remote control of DG
*Easy installation and maintenance
*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 6000 cycles *Outdoor battery cabinet with IP54 protection level, indoor battery rack with IP20 protection
level,inbuild lithium-ion battery and BMS.
*Standard 5Years Warranty.
*Multi-function and high performance *Local webserver for easy configuration *Support external sensor to realize zero-export
function.
*Datalogger for overall system monitoring, collect operation data from different units via Modbus RS485 and communicate with the
server via internet
PV Combiner Box
*Lightning protection
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface
*Input fuse for over current protection *PV combiner box is an accessory for multiple PV string connection, it is with smart
controller inbuilt for monitoring, along with comprehensive protections including fuse and SPD.
PV Mounting System
*Customized for roof&ground etc. *Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
*Compatible with all type solar panel
*Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty
Solar Accessories
*Black/Red color 4/6/10 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15 Years Warranty
*Universal compatible PV connectors
*With CE TUV certificate
*15 Years Warranty
|

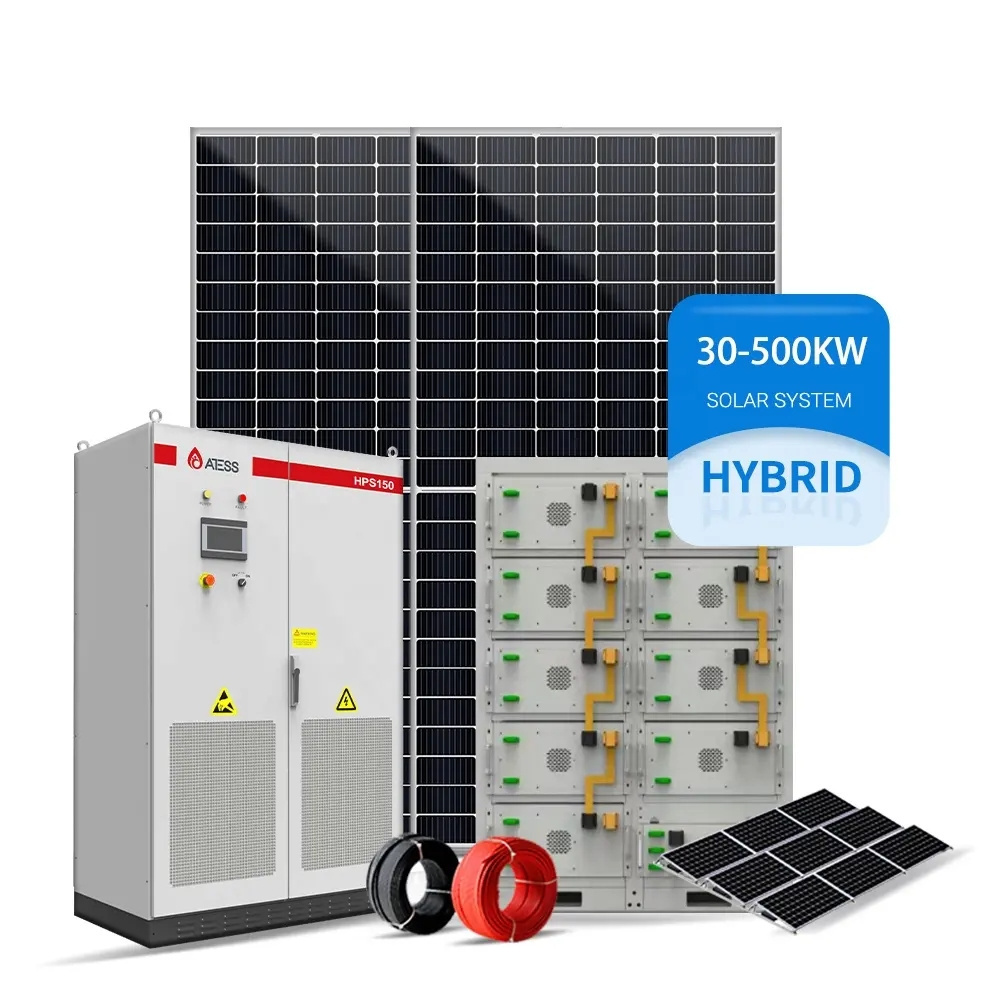

Complete Set Hybrid Solar System Configuration
|
|
|
|
|||
|
System Model
|
LS30KW-HY
|
LS50KW-HY
|
LS100KW-HY
|
|||
|
Rated Capacity
|
30000W
|
50000W
|
100000W
|
|||
|
Half Cut 550W Solar Panel
|
55pieces
|
96pieces
|
195pieces
|
|||
|
Hybrid Inverter
|
HPS 30
|
HPS 50
|
HPS 100
|
|||
|
PV Combiner Box
|
1piece,5 input 1output
|
1piece,8 input 1output
|
1piece,15 input 1output
|
|||
|
LFP Battery Bank
|
76.8KWH
|
107.52KWH
|
230.4KWH
|
|||
|
PV Cables
|
1000m
|
1600m
|
3000m
|
|||
|
MC4 Connector
|
20pairs
|
50pairs
|
100pairs
|
|||
|
MC4 Connector
|
Customized based on your installation site
|
|
|
|||
|
System Model
|
LS120KW-HY
|
LS150KW-HY
|
|
|
Rated Capacity
|
120000W
|
150000W
|
|
|
Half Cut 550W Solar Panel
|
234pieces
|
280pieces
|
|
|
Hybrid Inverter
|
HPS 120
|
HPS 150
|
|
|
PV Combiner Box
|
1piece,18 input 1output
|
1piece,20input 1output
|
|
|
LFP Battery Bank
|
322.56KWH
|
430.08KWH
|
|
|
PV Cables
|
3600m
|
4000m
|
|
|
MC4 Connector
|
120pairs
|
140pairs
|
|
|
Mounting System
|
Customized based on your installation site
|
|
|
