Quick Details
-
Memory Type:
-
DDR3L
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Baytrail-I/D/M
-
FSB / HT:
-
DDR3L 1066/1333MHz
-
Brand Name:
-
OEM/ODM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
J1800/J1900/E3845
-
Memory:
-
1*DDR3 SODIMM 204 Socket ram slot
-
Storage:
-
Support 32-1TB SSD or 500GB-2TB HDD
-
Network:
-
6*Intel 1000M LAN
-
size:
-
120*120mm
-
BIOS:
-
EFI BIOS
-
Operating System:
-
WIN 7/10/LIUNX
-
Power supply:
-
DC12V/5A
-
Service::
-
OEM,ODM
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
Desktop
-
Form Factor:
-
nano
-
Memory Type:
-
DDR3L
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
Baytrail-I/D/M
-
FSB / HT:
-
DDR3L 1066/1333MHz
-
Brand Name:
-
OEM/ODM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
J1800/J1900/E3845
-
Memory:
-
1*DDR3 SODIMM 204 Socket ram slot
-
Storage:
-
Support 32-1TB SSD or 500GB-2TB HDD
-
Network:
-
6*Intel 1000M LAN
-
size:
-
120*120mm
-
BIOS:
-
EFI BIOS
-
Operating System:
-
WIN 7/10/LIUNX
-
Power supply:
-
DC12V/5A
-
Service::
-
OEM,ODM

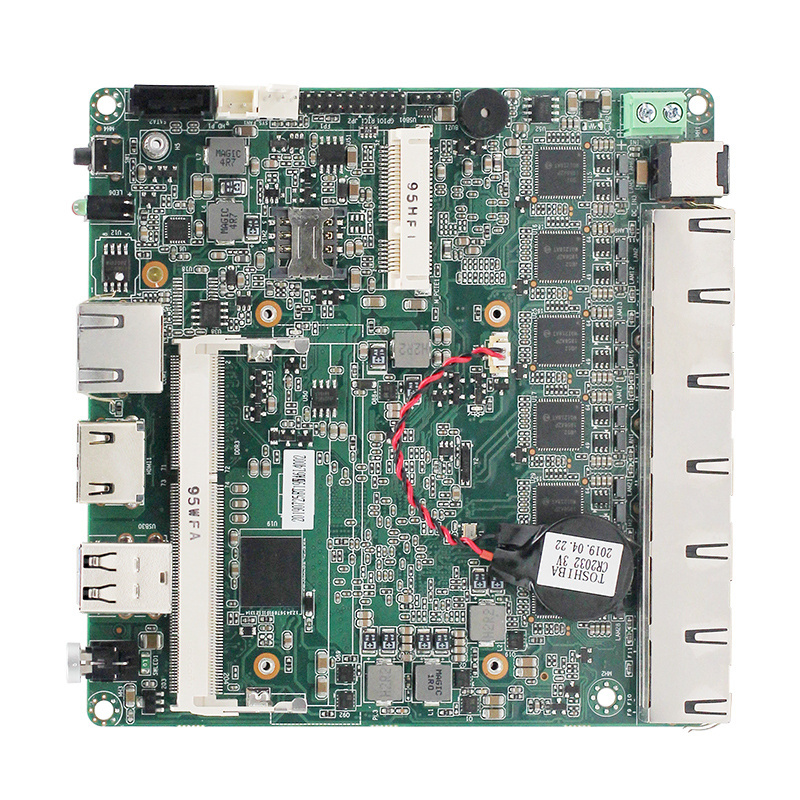

6 lan ports firewall router High Performance mini pc motherboard with J1900 processor support EMMC
Features of Our firewall motherboard
1.Onboard Intel J1900\J1800\E3845\N2900
2. Baytrail-D/I/M serial Processor
3. DDR3 SODIMM 204 Socket ram slot,Max support8G
4.6 *Intel I211AT or I210 Gigabit Ethernet
5. Onboard 32/64/128G EMMMC chipset(optional)
6. Single-input DC power supply, DC12V power supply
Specification of our firewall motherboard
|
Processor |
CPU |
Adopt Baytrail-D/I/M Baytrail-D / I / M processor |
|
CPU package |
BGA |
|
|
Chipset |
Baytrail-D/I/M processor |
|
|
BIOS |
EFI BIOS |
|
|
Memory |
Technology Architecture |
Single channel DDR3L 1066/1333MHz |
|
Capacity |
Max support 8GB DDR3L Ram |
|
|
Ram Socket |
DDR3 SODIMM 204 Socket |
|
|
Video |
Graphics controller |
Intel HD Graphics |
|
HDMI |
HDMI Resolution maximum 1920x1080 |
|
|
I/O port |
Port |
1*HDMI 1*USB3.0 1*USB2.0 6*LAN 1*Quick Power On button with indicator 1*Restart button 1*DC 1*Power Indicator 1*Hard disk indicator |
|
Network |
Controller |
6*Intel I211AT or Intel I210 Gigabit LAN(optional) |
|
Input/Output port |
USB |
2*USB2.0 1*USB3.0 max support +5V/1A |
|
Expansion Bus |
Com port |
1*RJ45 port RS232 or RS485(optional) |
|
Mini-PCle |
1*Mini-PCIe socket,support PCIE and USB Signal equipment |
|
|
Storage |
SATA |
1*standard SATAIII port, Maximum transmission rate 6Gb/s |
|
Power Supply |
M-SATA |
1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 6gb/s |
|
EMMC |
Support 32/64/128G(optional) |
|
|
Power Type |
Single input DC power supply,DC12-19V,+/-5% |
|
|
working environment |
Working temperature |
-20℃ ~ +60℃ |
|
System Support |
Storage temperature |
-40℃ ~ +85℃ |
|
Working humidity |
0% ~ 90% (non-condensing) |
|
|
Storage humidity |
0% ~ 90% (non-condensing) |
|
|
|
Windows7 Windows10 Linux Android |
|
|
Size |
Size |
12*12 cm |
|
Certification |
Weight |
0.5KG |
|
CPU |
CE,ROHS,FCC |
1.Delivery Time: 1 ~ 3 Days for one sample, 25 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box,
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4. 1 years Warranty, the second year and the third year,
we can repair it ,but we will charge for the parts that need to change.
