Quick Details
-
Size:
-
10500*2500*3750mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Fuel Tanker Trailer
-
Suspension:
-
Mechanical Suspension Air Suspension
-
Axle:
-
13 Ton Fuwa Brand
-
Landing Gear:
-
Standard 28Ton
-
Tire:
-
11.00r20 12r22.5 315 385
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Usage:
-
Fuel Transport
-
Brake System:
-
Dual Line Braking System
-
Loading capacity:
-
30T~ 60T
-
Certification:
-
ADR DOT ISO CCC
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
70T
-
Brand Name:
-
LUYI VEHICLE
-
Size:
-
10500*2500*3750mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Fuel Tanker Trailer
-
Suspension:
-
Mechanical Suspension Air Suspension
-
Axle:
-
13 Ton Fuwa Brand
-
Landing Gear:
-
Standard 28Ton
-
Tire:
-
11.00r20 12r22.5 315 385
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Usage:
-
Fuel Transport
-
Brake System:
-
Dual Line Braking System
-
Loading capacity:
-
30T~ 60T
-
Certification:
-
ADR DOT ISO CCC
Products Description

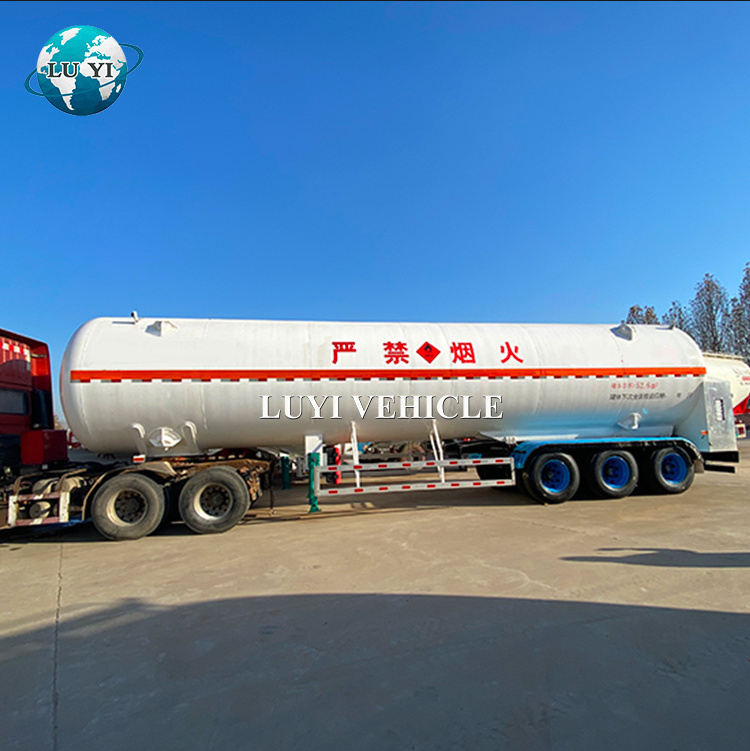

High Quality Lpg Fuel Gas Liquid Lng Trailer Tanker For Sale
We also can produce the tanker trailers for different liquid like fuel, petrol, water,palm oil etc. To make sure the safety, our standard trailers adopt the Bottom Emergency valves. This can help the tankers to prevent oil leakage, when emergency happens. LUYI tanker trailers Major parts and components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.
Product Paramenters
|
Name
|
Luyi tanker semi trailer
|
|
|
Trailer Model
|
Round Shape or Ellipse
|
|
|
Outside Dimensions
|
11000mm-13000mmX2490mmX3950mm/3800mm-3900mm
|
|
|
Tare weight
|
About 8-12.8T
|
|
|
Total Volume
|
25m³-60m³
|
|
|
Material
|
1.Q235B/Q345B carbon steel
2.5XCT4aluminum5454 3.304 stainless steel |
|
|
Tanker Body Material
|
1. 6mm/5mm Q235B/Q345B carbon steel
2. 7mm/6mm 5XCT4 aluminum 5454 3. 5mm/4mm 304 stainless steel |
|
|
Axles
|
13T/16T, FUWA/BPW/HuaJing brand
|
|
|
Axle Number
|
2/3/4/ Axle or multi axle
|
|
|
Main Beam
|
Height: 450mm-520mm, upper plate thickness is 14mm-25mm,
middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel . |
|
|
Tire
|
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional)
|
|
|
King Pin
|
JOST brand 2.0 or 3.5 inch bolts type or Welding type
|
|
|
Support legs
|
JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed )
|
|
|
Rear ladder
|
Dismountable or foldaway
|
|
|
Wheelbase
|
8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm
|
|
|
Spring leaf
|
8/10/12/16 pieces
|
|
|
Manhole Cover
|
2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards
|
|
|
Brake Chamber
|
6 double brake chamber
|
|
|
Electrical System
|
24V, 7core socket, lights according to European standards
|
|
|
Accessory
|
One tooling boxes ,Two spare tire carrier, Two fire extinguisher
|
|
|
Other tools
|
A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual)
|
|
|
Discharge mouth
|
diameter is 280mm
|
|
|
Receptacle
|
7ways (7wire harness)
|
|
|
The Above Information is Standard Spec.If you want get more specific Spec.Please send inquity to us.
|
|
|
