Quick Details
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3700mm x 1700mm x 2300mm
-
Weight:
-
1600 kg
-
Product name:
-
TMR Feed Mixer Machine
-
Application:
-
Poultry Farm
-
Suit for:
-
Cow.sheep.goose.duck.chicken.etc
-
Usage:
-
Cow.sheep.goose.duck.chicken.etc
Quick Details
-
Max. Capacity:
-
1500KG/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Caleb
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3700mm x 1700mm x 2300mm
-
Weight:
-
1600 kg
-
Product name:
-
TMR Feed Mixer Machine
-
Application:
-
Poultry Farm
-
Suit for:
-
Cow.sheep.goose.duck.chicken.etc
-
Usage:
-
Cow.sheep.goose.duck.chicken.etc
Products Description
H
ot Sale

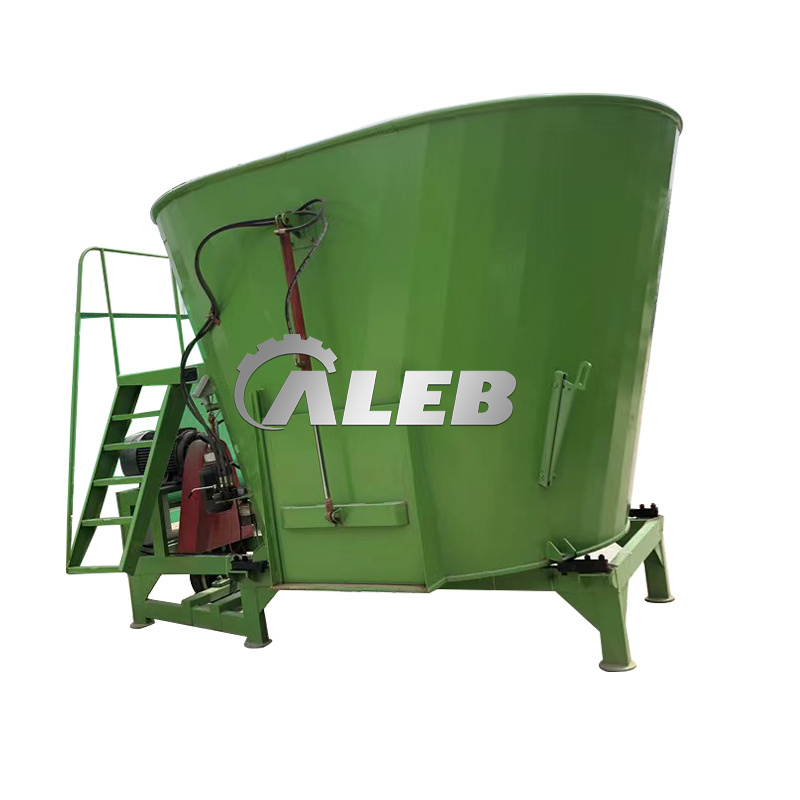

Cattle and Sheep Feed Mixer TMR Feed Mixer
Our feed mixer machine features compact structure, good appearance, stable performance, low noise and no dust. It is a kind of efficient and energy-saving mixing equipment. The machine is widely used in feed, food, chemical industry, chemical fertilizer, medicine and other industrials for mixing powder, granular, flake, block and viscous materials. The mixing process is mild and doesn't destroy the original phsical state of the materials.
Product Paramenters
|
Model
|
9JGW-13
|
9JGE-10
|
9JGW-5
|
|
Overall size(mm)
|
4700*1900*2300
|
4200*1900*2300
|
3700*1900*2300
|
|
Qty of blade(pcs)
|
Moving blade 52
Fixed blade 8 |
Moving blade 42
Fixed blade 6 |
Moving blade 37
Fixed blade 4 |
|
Rotating speed(r/min)
|
12-16
|
12-16
|
12-16
|
|
Weight(kg)
|
2600
|
2100
|
1900
|
|
Capacity of material hopper(m³)
|
13.2
|
10.03
|
5.3
|
|
Matching power(kw)
|
22-30
|
18.5-22
|
15-18.5
|
|
Productuvuty(kg/h)
|
5000-7000
|
3800-6000
|
2000-4000
|
Details Images
1.Made of unique cutting blades with high wear-resistant materials, dragon blade material with high-quality high-alloy steel,thus greatly improving the product's life.
2.The product is flexible and convenient operation, safe and reliable.
3.It can be directly silage and a variety of straw, straw and other fiber-based feed into the mixer chopped, mixed, stirring
speed, each batch of feed cutting mixing time of 30 minutes, according to the different tank volume, each feed The mixer can feed 200-2000 cows per day, which can replace more than 20 workers to reduce the labor intensity and improve the feeding efficiency.
2.The product is flexible and convenient operation, safe and reliable.
3.It can be directly silage and a variety of straw, straw and other fiber-based feed into the mixer chopped, mixed, stirring
speed, each batch of feed cutting mixing time of 30 minutes, according to the different tank volume, each feed The mixer can feed 200-2000 cows per day, which can replace more than 20 workers to reduce the labor intensity and improve the feeding efficiency.
Product packaging
