Quick Details
-
Marketing Type:
-
Hot Product
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
15KWS
-
Key Selling Points:
-
MUFTIFUNCTIONAL
-
Product name:
-
Sticking Paper PVC Laminating Machine
-
Glue:
-
White latex, Solvent glue ,PVAC ,PO ,PU
-
Covering Film:
-
PVC ,Paper ,Veneer,PE
-
Base Profiles:
-
MDF/WPC ,PVC ,Solid wood ,partial board ,Aluminum ,Steel, Marbles
-
Voltage:
-
AS Request
-
Structure size:
-
According to customer requirements
-
Working Speed:
-
3-8m/min(Adjustable speed)
-
Gluing way:
-
Roller Spreading Glue
-
Max.working width:
-
1300mm
-
Max.working height:
-
45mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TC Machinery Electronic
-
Machine Type:
-
LAMINATING MACHINE
-
Marketing Type:
-
Hot Product
-
Weight (KG):
-
2500 KG
-
Power (kW):
-
15KWS
-
Key Selling Points:
-
MUFTIFUNCTIONAL
-
Product name:
-
Sticking Paper PVC Laminating Machine
-
Glue:
-
White latex, Solvent glue ,PVAC ,PO ,PU
-
Covering Film:
-
PVC ,Paper ,Veneer,PE
-
Base Profiles:
-
MDF/WPC ,PVC ,Solid wood ,partial board ,Aluminum ,Steel, Marbles
-
Voltage:
-
AS Request
-
Structure size:
-
According to customer requirements
-
Working Speed:
-
3-8m/min(Adjustable speed)
-
Gluing way:
-
Roller Spreading Glue
-
Max.working width:
-
1300mm
-
Max.working height:
-
45mm
Product Description
|
Overall Dimension
|
4865MM * 3400MM * 1800MM
|
|
Table sizes(inner sizes)
|
L1300xW2500xH60mm OR 1080*2430*60MM
|
|
Negative pressure
|
0.1 Mpa
|
|
Heating tube
|
quartz heating tubes
|
|
Motor
|
2.2kws
|
|
Total power
|
28kw
|
|
Voltage
|
as request
|
|
vacuum pump
|
Germany Bush (made in Germany)
|
|
motor
|
Italy (made in Italy)
|
|
Contactor
|
Siemens( Siemens brand)
|
|
Other electric
|
Chinese big brands
|

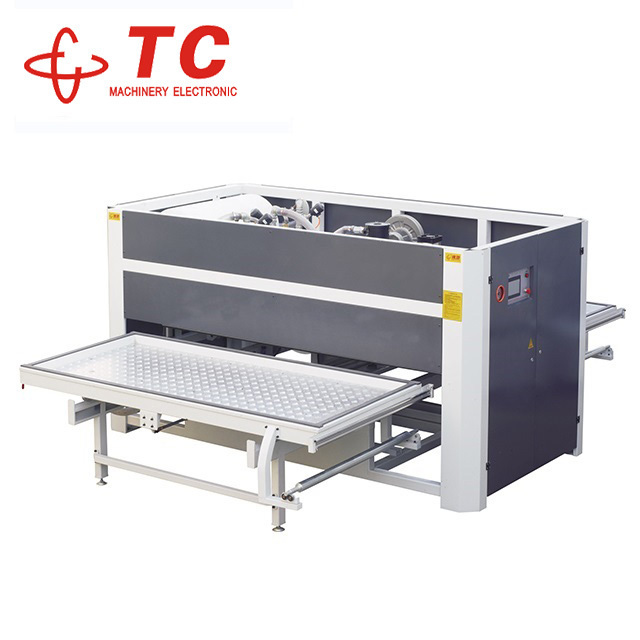

This machine can be used to paste PVC (High gloss PVC) on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes. With a special silicon sheet, it can also work with hot transfer and veneer (real wood).
Features of Vacuum press machine：
1. Adopts automatic digital display technology, the machine features highly automatic, easy operation and reliable.
2. Working platform is made of special steel, which is resistant to high temperature and corruption.
3. Use infrared heating system and imported thermal insulation material, which can ensure even heating and energy saving.
4. Uses top quality vacuum pump, features reliable performance and prompt pumping.
5. Multi-application, PVC film, Wood veneer and hot transfer is available.
Spray glue and give pvc film------manually
Table in and out---automatically
Press pvc film------automatically
Cut and take out the finished products-----manually
Features of Vacuum press machine：
1. Adopts automatic digital display technology, the machine features highly automatic, easy operation and reliable.
2. Working platform is made of special steel, which is resistant to high temperature and corruption.
3. Use infrared heating system and imported thermal insulation material, which can ensure even heating and energy saving.
4. Uses top quality vacuum pump, features reliable performance and prompt pumping.
5. Multi-application, PVC film, Wood veneer and hot transfer is available.
Spray glue and give pvc film------manually
Table in and out---automatically
Press pvc film------automatically
Cut and take out the finished products-----manually
Suitable Materials
Covering film: PVC, Transfer printing film
Base Material: MDF, plywood, particle bboard
Glue: vacuum press glue
Base Material: MDF, plywood, particle bboard
Glue: vacuum press glue
Packing & Delivery
1, Foam & shrink film
