Quick Details
-
Network:
-
NO
-
Product name:
-
Infrared Photo Beam Sensor
-
Material:
-
ABS Plastic
-
Working voltage:
-
AC/DC 12v to 24v
-
Working current:
-
37mA Max
-
Detecting distance:
-
30m
-
Beam:
-
Single Infrared Photo Beam Sensor
-
Alarm output:
-
Relay output NC NO; 1A/36V Max
-
Waterproof grade:
-
IP55
-
Frequency:
-
1.92KHz
-
Transmitter Power source:
-

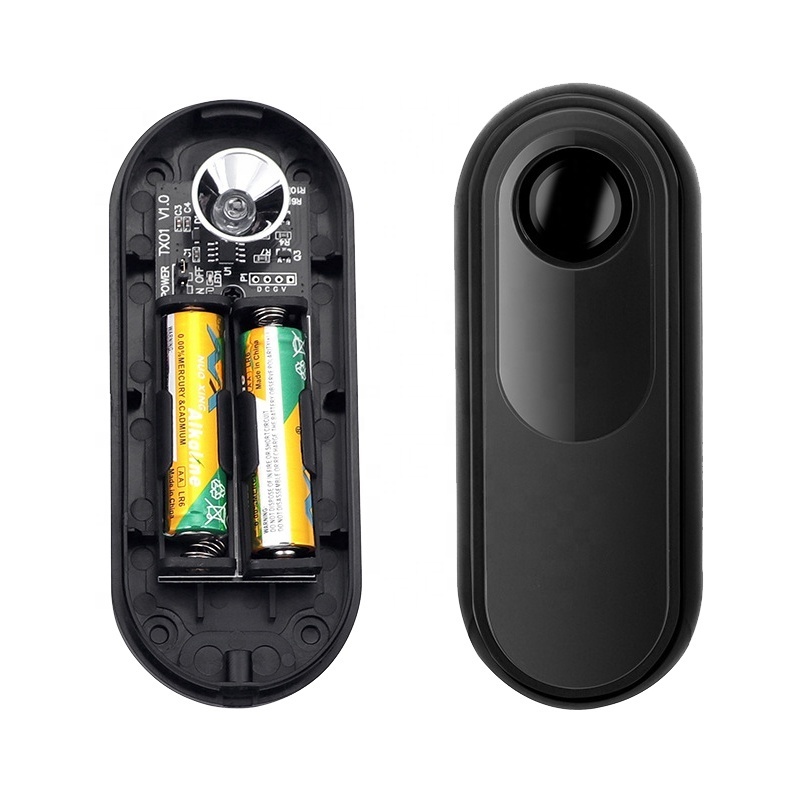

3V (2 x AA Alkaline Batteries not include)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELEFINE
-
Model Number:
-
ABO-20L
-
Network:
-
NO
-
Product name:
-
Infrared Photo Beam Sensor
-
Material:
-
ABS Plastic
-
Working voltage:
-
AC/DC 12v to 24v
-
Working current:
-
37mA Max
-
Detecting distance:
-
30m
-
Beam:
-
Single Infrared Photo Beam Sensor
-
Alarm output:
-
Relay output NC NO; 1A/36V Max
-
Waterproof grade:
-
IP55
-
Frequency:
-
1.92KHz
-
Transmitter Power source:
-
3V (2 x AA Alkaline Batteries not include)
Battery Powered Outdoor Wireless Safety Single Photocell Infrared Beam Sensor For Automatic Door Control
Product Description
This Automatic Sliding Door Safety Photocell Beam Sensor is used in automatic doors, garages, barriers, and indoor and outdoor security protection. The product uses ultra-low power consumption technology, and the battery life is more than 2 years. Designed for outdoor scene applications, it can resist rain erosion and simultaneously has a good ability to resist sunlight interference to avoid product failures caused by sunlight interference.
Automatic Sliding Door Photo cell Sensor
Waterproof IP55 / 30 Meters Detecting Distance Relay Output NC/NO / Good Ability To Resist Sunlight Interference
Outdoor Waterproof Design
Adopt sealed waterproof design, with waterproof and moisture-proof functions suitable for indoor and outdoor installation and used in humid areas
Detection Distance 30 Meters
The detection distance is long,the outdoor detection distance can reach 30 meters,which can meet the needs of most gates,automatic doors,sliding doors and windows
For Automatic Switch,Prevent Pinching,Anti-theft Alarm,Automatic Landing Bar
Installed on both sides of the barriers which is wired to the barrier controller. When someone or a vehicle interrupts the beam, the controller will control the ups and downs or opening of the barrier automatically, prevent the car from being pinched. Infrared is invisible, this image is only a simulation.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
ELEFINE
|
|
Model Number
|
ABO-20i
|
|
Network
|
NO
|
|
Product name
|
Infrared Photo Beam Sensor
|
|
Material
|
ABS Plastic
|
|
Working voltage
|
AC/DC 12v to 24v
|
|
Working current
|
37mA Max
|
|
Detecting distance
|
30m
|
|
Beam
|
Single Infrared Photo Beam Sensor
|
|
Alarm output
|
Relay output NC NO; 1A/36V Max
|
|
Application
|
Outdoor
|
|
Waterproof grade
|
IP55
|
|
Frequency
|
1.92KHz
|
Packing & Delivery
Carton box for
