superelastic medical grade nitinol tube ASTMF2063-12

superelastic medical grade nitinol tube ASTMF2063-12

FOB Reference Price: Get Latest Price

≥1 Kilograms

US $158

≥10 Kilograms

US $150

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: seabird-006

Material:: gr7

Outer Diameter:: 0.3

Length:: 1500

Application:: stent

Grade:: gr7

Wall Thickness:: 0.05

Inside Diameter:: 0.2

Color:: bright and polishing

Supply Status:: Full annealed

Feature:: superelastic

Tensile Strength Mpa:: 1146MPA

Residual Elongation(%):: 0.13

Upper Plateau Strength (Mpa):: 415.8Mpa

Lower Plateau Strength (Mpa):: 90.15Mpa

Elongation (%):: 15%

Quick Details

Standard:: astmf2063, ASTMF2063

Place of Origin:: Shaanxi, China

Brand Name:: seabird

Model Number:: seabird-006

Material:: gr7

Outer Diameter:: 0.3

Length:: 1500

Application:: stent

Grade:: gr7

Wall Thickness:: 0.05

Inside Diameter:: 0.2

Color:: bright and polishing

Supply Status:: Full annealed

Feature:: superelastic

Tensile Strength Mpa:: 1146MPA

Residual Elongation(%):: 0.13

Upper Plateau Strength (Mpa):: 415.8Mpa

Lower Plateau Strength (Mpa):: 90.15Mpa

Elongation (%):: 15%

Product Description

Nitinol Tubing was first manufactured commercially in the early 1990's. Since then, the application have reached unprecedented levels and continue to rise today. Due to Nitinol's unique properties it has seen a large demand for use in less invasive medical devices. Nitinol tubing is commonly used in catheters, stents, and superelastic needles. Today, it offers the best compromise between engineered plastics and traditional metals.

Compared to other alloys tubing technologies Nitinol tubing technology is fairly recent but has many advantages over stainless steel hypotube. Kink and crush resistance, Flexibility, Large amount of recoverable deformation, Generation of constant or low forces over a wide range of deformation, Energy storage and restoration.

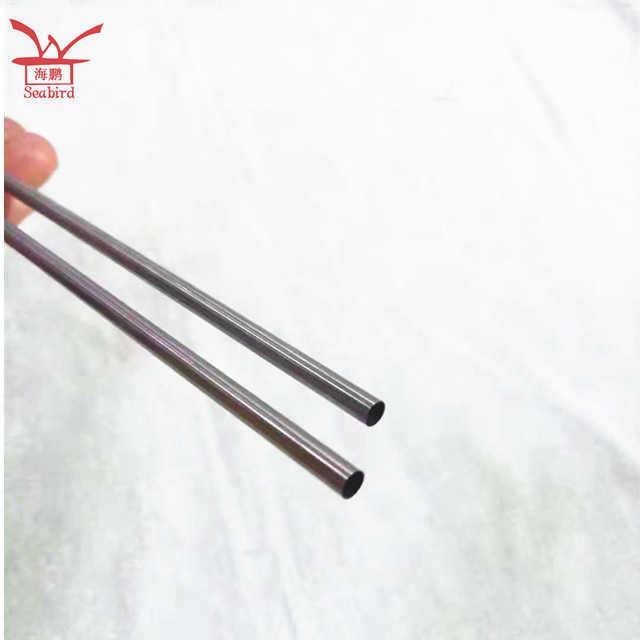

superelastic medical grade nitinol tube ASTMF2063-12

Size : 0.68+/-0.01mm 0.42mm+/-0.02mm

1500+20/-0mm

AF ≤15℃

Tensile Strength : 1146Mpa

Upper Plateau Strength : 415.8(Mpa)

Lower Plateau Strength: 90.15 (Mpa)

Elongation : 15 (%)

Residual Elongation : 0.14(%)

Testing Equipment :Digital Micrometer:L134 Calibration Due Date:Otc-5-2017

Advantage

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Condition	UTS σb MPa	Elongation δ %	Upper Plateau Stress σload MPa	Permanet Set after 6% strain %	Active Af ℃
Superelastic	≥ 1000	≥ 10	≥ 380	≤ 0.5	< 15

Tolerance(mm )
Nominal OD or ID in mm (in.)		Permissible Variation from Nominal in mm (in.)
≤ 1.5 (0.059)		± 0.025 (0.001)
≤ 6.5 (0.256)		± 0.050 (0.002)
≤ 12 (0.472)		± 0.075 (0.003)

Application

Formed tubing shapes, beveled needle points, cut lengths, catheter shafts, distal protection, laproscopes, endoscopic guide tubes and orthodontic guide wires etc.

The Related Products

Certifications

Our Customers

Our customers spread over North America, South America, Europe, Southeast Asia etc.

MEDTRONIC VISITED OUR FACTORY

Customers from India

We become their long-term relationship supplier for nitinol flat wire and sheet

Thanks a lot the support and trust from all our customers!

We will keep improve to make you satisfied forever!

The exclusive supplier contract
Joe is from US.He is the scientist of nitinol.He signed the exclusive supplier contract with us after his visiting !
Now,he is one of our big customers !

He sells our products to US market!

Our Company

Packing & Delivery

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
