Quick Details
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Zhaga book18 converter for outdoor lighting, Zhaga book18 SILVAIR bluetooth mesh controller
-
Manufacturing Date Code:
-
-
-
Model Number:
-
HNB156
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
Zhaga book18 ble wireless converter
-
Output:
-
0-10v dimming, 0-10v
-
Name:
-
Bluetooth converter
-
Input voltage:
-
12 - 24V DC
-
Input current:
-
≥30mA
-
Function:
-
dimming, bluetooth
-
IP rating:
-
IP65
-
Usage:
-
outdoor lighting and ble system
-
Warranty:
-
5 year
-
Operation temperature:
-
-20℃ ~ + 70℃.
Quick Details
-
Use:
-
lighting & lighting system
-
Series:
-
Zhaga book18 for outdoor lighting
-
Features:
-
IP65 waterproof
-
Mounting Type:
-
ceiling mounting
-
Description:
-
Zhaga book18 converter for outdoor lighting, Zhaga book18 SILVAIR bluetooth mesh controller
-
Manufacturing Date Code:
-
-
-
Model Number:
-
HNB156
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
hynall
-
Theory:
-
Zhaga book18 ble wireless converter
-
Output:
-
0-10v dimming, 0-10v
-
Name:
-
Bluetooth converter
-
Input voltage:
-
12 - 24V DC
-
Input current:
-
≥30mA
-
Function:
-
dimming, bluetooth
-
IP rating:
-
IP65
-
Usage:
-
outdoor lighting and ble system
-
Warranty:
-
5 year
-
Operation temperature:
-
-20℃ ~ + 70℃.

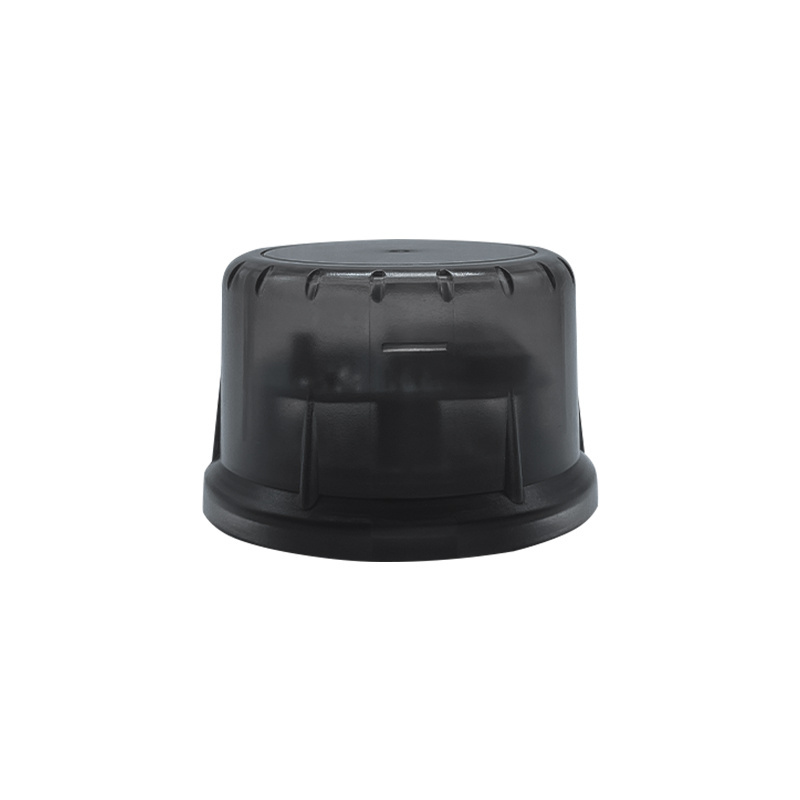

Model: HNB156 Zhaga book18 series for outdoor lighting
SILVAIR bluetooth converter 0-10V dimming by APP control
Feature of Zhaga book18 bluetooth mesh converter
1, IP65 for outdoor lighting, Zhaga book18 standard version
2, SILVAIR bluetooth mesh APP control, support IOS and android system
3, As the slave, working with master bluetooth mesh motion sensor, lower cost
4, 57mm only in diameter, black color
5,
Bluetooth operation frequency 2.4GHz - 2.483 GHz
RESET button:
The Bluetooth Mesh Node can be reset to the Unprovisioned Mode by placing a strong magnet (e.g. neodymium magnet) near the magnet-sensitive / Reset areas for 5 seconds. See below areas that marked in pink. Once the factory reset is done successfully, the luminaire flashes and then goes to permanent on.
This device HNB156 can be easily reset by using Houle switch. Once the factory reset is done successfully, the luminaire flashes and then permanent on, then the device is being able to be re-commissioned by SILVAIR APP.
Feature of Zhaga book18 bluetooth mesh converter
1, IP65 for outdoor lighting, Zhaga book18 standard version
2, SILVAIR bluetooth mesh APP control, support IOS and android system
3, As the slave, working with master bluetooth mesh motion sensor, lower cost
4, 57mm only in diameter, black color
5,
Bluetooth operation frequency 2.4GHz - 2.483 GHz
Product information:
|
Type:
|
SILVAIR bluetooth mesh converter
|
|
Input voltage:
|
12V DC-24V DC
|
|
Input current:
|
≥20mA
|
|
Bluetooth transmission range:
|
10-30m ( Typical indoor)
|
|
Zhaga book18 series
|
Hynall Zhaga book18 series product list
|
|
|
|
|
|
|
|
|||||||
|
|
Product
|
Daylight
|
|
|
Motion
|
DALI
|
BLE
|
Remark
|
|||||||
|
|
|
On/off
|
Daylight monitoring
|
Daylight harvest
|
|
|
|
|
|||||||
|
|
HNP152
|
✓
|
|
|
|
|
|
0/10V high low output
|
|||||||
|
|
HNP152V
|
✓
|
✓
|
|
|
|
|
0-10V output
|
|||||||
|
|
HNP152DH
|
|
|
✓
|
|
|
|
0-10V output
|
|||||||
|
|
HNS151HB
|
|
✓
|
|
✓
|
|
|
0-10V output
|
|||||||
|
|
HNS151DHB
|
|
|
✓
|
✓
|
|
|
0-10V output
|
|||||||
|
|
HNS157PIR
|
|
✓
|
|
✓
|
|
|
0-10V output
|
|||||||
|
|
HNS158PIR
|
|
|
✓
|
✓
|
|
|
0-10V output
|
|||||||
|
|
HNP153DL
|
✓
|
✓
|
|
|
✓
|
|
DALI-2 D4i
|
|||||||
|
|
HNS155DL
|
|
|
|
✓
|
✓
|
|
D4i+MW
|
|||||||
|
|
HNS153DL
|
|
✓
|
|
✓
|
✓
|
|
D4i+MW+Daylight
|
|||||||
|
|
HNS154DL
|
|
|
✓
|
✓
|
✓
|
|
D4i+MW+Daylight
|
|||||||
|
|
HNS153DL-C
|
|
✓
|
|
✓
|
✓
|
|
D4i+MW+Daylight
|
|||||||
|
|
HNS154DL-C
|
|
|
✓
|
✓
|
✓
|
|
D4i+MW+Daylight
|
|||||||
|
|
HNS155DLPIR
|
|
|
|
✓
|
✓
|
|
D4i+PIR
|
|||||||
|
|
HNS157DLPIR
|
|
✓
|
|
✓
|
✓
|
|
D4i+PIR+Daylight
|
|||||||
|
|
HNS158DLPIR
|
|
|
✓
|
✓
|
✓
|
|
D4i+PIR+Daylight
|
|||||||
|
|
HNS157DLPIR-C
|
|
✓
|
|
✓
|
✓
|
|
D4i+PIR+Daylight
|
|||||||
|
|
HNS158DLPIR-C
|
|
|
✓
|
✓
|
✓
|
|
D4i+PIR+Daylight
|
|||||||
|
|
HNB156MW
|
|
|
✓
|
✓
|
|
|
MW+BLE
|
|||||||
|
|
HNB156
|
converter
|
|
|
|
|
|
BLE
|
|||||||
|
|
HNB158PIR
|
|
|
✓
|
✓
|
|
|
PIR+BLE
|
|||||||
|
|
HNB158LPIR-C
|
|
|
|
|
✓
|
✓
|
D4i+PIR+BLE
|
|||||||
|
|
HNB156DL-C
|
converter
|
|
|
|
✓
|
✓
|
D4i+BLE
|
|||||||
|
|
HNB156XL
|
converter
|
|
|
|
|
|
min.50m bluetooth transmission range
|
|||||||
|
|
HND150V/D
|
AC input, matching all of motion sensor head and converter of Zhaga book18 series
|
|
|
|
|
|
|
|||||||
Product Description
Specification
|
Input voltage:
|
12 - 24V DC
|
|
Decentralized control
|
(no single point of failure).
|
|
Function:
|
dimming and SILVAIR bluetooth mesh app control
|
|
Bluetooth transmission power:
|
4dBm
|
|
Input current:
|
≥20mA
|
|
Operation temperature: .
|
-20 C ~ + 70 C
|
|
IP rating:
|
IP65
|
Application Scene：
Certification:
Packing & Delivery
box size: 45*30*23cm inner box: 30*23*20cm
