- Product Details
- {{item.text}}
Quick Details
-
Battery Size:
-
328*172*224
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.4kg
-
Warranty:
-
1~2 Year, Other
-
Life Span:
-
up to 5 Year
-
Maintenance Type:
-
Free
-
Color:
-
Black
-
Sealed Type:
-
Sealed
-
Rated Voltage:
-
12V
-
Capacity:
-
4.5Ah
-
Internal Resistance:
-
Full charged at 25℃:≤42mΩ
-
Maximum discharge current:
-
75A(5 sec.)
-
Certification:
-
CE,ROHS
Quick Details
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Automotive, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
DET
-
Model Number:
-
SM12V4.5A
-
Battery Size:
-
328*172*224
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.4kg
-
Warranty:
-
1~2 Year, Other
-
Life Span:
-
up to 5 Year
-
Maintenance Type:
-
Free
-
Color:
-
Black
-
Sealed Type:
-
Sealed
-
Rated Voltage:
-
12V
-
Capacity:
-
4.5Ah
-
Internal Resistance:
-
Full charged at 25℃:≤42mΩ
-
Maximum discharge current:
-
75A(5 sec.)
-
Certification:
-
CE,ROHS
Products Description

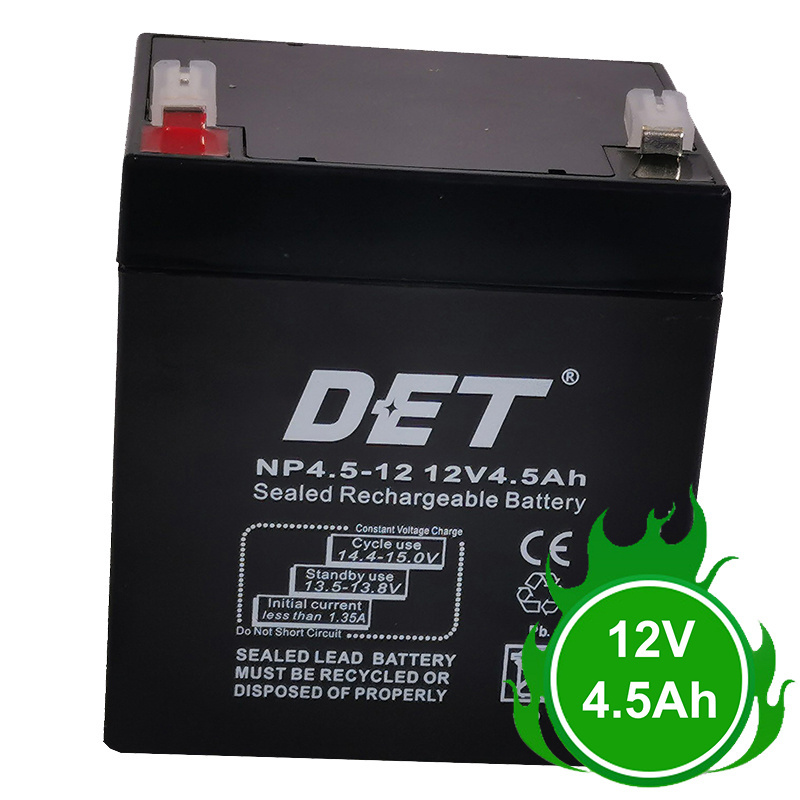

Lead acid battery toys battery 12V 4Ah 4.5Ah 5Ah of capacity
>>completely sealed and maintenance-free, low self-discharge
>>100% precise quality testing, stable quality and high reliable performance
>>Unique grid alloy formula and updated manufacturing technique
>>Floating & standby use:up to 3 years
>>Cycle use 1: More than 240 cycles at 100% DOD
>>Cycle use 2: More than 1200 cycles at 30% DOD
|
Battery Model
|
NP 4.5-12 12V4.5AH
|
|
|
|
|||
|
Designer Floating Life
|
Up to 3 Years
|
|
|
|
|||
|
Capacity (25℃)
|
20HR(0.25A,10.50V)
|
10HR(0.5A,10.5V)
|
1HR(2.5A,9.6V)
|
27min(5A,9.6V)
|
|||
|
|
4.7AH
|
4.5AH
|
2.5AH
|
2.25AH
|
|||
|
Dimensions
|
Length
|
Width
|
Height
|
Total Height
|
|||
|
|
90mm (3.54inch)
|
70mm (2.76inch)
|
101mm (3.98inch)
|
107mm (4.21inch)
|
|||
|
Approx. Weight
|
1.43Kg (3.15 lbs)
|
|
|
|
|||
|
Internal Resistance
|
Full charged at 25℃:≤42mΩ
|
|
|
|
|||
|
Self Discharge
|
2% of capacity declined per month at (25℃)
|
|
|
|
|||
|
Capacity Affected by Temp.(20HR)
|
40℃
|
25℃
|
0℃
|
-15℃
|
|||
|
|
102%
|
100%
|
80%
|
55%
|
|||
Specification
Applications
Our factory
Certifications
FAQ
Q1): Are you trading company or manufacturer ?
A): We are factory.
Q2):Could you do OEM?
A):Yes, we can OEM for you and submit the law ofintellectual property rights.
Q3):What is your product warranty?
A):the warranty is at least 1 year, free replace battery in the warranty, but, we supply service from start to end.
Q4): How long is your delivery time?
A): Generally it is 10-15 days, it is according to quantity.
Q5): Do you provide samples ?
A): Yes, we could offer the sample.
Q6):Can you supply free sample?
A):for low price battery, we can supply free sample, for high price battery, the sample cost can be returned to you in following orders.
Q7):Are your batteries pre-built and stored on shelves before being shipped to the buyer?If so,how old are these batteries?Are they built to order?
A): No,our batteries were fresh produced based on customers order,especially for the big capacity battery.The lead time is almost 10-15 days,because all fresh batteries must be 100% pass whole test before shipment.Our batteries can storage 6 months without charging.
Q8): What is your terms of payment ?
A): Payment<=5000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
A): We are factory.
Q2):Could you do OEM?
A):Yes, we can OEM for you and submit the law ofintellectual property rights.
Q3):What is your product warranty?
A):the warranty is at least 1 year, free replace battery in the warranty, but, we supply service from start to end.
Q4): How long is your delivery time?
A): Generally it is 10-15 days, it is according to quantity.
Q5): Do you provide samples ?
A): Yes, we could offer the sample.
Q6):Can you supply free sample?
A):for low price battery, we can supply free sample, for high price battery, the sample cost can be returned to you in following orders.
Q7):Are your batteries pre-built and stored on shelves before being shipped to the buyer?If so,how old are these batteries?Are they built to order?
A): No,our batteries were fresh produced based on customers order,especially for the big capacity battery.The lead time is almost 10-15 days,because all fresh batteries must be 100% pass whole test before shipment.Our batteries can storage 6 months without charging.
Q8): What is your terms of payment ?
A): Payment<=5000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
