Quick Details
-
Power Source:
-
Gas
-
Gas Heater Type:
-
Infrared Heater
-
Function:
-
Adjustable Thermostat, Overheat Protection, Ventilation
-
Model Number:
-
162
-
Brand Name:
-
THD
-
Place of Origin:
-
China
-
Type:
-
Infrared Gas Heater
-
Heating mode:
-
Infrared Radiant Heating
-
Main material:
-
Cast iron body, honeycomb with rare-earth catalyst
-
Conversion rate:
-
above 90%
-
CO:
-
less than 80ppm
-
NOx:
-
less than 10ppm
-
CHx:
-
less than 50ppm
-
Life:
-
above 11000hr
-
Usage:
-
Baking, drying for agriculture product, fruit, nut, vegetable
-
Working pressure:
-
2000-5000pa for NG, 2800-5000pa for LPG
Quick Details
-
After-sales Service Provided:
-
Overseas Call Centers
-
Warranty:
-
1 Year
-
Application:
-
Outdoor, Hotel, Garage, Commercial
-
Power Source:
-
Gas
-
Gas Heater Type:
-
Infrared Heater
-
Function:
-
Adjustable Thermostat, Overheat Protection, Ventilation
-
Model Number:
-
162
-
Brand Name:
-
THD
-
Place of Origin:
-
China
-
Type:
-
Infrared Gas Heater
-
Heating mode:
-
Infrared Radiant Heating
-
Main material:
-
Cast iron body, honeycomb with rare-earth catalyst
-
Conversion rate:
-
above 90%
-
CO:
-
less than 80ppm
-
NOx:
-
less than 10ppm
-
CHx:
-
less than 50ppm
-
Life:
-
above 11000hr
-
Usage:
-
Baking, drying for agriculture product, fruit, nut, vegetable
-
Working pressure:
-
2000-5000pa for NG, 2800-5000pa for LPG
Product Name: Safe Infrared Gas Ceramic Home Panel Heater
Chongqing Haodong Technology Factory produce bbq gas grill burner, gas burner, infrared burner, gas heater, heating panel, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.
Industrial Oven gas burner specification:
|
MODEL |
Dimension |
N.W. |
Gas Type |
Heat Output |
Gas Consumption |
||
|
mm |
kg |
KW/h |
Kcal/hr |
NG(m3/h) |
LPG(kg/h) |
||
|
FY41 |
280*80*70
|
3.1 |
NG/LPG |
2.1 |
1800 |
0.165 |
0.156 |
|
HD61 |
423*80*94 |
3.8 |
NG/LPG |
2.4 |
2030 |
0.18 |
0.17 |
|
HD81 |
555*80*115 |
5.8 |
NG/LPG |
3.1 |
2700 |
0.24 |
0.22 |
|
HD82 |
219*164*108 |
4.8 |
NG/LPG |
3.1 |
2700 |
0.24 |
0.22 |
|
HD101 |
690*80*115 |
6.9 |
NG/LPG |
3.9 |
3380 |
0.3 |
0.28 |
|
HD162 |
570*130*175 |
8 |
NG/LPG |
6.3 |
5400 |
0.49 |
0.45 |
|
HD242 |
840*130*175 |
11.7 |
NG/LPG |
9.4 |
8120 |
0.75 |
0.68 |
|
HD262 |
930*130*175 |
13 |
NG/LPG |
10.9 |
9360 |
0.8 |
0.74 |
Ceramic Radiant Heater description
|
Name |
Burner Type |
Origin |
Heat up Time to Work |
Accessory |
Conversion Rate |
Lifetime |
|
Infrared gas burner
|
Industrial Series |
Chongqing, China |
8 seconds |
Pulse igniter Ignition Pin Solenoid valve |
about 95% |
1.5~7 years |
|
Technology |
Patented Rare-earth Catalyst Technology |
|||||
|
Usage |
Heating, Baking, Curing Drying for Painting industry, food industry, Agriculture Industry, latex &rubber, Fiber& textile, Paper, Glass & Ceramic Industry etc. |
|||||
|
Light type |
electrical pulse ignited |
|||||
|
gas type |
Liquid Petrol Gas (LPG) ,Natural gas(NG) |
|||||
|
Feature |
10~50% Energy Efficient, Low pollution(Cox, Nox), Easily Cleaned, Heat Resistance, Corrosion resistance, Wind resistance |
|||||
|
Main Material |
Casting iron body, honeycomb ceramic plate with rare-earth catalyst, imported aluminum steel sheet |
|||||
|
Finishing |
not coated |
|||||
Why choose Chongqing Haodong Gas Burner?
Rare-earth catalyst technology of Chongqing Haodong company is the first and only one in China, it's used in infrared gas burner & gas heater and could save 10~20% energy than non-catalytic infrared heater. Besides, 50% production cost could be saved than electric tube infrared heater.
What's difference between rare-earth catalytic gas burner & common gas burner?

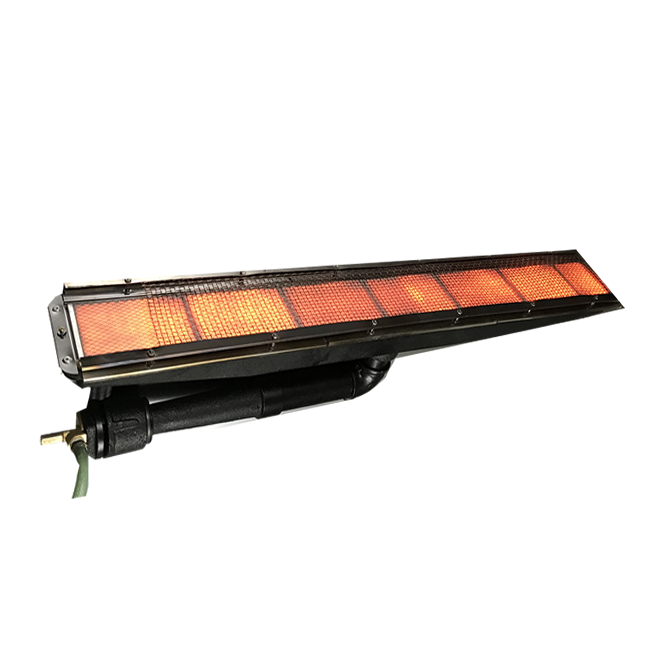

Infrared Radiant Ceramic Baker Gas Heater pictures:
Just sending us an inquiry, then we will take care of all the rest.
