Quick Details
-
Product name:
-

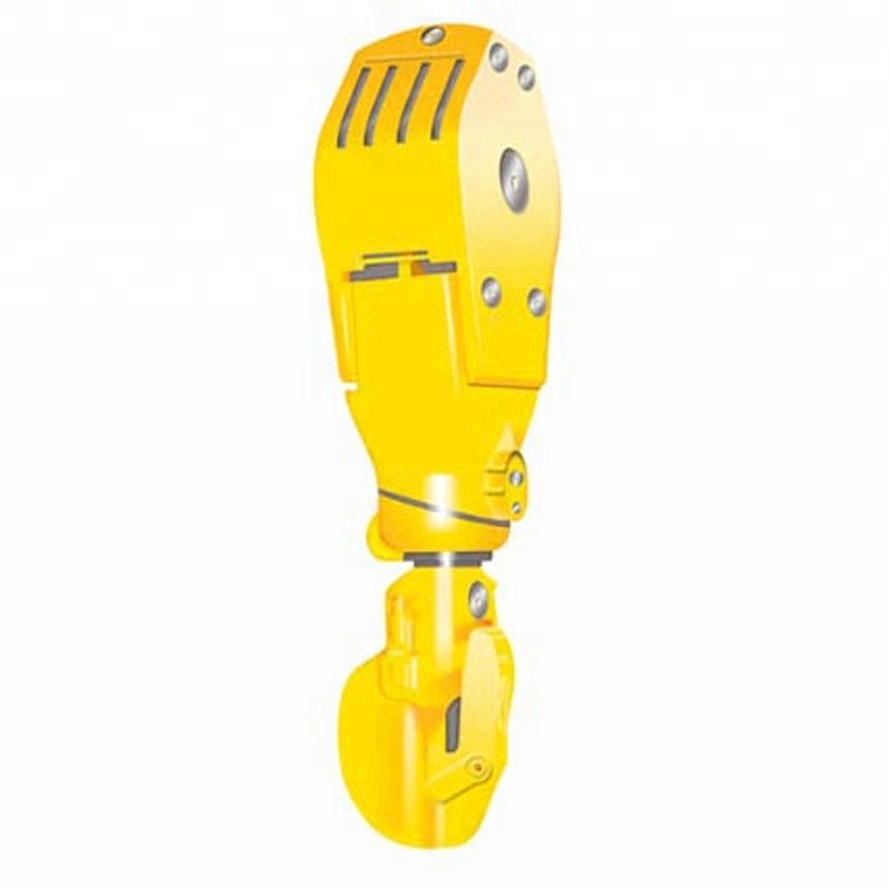

YG 180 drilling rig oil well Traveling blocks
-
Max. static load:
-
1800KN
-
OD of sheaves:
-
42in
-
Advantage:
-
High Performance
-
Usage:
-
Drilll equipment
-
No. of sheaves:
-
5
-
Dia. of wirelines:
-
29mm
-
Delivery time:
-
Within 30 days
-
Item:
-
drilling rig oil well Traveling blocks
Quick Details
-
Weight (KG):
-
950
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Goldenman
-
Product name:
-
YG 180 drilling rig oil well Traveling blocks
-
Max. static load:
-
1800KN
-
OD of sheaves:
-
42in
-
Advantage:
-
High Performance
-
Usage:
-
Drilll equipment
-
No. of sheaves:
-
5
-
Dia. of wirelines:
-
29mm
-
Delivery time:
-
Within 30 days
-
Item:
-
drilling rig oil well Traveling blocks
Products Description
YG 180 drilling rig oil well Traveling blocks from China
Traveling blocks is one of the lifting equipments for petroleum drilling rig and workover rig with the integral design,
which can shorten the length between traveling block and hook, perfectly meeting the traveling space for lifting system
Traveling blocks can be in accordance with Spec 8C PSL1.
The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life
The sheave grooves are intermediate frequency quenched so as to provide surface hardness and extend service life of sheaves.
which can shorten the length between traveling block and hook, perfectly meeting the traveling space for lifting system
Traveling blocks can be in accordance with Spec 8C PSL1.
The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life
The sheave grooves are intermediate frequency quenched so as to provide surface hardness and extend service life of sheaves.
Product display
Product Paramenters
|
Model
|
YG40
|
YG50
|
YG70
|
YG110
|
|
Max. static load lb(kN)
|
90000(400)
|
112500(500)
|
157500(700)
|
247500(1100)
|
|
OD of sheaves in.(mm)
|
20.4(518)
|
22.6(575)
|
24(605)
|
24(605)
|
|
No. of sheaves
|
3
|
3
|
4
|
3
|
|
Dia. of wirelines in.(mm)
|
7/8(22)
|
7/8(22)
|
7/8(22)
|
1(26)
|
|
Weight lb(kg)
|
308(682)
|
356(785)
|
634(1397)
|
646(1424)
|
|
Overall dimensions (mm)
|
(2138×540×445) |
(2220×602×445) |
(1844×692×540) |
(2334×673×562) |
|
|
|
|
|
|
|
Model
|
YG150
|
YG180
|
YG200
|
YG350
|
|
Max. static load lb(kN)
|
337500(1500)
|
405000(1800)
|
450000(2000)
|
787500(3500)
|
|
OD of sheaves in.(mm)
|
30(760)
|
42(1060)
|
43.3(1100)
|
44(1118)
|
|
No. of sheaves
|
4
|
5
|
5
|
5
|
|
Dia. of wirelines in.(mm)
|
1(26) 1-1/8(29)
|
1-1/8(29)
|
1-1/4(32)
|
1-1/4(32)
|
|
Weight lb(kg)
|
1276(2180)
|
2336(5146)
|
3323(7320)
|
2206(4860)
|
|
Overall dimensions in .(mm)
|
(2768×830×711)
|
(3469×1110×768)
|
(3964×1200×915)
|
(3600×1218×812)
|
