Quick Details
-
Tube Length(ft):
-
1200MM
-
Product Weight（kg）:
-
4
-
Input Voltage(V):
-
AC100-240V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledlesto
-
Model Number:
-
LST-LS5065-40W
-
LED Light Source:
-
SMD 2835
-
Lamp Luminous Flux(lm):
-
4000lm
-
Product Name:
-
Dimmable LED Linear Light
-
Power:
-
40W
-
Length Optional:
-
1200mm
-
Beam angle:
-
120 degree
-
Installation:
-
Pendant/Wall mounted
-
Size:
-
W50*H65mm
-
Key words:
-
Linear Light
Quick Details
-
Warranty(Years):
-
3
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Lamp Body Material:
-
Aluminum Alloy
-
Tube Length(ft):
-
1200MM
-
Product Weight（kg）:
-
4
-
Input Voltage(V):
-
AC100-240V
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledlesto
-
Model Number:
-
LST-LS5065-40W
-
LED Light Source:
-
SMD 2835
-
Lamp Luminous Flux(lm):
-
4000lm
-
Product Name:
-
Dimmable LED Linear Light
-
Power:
-
40W
-
Length Optional:
-
1200mm
-
Beam angle:
-
120 degree
-
Installation:
-
Pendant/Wall mounted
-
Size:
-
W50*H65mm
-
Key words:
-
Linear Light

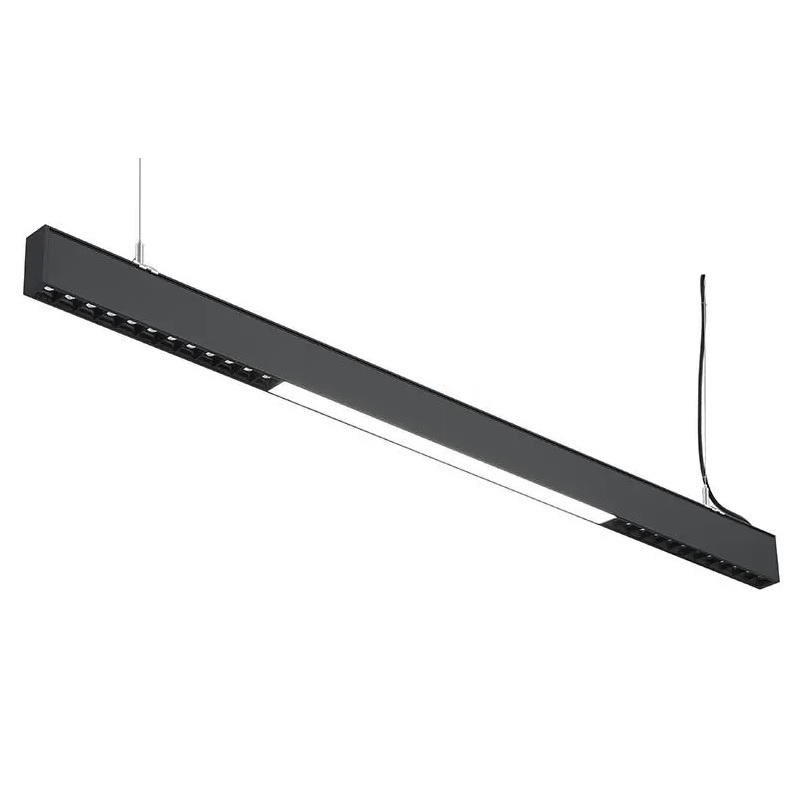

Aluminum Profile Linear Fixtures 4ft 40w Ceiling Suspended Dimmable Led Linear Pendant Light for Home Office School Lighting
1.Connect with seamless, form with line shape.
2.Connect by 4pcs pillar which lead stable and seamless.
3.Suspension, Surface mounted, wall mounted, recessed linear lights 50mm*65mm.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.AGT isolated driver, no flickering, no glaring.CIR ≥ 80.PF ≥ 0.9.
7.Dimmable and CCT changing available.
8.0~10V/DALI dimming options.
9.3 years warranty.
|
Product Name
|
40w Led Linear Light - LS5065
|
|
Light body material
|
Aluminum alloy 6063-T5, Opal PC, ABS
|
|
Surface treatment
|
Powder coated or Brushed aluminum
|
|
Led Source
|
SMD 2835
|
|
Color Temperature (CCT)
|
3000K, 4000K, 6000K
|
|
Input Voltage
|
100-277V/200-240V 50/60HZ
|
|
Power Supply
|
AGT isolated driver, no flickering, PF>0.9
|
|
Optional Functions
|
0-10V dimming, DALI dimming, CCT dimming, 2.4G Dimming
|
|
Beam angles
|
120°(pc, ps pmma cover) / 34°(with Reflector cup)
|
|
Linear Light shell colors
|
Black, White, Silver
|
|
Application
|
Supermarket lighting, office lighting, commercial lighting, shopping mall lighting
|
LED linear tube lights are widely used for indoor lighting
Such as bedroom, workshop, warehouse, toll station, supermarket, exhibition hall, shopping mall, office, school, cinema etc. Residential/ Commercial/ Hospitality/ Retail Lighting.
Quality is the most important thing and quality is our obligation. Our QC department will strictly check each process. The following image is an 8-hour aging testing performed before our product is packaged.
|
Model
|
Inner box(mm)
|
Carton(mm)
|
Packing(pcs/box)
|
|
LST-LS5065-UD20W06
|
641*80*41mm
|
653*252*176mm
|
12PCS
|
|
LST-LS5065-UD40W12
|
1238×80×41mm
|
1250×252×176mm
|
12PCS
|
|
LST-LS5065-UD60W18
|
1835×80×41mm
|
1847×252×135mm
|
9PCS
|
|
LST-LS5065-UD80W24
|
2432×80×41mm
|
2444×252×135mm
|
9PCS
|
Q1. Can I have a sample order for led linear light?
Ans: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
Ans:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 2000pcs.
Q3. Do you have any MOQ limit for led linear light order?
Ans: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ans: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led linear light?
Ans: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led linear light product?
Ans: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
Ans: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
Ans: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
