Quick Details
-
Power:
-
2.2 Kw, DC, AC or diesel
-
Min. Lifting Height:
-
1900mm
-
Table Size:
-
1200*800mm or custom
-
Overall Dimensions:
-
5200*1585*1900mm
-
Weight:
-
1500 kg
-
Name:
-
Trailer boom lift
-
Color:
-
red, green, blue or as your requirements
-
Rotating:
-
360 degree positive reversal
-
Lifting speed:
-
5-9m/min
-
After Warranty Service::
-
Video technical support, Online support, Spare parts,
-
Control:
-
control box on ground and control panel in top platform
-
Height:
-
8-18m
-
Capacity:
-
200kg
-
Guardrail height:
-
1100mm
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINYUN trailer boom lift
-
Power:
-
2.2 Kw, DC, AC or diesel
-
Min. Lifting Height:
-
1900mm
-
Table Size:
-
1200*800mm or custom
-
Overall Dimensions:
-
5200*1585*1900mm
-
Weight:
-
1500 kg
-
Name:
-
Trailer boom lift
-
Color:
-
red, green, blue or as your requirements
-
Rotating:
-
360 degree positive reversal
-
Lifting speed:
-
5-9m/min
-
After Warranty Service::
-
Video technical support, Online support, Spare parts,
-
Control:
-
control box on ground and control panel in top platform
-
Height:
-
8-18m
-
Capacity:
-
200kg
-
Guardrail height:
-
1100mm

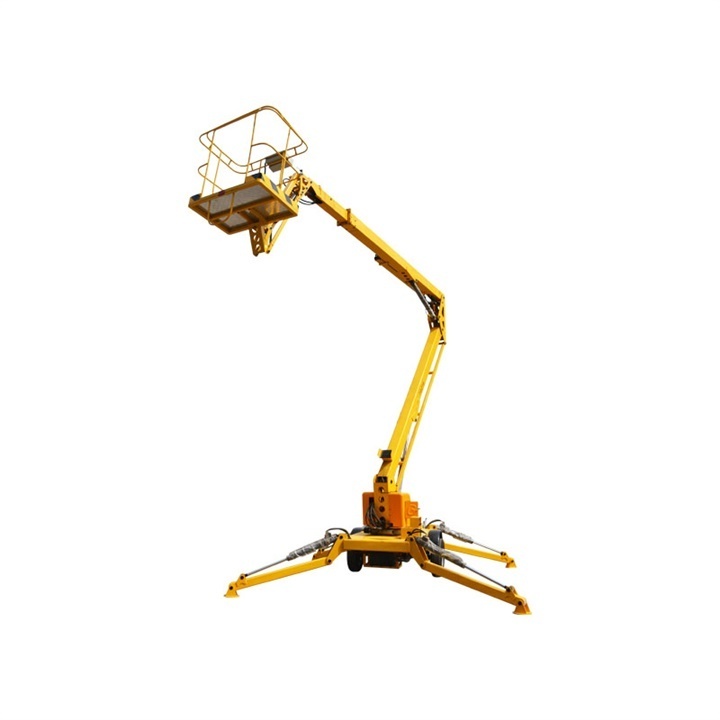

Product Description
1.
The towable articulated boom lift
is installed on a special self-made under frame with the boom, and is towed to achieve walking.
2.
Trailer boom lift
has the characteristics of light weight, multi-function operation and 360° continuous rotation.
3.
Trailer boom lift
is an ideal model used in crowded construction sites and can flexibly reach construction sites in various locations
4
Trailer boom lift
is widely used in high-altitude operations such as interior decoration, road and bridge construction,
house construction and maintenance, and electrical maintenance and so on.
house construction and maintenance, and electrical maintenance and so on.
Specification
|
Model
|
Lifting height.M
|
Capacity.KG
|
Table size.mm
|
|||
|
JYTGZ-10
|
10
|
200
|
1200*800mm
|
|||
|
JYTGZ-12
|
12
|
200
|
1200*800mm
|
|||
|
JYTGZ-14
|
14
|
200
|
1200*800mm
|
|||
|
JYTGZ-16
|
16
|
200
|
1200*800mm
|
|||
|
Trailer boom lift height 8m, 10m, 12m, 14m, 16m, power is DC, AC or diesel
|
|
|
|
|||
Details Images
ARM CONTROL BOX ON GROUND
24v safety operate voltage electric control box with UP, DOWN, LEFT, RIGHT, ROTATE, EMERGENCY STOP, KEY,fault buzzer.
HYDRAULIC LEGS CONTROL BOX
There are 4 control bars for hydraulic legs. You can adjust leg number according to your demands.
ARM CONTROL BOX ON PLATFORM
24v safety operate voltage electric control box with
UP, DOWN, LEFT, RIGHT, ROTATE, EMERGENCY STOP, KEY,fault buzzer.
GUARDRAIL
Safety guardrails and roller-up gate. We also can cover wire mesh. It is made by strength steel and normal height 1100mm.
ARTICULATE
Strength articulating and arm cylinders to make the boom lift rotating and elevating more
agility
WHEELS & DASHBOARD
There are 2 big
pneunatic tyre, to make lift move more easily. Also also can be towed to here are there.
HYDRAULIC LEGS
There are 4 hydraulic legs to make legs put on ground very
fastness. The pressure is very big and can make boom lift above ground and very stable when using. It can be adjusted one by one to make the boom lift level.
DRAG BAR
It can be removed when not use it. You can connected the boom lift on SUV by this drag bar.
CYLINDER
There are many strength and high quality cylinders in this book lift. They are all with e
xplosion-proof valve. Once the cylinder is lead oil and broken. The ex
plosion-proof valve will lock the cylinder to make lift safety.
