2.Blade thickness:20mm
3.Blade quantity:40 pieces
4.Blade raw material:9CrSi or D2
3.Blade quantity:40 pieces
4.Blade raw material:9CrSi or D2
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MC
-
Voltage:
-
220V/380V/415V(or customized
-
Dimension(L*W*H):
-
3400(L)X1490(W)X2320(H)
-
Power (kW):
-
37
-
Weight (T):
-
3.2
-
Keyword:
-
Rubber Tire Shredder Waste Tires Recycling Machine Scrap Tire Line
-
Application:
-
shredding plastic,wood,metal into small flakes
-
shredding capacity:
-
1000-1300kg/h
-
Main motor power:
-
18.5KW+18.5KW
-
Main shaft rorating speed:
-
18r/min
-
shredded flake size:
-
20mm-40mm
-
Knife material:
-
SKD-11
-
Knife thickness:
-
20mm/25mm/40mm/50mm
-
Gearbox:
-
rigid face gearbox
-
Name:
-
Rubber Tire Shredder Waste Tires Recycling Machine Scrap Tire Line
Quick Details
-
Max.Production Capacity (kg/h):
-
2000
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
1500 - 2000 kg/h
-
Brand Name:
-
MC
-
Voltage:
-
220V/380V/415V(or customized
-
Dimension(L*W*H):
-
3400(L)X1490(W)X2320(H)
-
Power (kW):
-
37
-
Weight (T):
-
3.2
-
Keyword:
-
Rubber Tire Shredder Waste Tires Recycling Machine Scrap Tire Line
-
Application:
-
shredding plastic,wood,metal into small flakes
-
shredding capacity:
-
1000-1300kg/h
-
Main motor power:
-
18.5KW+18.5KW
-
Main shaft rorating speed:
-
18r/min
-
shredded flake size:
-
20mm-40mm
-
Knife material:
-
SKD-11
-
Knife thickness:
-
20mm/25mm/40mm/50mm
-
Gearbox:
-
rigid face gearbox
-
Name:
-
Rubber Tire Shredder Waste Tires Recycling Machine Scrap Tire Line
Product Description
Product Application

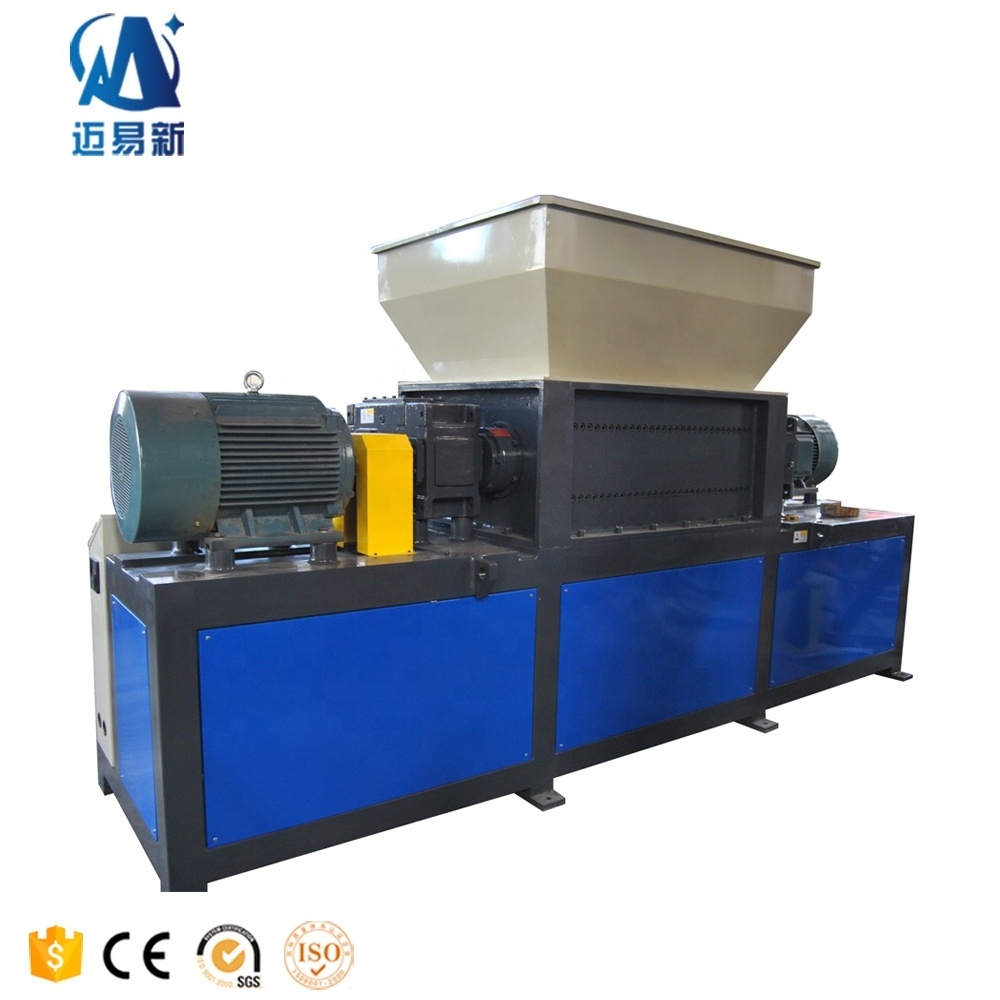

Rubber Tire Shredder Waste Tires Recycling Machine Plant Scrap Tire Recycling Production Line
is especially for shredding
fabric,waste tires,various big solid materials, unmanageable materials, waste plastic, plastic film, plastic pipe, fiber, wood, animal and paper which the normal crusher can not handle.
Main Features
1)The shredder use diesel engine instead of normal AC motor.
2)Electric One button start method,easy for operating.
3)The rotary blade with edge of special design, it can get very high
efficiency and high capacity.
efficiency and high capacity.
4)The shredder machine with big feeding mouth, it can put the big material successfully.
5)The shredder machine runs slowly with low noise and less dusty.
6)The Blade material with special alloy steel made, high temperature treatment,with long life time.
5)The shredder machine runs slowly with low noise and less dusty.
6)The Blade material with special alloy steel made, high temperature treatment,with long life time.
Application
This Shredder Machine can Processing:
(1) Plastic product: plastic bottles,buckets,chairs,pallets,pipes,profile,film,bags,toys,boxes,drums,cartons so on plastic products.
(2) Electronic equipment and components:TV set, PCB circuit board, washing machine, refrigerator casing.
(3) Wood: wooden plate,pallets, tree roots, branches,wood or WPC floor,desks.
(4) Used tire: trolley tires, truck tires,car tires,forklift tires.
(5) Scrap metal: automobile casing, aluminum alloy, waste cast aluminum, lead in engine casing and steel plate with thickness less than 5mm.
(6) Fabric:cloth,carpet,towel and so on.
(7) Different kind of waste:MSW waste,Kitchen waste, domestic garbage, animal carcass RDF derivatives, medical waste,biological orange pole, garden garbage.
Machine Parameter
|
Model
|
Motor Power
|
Capacity
|
|
MCSJ-300
|
5.5KW
|
100-300KG/H
|
|
MCSJ-400
|
7.5KW
|
400-600KG/H
|
|
MCSJ-500
|
15KW
|
600-1000KG/H
|
|
MCSJ-600
|
11KW+11KW
|
800-1500KG/H
|
|
MCSJ-800
|
18.5KW+18.5KW
|
1500-2000KG/H
|
|
MCSJ-1000
|
22KW+22KW
|
2000-3000KG/H
|
|
MCSJ-1200
|
30KW+30KW
|
2500-4000KG/H
|
|
MCSJ-1400
|
37KW+37KW
|
3000-5000KG/H
|
|
MCSJ-1500
|
45KW+45KW
|
4000-6000KG/H
|
|
MCSJ-1600
|
55KW+55KW
|
5000-8000KG/H
|
|
MCSJ-2000
|
75KW+75KW
|
6000-10000KG/H
|
If you have interests in our machine,please do not hesitate to send us an inquiry!
Detailed Images
Shredding Chamber
1.Chamber size:800mmx600mm
Main Shaft
1.Raw material:#45 steel with forged treatment
2.Main shaft type:Hexagon or Octagon
Blade
1.Blade raw material:SKD-11,9CrSi,Stainless steel and so on.
2.innner shaft type:H
exagon or
Octagon
Spacer
1.Raw material:42CrMo
2.Inner shaft type:
Hexagon or Octagon
Gearbox
1.Type:
Hardened helical gear reducer
2.Brand:GUOMAO(China Top10 brand gearbox)
Electric Control Cabinet
1.PLC brand:DELTA or SIEMENS
2.Electric contactor:SIEMENS
3.Air switch:CHNT
Our Service
Pre-Sales Service
* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
* Free testing(Customer provide testing material)
After-Sales Service
* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with only raw material cost after warranty time.
* We always update the new technology to every customer.
Packing & Delivery
If you have interests in our machine,please do not hesitate to send us an inquiry!
Related Products
Our Company
FAQ
1.How about the quality of your product?
Marksim:
1)Our products manufactured strictly according to national and international standard
2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made shippment.
2.What is the MOQ?
Marksim:
1 set.
3.If your machine can be custom-made?
Marksim:Yes,we can make products special designed according to customer's requirements.
4.What is the machine electric voltage?
Marksim:
Normally is 380V,50hz,3 phase,but we can change it according to customer's requirement, like 220V,415V,440V,600V and so on.
5.What is this machine guarantee time?
Marksim
:1 year
6.When the machine can be delivery?
Marksim:
Normally
40 working days
7.We want to visiting your factory first before order,if it is avaliable?
Marksim:
Yes,welcome to visit our factory,our factory sometimes has some ready machine in stock,you can see our real machine by your eyes.And it is the best that we can discuss face to face,everything will be easy to be solved.
8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:
Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.
9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you
?
Marksim:If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or skype or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts whole machine lifetime and technical service.
If you have interests in our machine,please do not hesitate to send us an inquiry!
