Quick Details
-
Capacity of MES:
-
250~700 Persons
-
Storage height:
-
4.5~20m
-
Inflatable Platform:
-
50~100Persons
-
Types:
-
Vertical / Inclined type
-
Number of Slide:
-
single & double chute
-
Operation type:
-
Manual handle release
-
Inflation Method:
-
Automatic Inflation
-
Storage method:
-
Stainless Steel Container / GRP Container as per request
Quick Details
-
Place of Origin:
-
China
-
Standard:
-
SOLAS (74/96)
-
MES Certification:
-
CCS Inclined MES Escape Slide
-
Capacity of MES:
-
250~700 Persons
-
Storage height:
-
4.5~20m
-
Inflatable Platform:
-
50~100Persons
-
Types:
-
Vertical / Inclined type
-
Number of Slide:
-
single & double chute
-
Operation type:
-
Manual handle release
-
Inflation Method:
-
Automatic Inflation
-
Storage method:
-
Stainless Steel Container / GRP Container as per request
Product Description

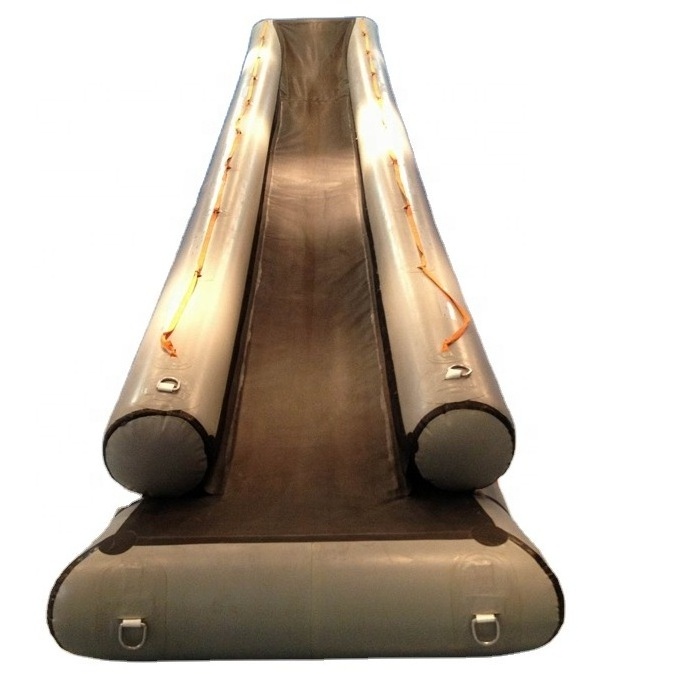

Marine Ship Evacuation System
is made in accordance with SOLAS 74/96 standard,
Passenger Evacuation System
is
used for rapid transfer of passengers from a Embarkation deck of a ship to a floating survival craft. And w
ithout getting soaked in water and this will save very precious time.
It works with Inflatable Liferaft together, packed in GRP Container or Stainless steel containers.
When emergency occurs, just release the handle and release the
Inclined MES Escape Slide
, the Marine Evacuation System will be inflated automatically.
Details Images
Specification
|
Item
|
MARINE EVACUATION SYSTEM
|
|
Place of Origin
|
China
|
|
Standard
|
SOLAS (74/96)
|
|
MES Certification
|
CCS
|
|
MES Type
|
Vertical / Inclined type
|
|
Storage height
|
4.5~20m
|
|
Capacity of Evacuation
|
250~700 Persons
|
|
Capacity of Platform
|
50~100Persons
|
|
Number of Slide
|
single& double chute optional
|
|
Operation
|
Manual handle release
|
|
Inflation Method
|
Automatic Inflation
|
|
Storage
|
Stainless Steel Container / GRP Container as per request
|
Operation and deploy of
MES Marine Evacuation System
* Pulling off the cover
* Pulling out the stable line of platform
* Fastening the stable line to the fixed object on both sides of the container
* Taking out the safety pin.
* Pulling the handle to release the MES Slide
* Adjust the evacuation passage and life raft to the right position.
* Passengers begin to evacuate
* Pulling off the cover
* Pulling out the stable line of platform
* Fastening the stable line to the fixed object on both sides of the container
* Taking out the safety pin.
* Pulling the handle to release the MES Slide
* Adjust the evacuation passage and life raft to the right position.
* Passengers begin to evacuate
