Quick Details
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G306-150P41AB-T001
-
Max. Current:
-
0.1/0.01(A)
-
Operating Temperature:
-
-40℃+ 85℃
-
Protection Level:
-
IEC IP67
-
Rating:
-
0.1A 30VDC & 0.01A 14VDC
-
Mechanical Life:
-
300000 cycles
-
Electrical life:
-
300000 cycles
-
Insulation Resistance:
-
100m - Min
-
Contact Resistance:
-
100m - Max
-
Application:
-
Automotive Electronics,Appliance and Industrial Control Designs
-
Product Name:
-
Miniature Momentary Push Button 3Pin PCB Micro Limit Switch 12V
-
Certification:
-
ULcUL ENEC CQC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
30VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR
-
Model Number:
-
G306-150P41AB-T001
-
Max. Current:
-
0.1/0.01(A)
-
Operating Temperature:
-
-40℃+ 85℃
-
Protection Level:
-
IEC IP67
-
Rating:
-
0.1A 30VDC & 0.01A 14VDC
-
Mechanical Life:
-
300000 cycles
-
Electrical life:
-
300000 cycles
-
Insulation Resistance:
-
100m - Min
-
Contact Resistance:
-
100m - Max
-
Application:
-
Automotive Electronics,Appliance and Industrial Control Designs
-
Product Name:
-
Miniature Momentary Push Button 3Pin PCB Micro Limit Switch 12V
-
Certification:
-
ULcUL ENEC CQC
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
Products Description
G306 Subminiature Micro Switch Parameters
|
Rating
|
0. 1A, 125/250VAC; 3A/12VDC;
0. 1A/48VDC ;U1E5
|
|
Operating Frequency
|
Electrical: 0. 1A-120 cycles/minute; 3A-10~30 cycles/minute
|
|
Operating Frequency
|
Mechanical: 120 Cycles/minute
|
|
Service Life
|
Electrical: Min. 100, 000 cycles(Depend on part NO.)
|
|
Service Life
|
Mechanical: Min. 500, 000 cycles
|
|
Contact Resistance(Initiative)
|
100m Ω Max (without wire type)
|
|
Insulation Resistance (at500VDC)
|
100m Ω Min
|
|
Vibration Durability
|
10~55Hz,move 0. 75mm (p-p)
|
|
Dielectric Strength
|
500VAC (50~60Hz)
|
|
Temperature
|
-40°C ~ + 85°C
|
|
Storage Humidity
|
85% RHMax
|
G306 Subminiature Micro Switch
Features
-high reliability and good resistance to environment,sealed micro switch with long travel
-with long travel,can work excently even without lever
-high reliability sliding contact structure
-with high temperature resistance (+85°C) and drip-proof structure,can be widely applied in different environments,IP67 rated (except for terminals)
-with high temperature resistance (+85°C) and drip-proof structure,can be widely applied in different environments,IP67 rated (except for terminals)
-widely applied for home appliances,electronic equipments,automatic equipments,communication
equipments,auto
electronics
,apparatus and instruments,
electrical tools etc.

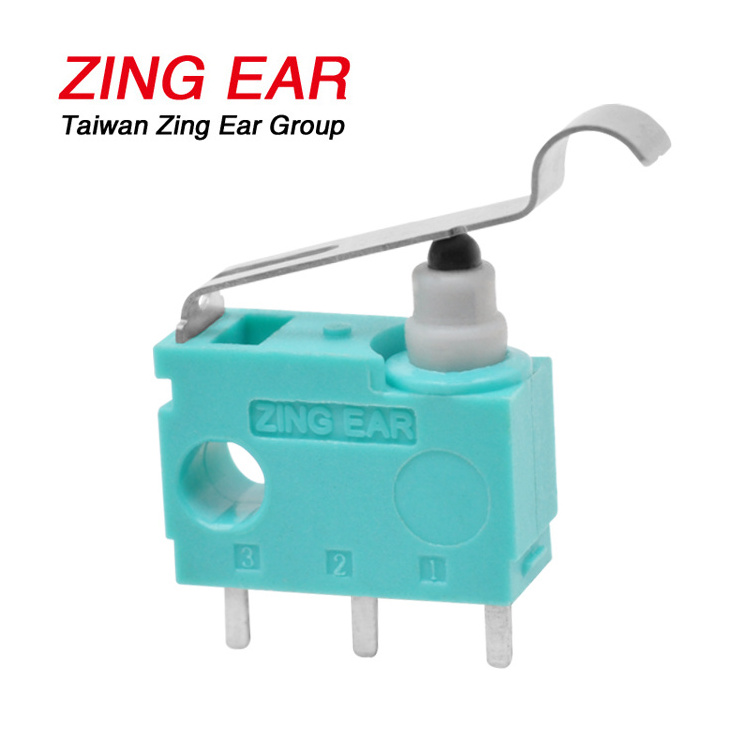

G306-150P41AB-T001
