Scaffoldings Steel Plank Roll Forming Machine
-
Pump Motor:
-
5.5KW(Lichao,Shanghai)
-
Electrical Control:
-
Siemens PLC Genemany, Siemens Inverter Genemany
-
Length Control:
-
Omron Encoder from Japan
-
Roller Shaft:
-
90mm 45# Steel Solid,Precision
-
Length Tolerance:
-
10m±1.5mm
-
Touch Screen:
-
Siemens(Germany)
-
Diemension:
-
(About)34M*1.5M*2.1M
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15-20m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QJ
-
Voltage:
-
380V 50HZ, 3Phases 380V 50HZ
-
Dimension(L*W*H):
-
34M*1.5M*2.1M
-
Weight:
-
16000 kg, (About) 16000KG
-
Feeding width:
-
600mm
-
Marketing Type:
-
Other
-
Product name:
-
Scaffoldings Steel Plank Roll Forming Machine
-
Pump Motor:
-
5.5KW(Lichao,Shanghai)
-
Electrical Control:
-
Siemens PLC Genemany, Siemens Inverter Genemany
-
Length Control:
-
Omron Encoder from Japan
-
Roller Shaft:
-
90mm 45# Steel Solid,Precision
-
Length Tolerance:
-
10m±1.5mm
-
Touch Screen:
-
Siemens(Germany)
-
Diemension:
-
(About)34M*1.5M*2.1M

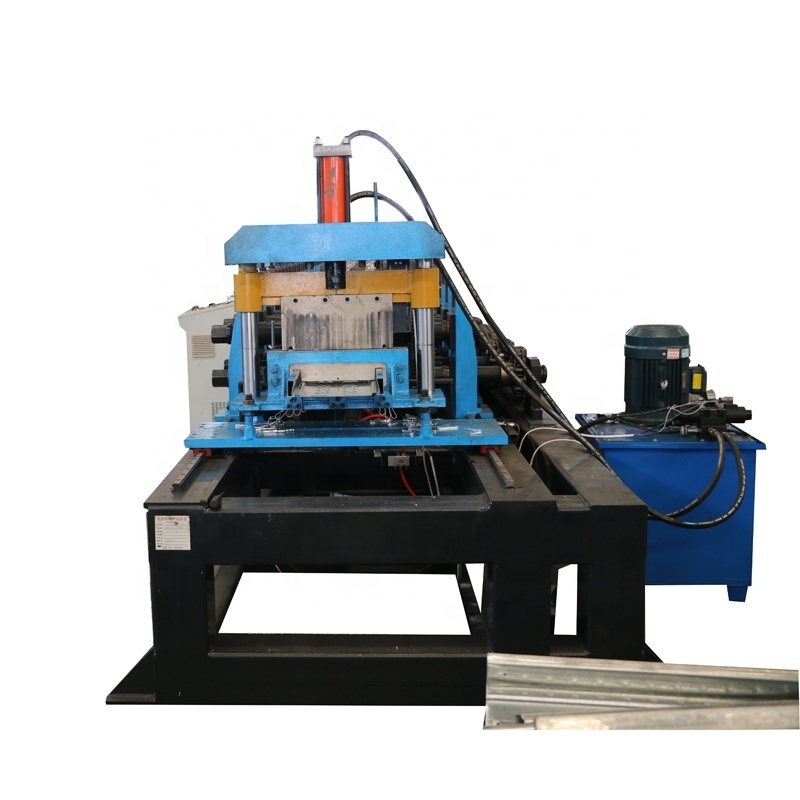

SCAFFOLDING PANEL ROLL FORMING MACHINE
Product Description
This machine is special equipment for rolling scaffolding panels. Put steel coil on the decoiling device,through flatting equipment clear up the metallic inner power ,passive driving by servo feeding go into punching machine, all these above 3 device can be controlled by one computer to avoid material buildup. After that , roll forming machine with different forming roller stand and hydraulic cutting/PLC control system for final scaffolding panel. The second control cabinet can be programable for various production task , then realize “automatic length to cut”.
|
Raw material
|
Rolled Steel
|
GI
|
Coil Width（mm）
|
530/580
|
||||
|
|
Yield Strength(Mpa)
|
HRB-55/65
|
Effective Width（mm）
|
250/300
|
||||
|
|
Rolling Thickness
|
1.5-1.8mm
|
Common Use（mm）
|
1.8
|
||||
|
Suitable Application & Main Specification
|
|
|
|
|
||||
|
Processing
|
Decoiling →Guide Feeding→Roll Forming→Auto Cut to Lenght→Production
|
|
|
|
||||
Sample of scaffloding panel
Use with product accessories table
|
Hydraulic decoiler
|
Operation
|
Hydraulic & Automatic
|
|
|
Load Capacity
|
5000KG
|
|
|
Coil Width
|
600MM
|
|
|
Motor Power
|
3.0KW+3.0KW
|
|
Leveling
equipment
|
Operation
|
Semi-automatic / Electrical
|
|
|
Transmission
|
By Gear
|
|
|
Flat Rollers
|
Up 5 Down 6
|
|
|
Roller Material
|
45# Forged Steel
|
|
Servo Feeder
&Punching
machine
|
Servo Motor
|
2.2KW
|
|
|
Feeding Width
|
Max 600mm
|
|
|
Punching MC
|
Top Brand in China
|
|
|
Capacity
|
200T
|
|
|
Punching Mold
|
Molding Cr Steel
|
|
Roll forming machine
|
Frame Structure
|
200*150*8 Square Tube
|
|
|
Gateway Strut
|
Cast Iron Steel
|
|
|
Screw/Bolt
|
8.8 grade
|
|
|
Roller Station
|
Roll forming 32 Steps
|
|
|
Roller Shaft
|
90mm 45# Steel Solid，Precision
|
|
|
Shaft Hardness
|
Heat Treatment 58-62℃
|
|
|
Shaft Material
|
45# Steel Solid，Precision
|
|
|
Roller Info.
|
GCr15 steel
|
|
|
Roller Hardness
|
harden chromed plated
|
|
|
Transmission
|
Chain ,2inch(Import Harden)
|
|
|
Motor Power
|
KW（Lichao,Shanghai）
|
|
|
Reducer Type
|
8# (Wujin,Changzhou)
|
|
|
Output Speed
|
About 15-20m/min
|
|
Cutting system
|
Frame Structure
|
Carbon Steel,Double Cylinder
|
|
|
Cutting Type
|
Hydraulic Stop to cut
|
|
|
Cut Performance
|
No scrap,no deformation
|
|
|
Cutting Blade
|
Cr12Mov,hardness 60-62℃
|
|
Hydraulic
system
|
Installation
|
inside,easy for operation
|
|
|
Pump Motor
|
5.5KW(Lichao,Shanghai)
|
|
Computer System
|
Electrical Control
|
Siemens PLC Genemany、
Siemens Inverter Genemany |
|
|
Length Control
|
Omron Encoder from Japan
|
|
|
Length Tolerance
|
10m±1.5mm
|
|
|
Touch Screen
|
Siemens(Germany)
|
|
|
Low Voltage
Components |
Limit Switch/Contactor/Relay
(CHNT/Schneider) |
|
|
Voltage
|
3Phases 380V 50HZ
|
