Quick Details
-
MF:
-
N/A
-
EINECS No.:
-
N/A
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
XINTAO
-
Model Number:
-
13X-HP
-
Product name:
-
zeolite molecular sieve 13X HP price for PSA oxygen concentrator
-
Keywords:
-
zeolite molecular sieve 13X HP for PSA
-
Application:
-
dryer/adsorbent
-
Model No.:
-
10A
-
Color:
-
Light Gray
-
Shape:
-
Ball/Sphere
-
Size:
-
0.4-0.8mm or 1.6-2.5mm
-
Nominal pore diameter:
-
10angstroms
-
Medical Oxygeen Concentration:
-
>=90%
-
Bulk Density:
-
>=0.62g/ml
Quick Details
-
CAS No.:
-
1318-02-1
-
Purity:
-
99.9%
-
Other Names:
-
Zeolite Molecular Sieve 13X HP
-
MF:
-
N/A
-
EINECS No.:
-
N/A
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
XINTAO
-
Model Number:
-
13X-HP
-
Product name:
-
zeolite molecular sieve 13X HP price for PSA oxygen concentrator
-
Keywords:
-
zeolite molecular sieve 13X HP for PSA
-
Application:
-
dryer/adsorbent
-
Model No.:
-
10A
-
Color:
-
Light Gray
-
Shape:
-
Ball/Sphere
-
Size:
-
0.4-0.8mm or 1.6-2.5mm
-
Nominal pore diameter:
-
10angstroms
-
Medical Oxygeen Concentration:
-
>=90%
-
Bulk Density:
-
>=0.62g/ml

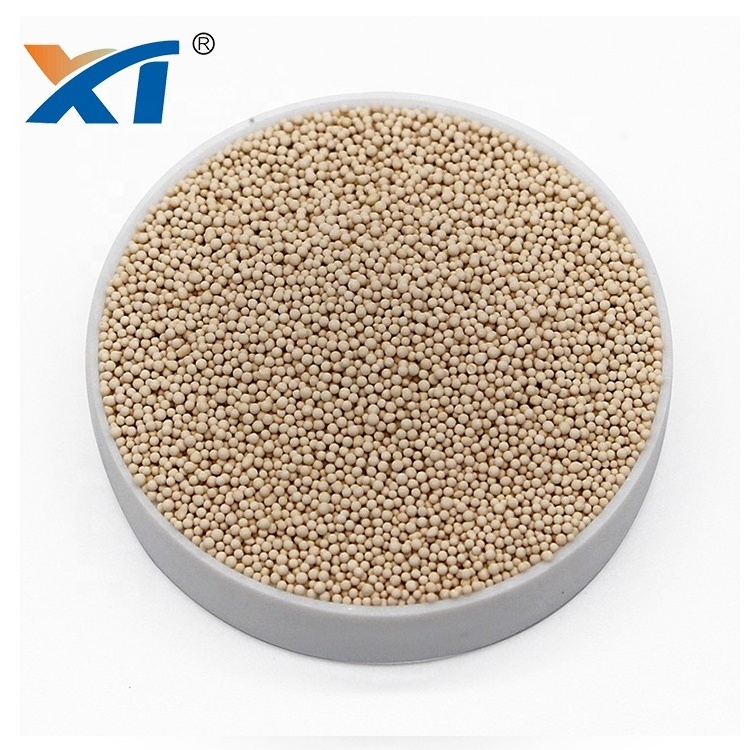

Molecular Sieve 13X HP is mainly used in PSA oxygen concentrators and oxygen concentrators device, and as well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc. Guangdong Xintao Molecular Sieve 13X HP is equal to molecular sieve jlox-501.
Technical Parameter:
| Model | 13X-HP | |
| Color | Light gray | |
| Nominal pore diameter | 10 angstroms | |
| Shape | Sphere (ball) | |
| Diameter (mm) | 0.4-0.8 | 1.6-2.5 |
| Loss on Ignition (wt%.575℃, 1hr) | ≤1.0 | ≤1.0 |
| Bulk density (g/ml) | ≥0.62 | ≥0.62 |
| Crushing strength (N) | / | ≥30/piece |
| Static H2O capacity (wt% RH60%,25℃) | ≥30 | ≥30 |
| Static CO2 capacity(wt% 250mmHg, 25℃) | ≥19.8 | ≥19.8 |
| Attrition (wt%) | ≤0.2 | ≤0.2 |
| Particle Ration (%) | ≥95 | ≥97 |
| N2 capacity(ml/g,) | ≥8 | ≥8 |
| N2/O2 Selectivity(a,) | ≥3 | ≥3 |
Hand & Storage Recommendation:
It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
Oxygen Molecular Sieve is widely used in
Industrial oxygen generating systems
Scuba oxygen tanks and bottles
Home oxygen generator equipment
Hospital oxygen supply systems
Aquaculture oxygen systems
Portable oxygen generators
Emergency oxygen systems
Ozone generators
PSA (pressure swing adsorption) oxygen generators
