Quick Details
-
Usage:
-
panna soccer
-
MOQ:
-
1 pcs
-
Product name:
-
panna soccer
-
Logo:
-
OEM Welcomed
-
Name:
-
goodbrothersports
-
Packing:
-
Carton
Quick Details
-
Place of Origin:
-
Hebei, China
-
Color:
-
dark green
-
Size:
-
customized
-
Usage:
-
panna soccer
-
MOQ:
-
1 pcs
-
Product name:
-
panna soccer
-
Logo:
-
OEM Welcomed
-
Name:
-
goodbrothersports
-
Packing:
-
Carton
1.The structure made by hot galvanized steel pipe,with good rust corrosion resistance. The surface is sprayed with ultra-resistant pure polyester powder and color will not fade for eight years.

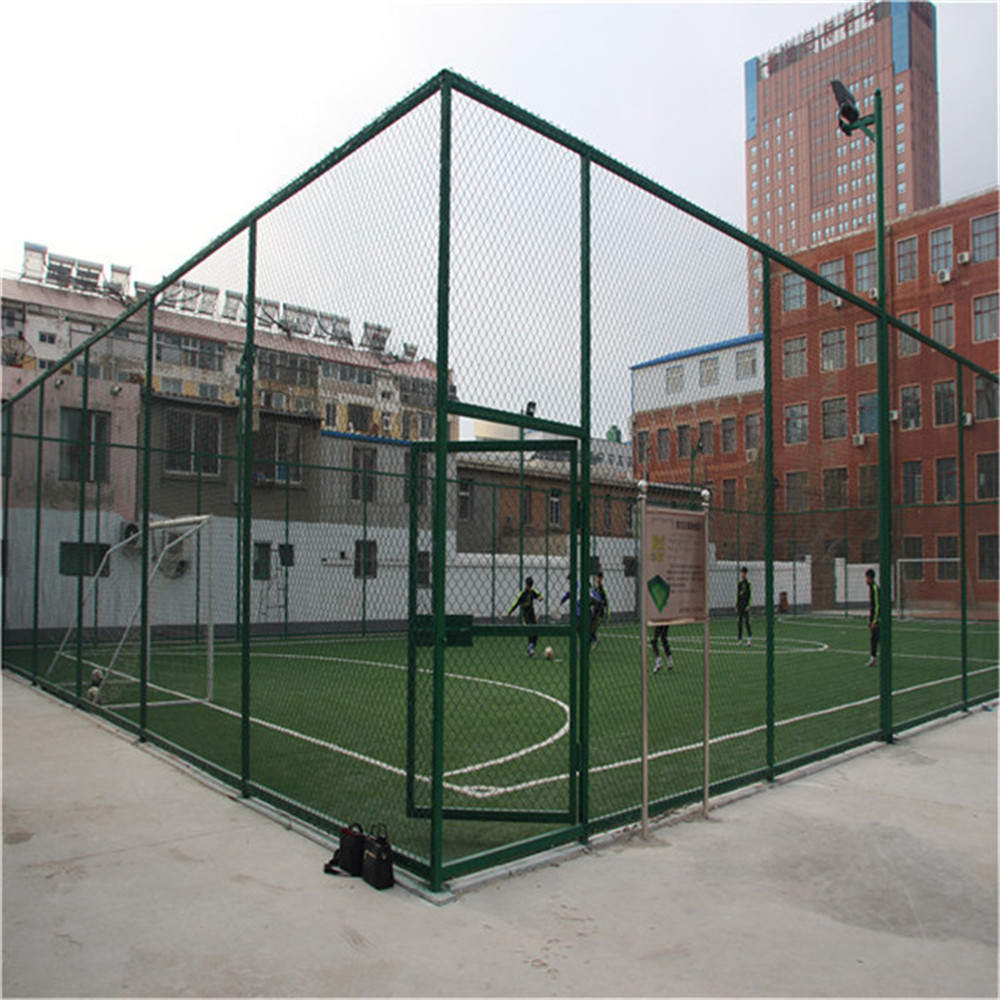

2. This type of football cage field adopts the framework beam connection method, which has advantages on installation in quick and convenient . The frame, beam, column and door can be made according to the customer's requirements. The installation can be completed finished quickly and convenient
3. The structure of football cage made by upper layer diamond fence and the lower layer welded wire mesh , which reduces the cost effectively and improves the overall strength.
4. Whether adding the top net is customized, according to adding the top beam, the top net can be laid and top net is made by woven from nylon rope.
5. One lighting stand with one lamp and one lighting stand with two lamps can be chosen from the lighting system.Enough light can be guaranteed in the night
6. The ground can be paved by artificial lawn or interlock PP floor (Various color is available) , which can improve users' experience mult i aspect
Technical data
Area size: 33.5m*18.3m
Column size (diameter * thickness): 76*3.0mm/114*3.0mm
Lamp post size (diameter * thickness): 114*3.0mm
Fence frame specifications: horizontal column: 40× 60 × 3.0mm
Cross beam profile specifications: 40*40*3mm
Mesh: weld fence /diamond fence
Cage total height: 4m
Lamp post total height: 6m (customized)
Column spacing: 3m
Products parts: fence frame, column (optional: lamp post), cross beam, lamp (one column lamp/double lamp)
Color : dark green
|
Woven net |
|||
|
specification ( mm ) |
2880× 1880 × 40 |
Total net weight |
61KG |
|
Tube specification (mm) |
Tube 40× 60 × 3.0 |
material of tube |
good quality steel |
|
material of net |
Φ5m m galvanized , mesh size 60×80 |
net fixed style |
weld in the middle of fence frame |
|
the net advantage |
good looks structure, strong and durable, resistant to impact, strong recovery after deformation |
||
|
Frame production process |
The tube blanking is carried out with a 45° notched material, and then welded on the positive and negative sides of the carbon dioxide protection welding in the special welding tooling. Finally, the weld is ground with an angle grinder to remove the welding slag. |
||
|
Frame welding advantages |
The square frame net frame produced by the above production process has a small welding deformation and a dimensional error of ± 1.5 mm, which can effectively ensure the site installation accuracy. |
||
|
Net frame and mesh connection |
The mesh was welded on 8mm thick steel bars, and the welded steel mesh was placed on the welding tooling. The mesh steel was welded in the frame of the frame, and then the weld bead was polished to remove the welding slag |
||
|
The advantages of the connection between the frame and the mesh |
Through the welding transition of the steel bar, the welding strength of the mesh sheet and the frame can be greatly improved, the impact resistance and vibration performance of the entire mesh can be enhanced, and the service life of the mesh sheet can be improved. |
||
|
The summary of the advantages of the entire network |
1. Wire mesh with wire diameter, long life 2. Mesh formation, beautiful appearance; 3. The mesh is flexible, strong resistance to impact, strong ability to recover after deformation; 4. Anti-aging, anti-corrosion after dipping; |
||
|
Finished product processing |
Integral powder impregnation or electrostatic spraying, color optional |
||
|
Productivity |
Low cost, high production efficiency, short lead times |
||
|
remarks |
Wire diameter, mesh size can be customized according to the requirements of production |
||
1. Sample is available for free
2. ODM&OEM are welcome
3. MOQ can be changed if you want to test the market
