Quick Details
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
THL
-
Warranty:
-
12 Months

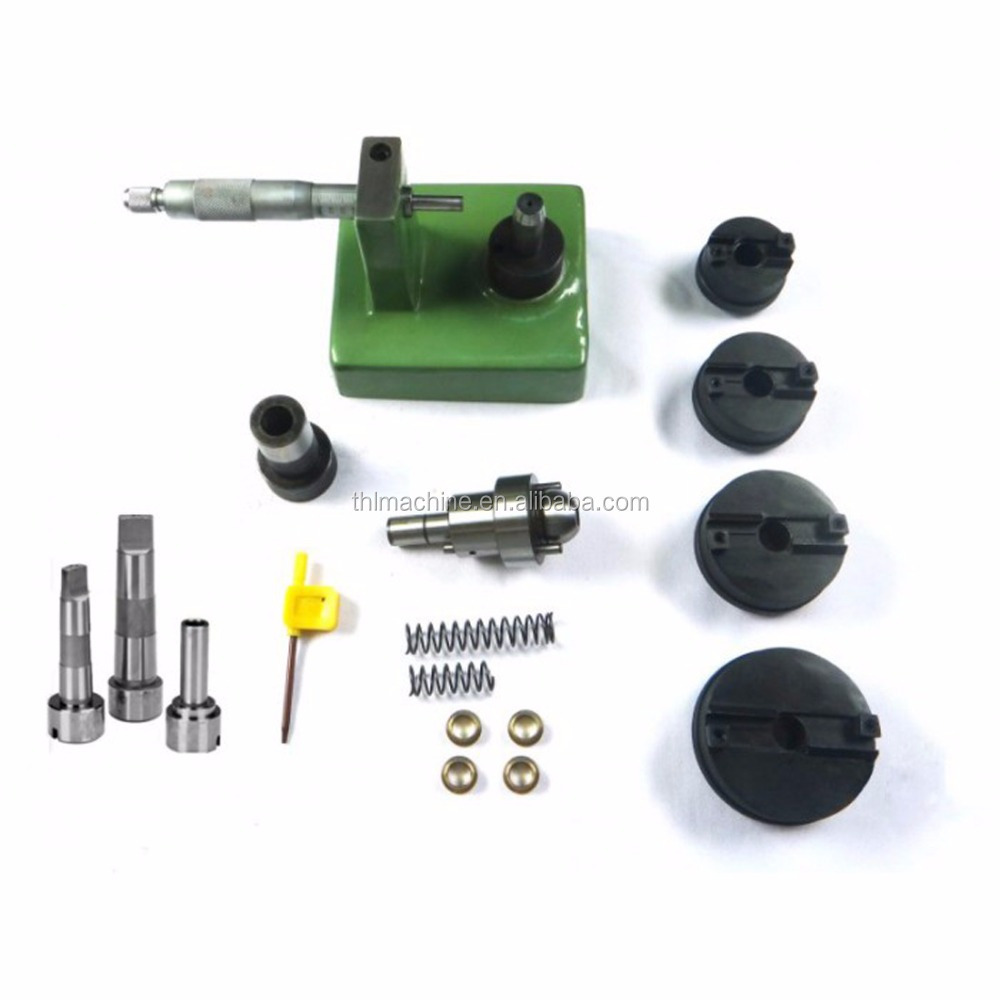

Seat pocket cutting kit VGS-300
Ball driver 1”
Fit .389” .385” .375” pilot
VGS300-389
VGS300-385
VGS300-375
| Part No. | Descriptions |
| ASPC-1500 | Seat Pocket Cutter Head 1.5-1.687 in. (38.1-42.9mm)Range |
| ASPC-1687 | Seat Pocket Cutter Head 1.687-1.875 in. (42.9-47.6mm)Range |
| ASPC-1875 | Seat Pocket Cutter Head 1.875-2.062 in. (47.6-52.4mm)Range |
| ASPC-2062 | Seat Pocket Cutter Head 2.062-2.25 in. (52.4-57.1mm)Range |
| VGS-325-389 | Cutter Head Driver for .389 in.(9.88mm)Pilot |
| VGS-325-385 | Cutter Head Driver for .385 in.(9.78mm)Pilot |
| VGS-325-375 | Cutter Head Driver for .375 in.(9.525mm)Pilot |
| VGS-410A | Pocket Cutter Setting Fixture with Setting Standard |
| PSP-215A | Short Spring |
| PSP-216A | Long Spring |
| VSC-509A | Spring Bushing(4) |
| PWM-5A | Hex T-Wrench |
Cutter Heads Available
|
|
ASPC-937 |
.937"- 1.031" (23.8 mm-26.2 mm) |
|
|||
|
|
ASPC-1031 |
1.031"-1.125" (26.2 mm-28.6 mm) |
|
|||
|
|
ASPC-1125 |
1.125"-1.218" (28.6 mm-30.9 mm) |
|
|||
|
|
ASPC-1218 |
1.218"-1.312" (30.9 mm-33.3 mm) |
|
|||
|
|
ASPC-1312 |
1.312"-1.500"(33.3 mm-38.1 mm) |
|
|||
|
|
ASPC-1500* |
1.500"-1.687" (38.1 mm-42.8 mm) |
|
|||
|
|
ASPC-1687* |
1.687"-1.875"(42.8 mm-47.6 mm) |
|
|||
|
|
ASPC-1875* |
1.875"-2.062" (47.6 mm-52.4mm) |
|
|||
|
|
ASPC-2062* |
2.062"-2.250"(52.4 mm-57.1 mm) |
|
|||
|
|
ASPC-2250 |
2.250"-2.437"(57.1 mm-61.9 rmm) |
|
|||
|
|
ASPC-2437 |
2.437"-2.625" (61.9 mm-66.7 mm) |
|
|||
|
|
ASPC-2625 |
2.625"-2.812" (66.7 mm-71.4 mm) |
|
|||
|
|
ASPC-2812 |
2.812"-3.000" (71.4 mm-76.2 mm) |
|
|||
|
|
|
|
||||
|
ADAPTERS |
DESCRIPTION |
|
||||
|
AD-MS3 |
#3 Morse Taper Drive Adapter |
|
||||
|
AD-MS4 |
#4 Morse Taper Drive Adapter |
|
||||
|
AD-4SS |
Bridgeport & DCM Drive Adapter |
|
||||
