Quick Details
-
Model Number:
-
12V 60AH
-
Battery Size:
-
Solar energy storage battery
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
4.5kg
-
Battery type:
-
18650 NCM lithium-ion battery cell
-
Product name:
-

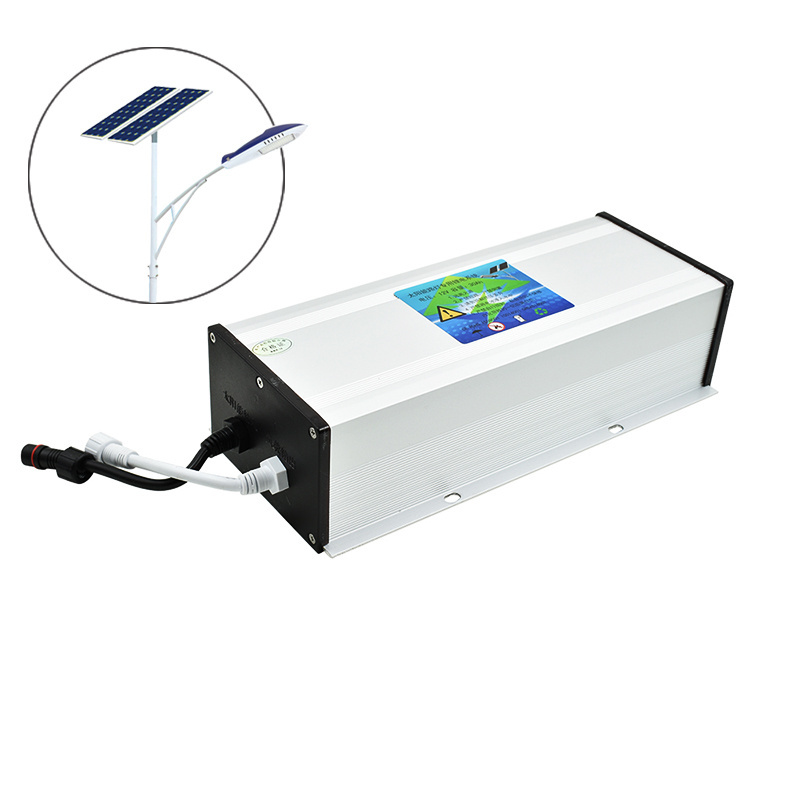

12V Split-type solar street light battery pack(NCM battery)
-
Capacity:
-
15AH-120AH
-
Voltage:
-
12V/24V
-
Warranty:
-
2years, 2 years
-
Keywords:
-
Li Ion Battery
-
Usage:
-
Solar Energy Storage Systems
-
MQQ:
-
1sets
-
OEM/ODM:
-
Welcomed
-
Certification:
-
RoHS
Quick Details
-
Anode Material:
-
NCM
-
Application:
-
solar street light battery
-
Brand Name:
-
SIPANI
-
Model Number:
-
12V 60AH
-
Battery Size:
-
Solar energy storage battery
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
4.5kg
-
Battery type:
-
18650 NCM lithium-ion battery cell
-
Product name:
-
12V Split-type solar street light battery pack(NCM battery)
-
Capacity:
-
15AH-120AH
-
Voltage:
-
12V/24V
-
Warranty:
-
2years, 2 years
-
Keywords:
-
Li Ion Battery
-
Usage:
-
Solar Energy Storage Systems
-
MQQ:
-
1sets
-
OEM/ODM:
-
Welcomed
-
Certification:
-
RoHS
Your Lithium Battery
Hot-sale Products
| Parameter of 12V Split-type solar street light battery pack(NCM battery) | |||||||||||
| Battery pack | Battery specification | 11.1V10AH~ 30AH | 11.1V40AH~ 60AH | 11.1V70AH~90AH | 11.1V100AH | ||||||
| Cell type | 18650 NCM lithium-ion battery cell | ||||||||||
| Cell capacity | 2500mAh | ||||||||||
| Norminal voltage | 11.1V | ||||||||||
| Norminal capacity | 10AH | 20AH | 30AH | 40AH | 50AH | 60AH | 70AH | 80AH | 90AH | 100AH | |
| Cell layout | 3S4P | 3S8P | 3S12P | 3S16P | 3S20P | 3S24P | 3S28P | 3S32P | 3S36P | 3S40P | |
| BMS current | 15A | ||||||||||
| Cycle life | 800~1000 cycles | ||||||||||
| Depth of discharge | ≥97% | ||||||||||
| Charge cut-off votltage | 12.6V | ||||||||||
| Discharge cut-off votltage | 8.4V | ||||||||||
| Solar input | Advised PV input power | 20~40W | 40~60W | 60~80W | 80~100W | 100~130W | 120~160W | 140~200W | 160~240W | 180~230W | 200~250W |
| PV input voltage | 18V | ||||||||||
| Controller | Charge method | PWM | |||||||||
| Discharge method | plat/rise voltage, continuous current | ||||||||||
| Charge current | 15A(MAX) | ||||||||||
| Discharge current | 3.3A(MAX) | ||||||||||
| load(LED-1W) | 12V:5~18 series | ||||||||||
| Output voltage | 12V:15~55V | ||||||||||
| Dimming value | 10%~90% | ||||||||||
| Working mode | Programmable, works 8 hrs per night, 3hrs*80%+3hrs*40%+2hrs*20%(load power) | ||||||||||
| Load | Advised load power | 10W | 10W | 20W | 20W | 30W | 30W | 40W | 40W | 50W | 60W |
| Voltage platform | 12V | ||||||||||
| Advised pole height | 3m | 3m | 4m | 4m | 6m | 6m | 8m | 8m | 10m | 12m | |
| Continuous working days | 2 days | ||||||||||
| Other info | Working temperature | -20℃~+60℃ | |||||||||
| Warranty | 2 years | ||||||||||
| IP level | IP65 | ||||||||||
| Weight(Approx) | 1.4kg | 2kg | 2.6kg | 3.2kg | 3.9kg | 4.5kg | 5.2kg | 5.8kg | 6.5kg | 7kg | |
|
Shell size |
Plastic & A luminum; Consult our sales rep for specific dimension | ||||||||||
| Input terminal | 2pin, 2*1.5mm2, 15cm long, male connector | ||||||||||
| Output terminal | 4pin, 4*0.75mm2, 15cm long, male connector | ||||||||||
| Accessory | PV cable | 2pin, 2*1.5mm2, 50cm long, female connector | |||||||||
| Load cable | 4pin, 4*0.75mm2, 250cm long, male connector | ||||||||||
