Quick Details
-
Tolerance:
-
±1%
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
Superior Metal Material Co.,
-
Model Number:
-
V shape / L shape
-
Application:
-
Building structure, bridge construction, machinery
-
Product name:
-
Steel Angle Bar
-
Shape:
-
L-section,V-section
-
Technique:
-
Hot Rollled
-
Surface:
-
Mill,Black/grey painted,galvanizing
-
Material:
-
Mild Carbon Steel
-
Size:
-
25x25x2.5mm-250x250x35mm
-
Length:
-
1-12m cutting service available
-
MOQ:
-
5 Tons
-
Payment:
-
T/T,L/C(30%deposit)
-
Delivery time:
-
15- 21 days
Quick Details
-
Standard:
-
EN
-
Grade:
-
S235JR-S335JR Series
-
Type:
-
Equal
-
Tolerance:
-
±1%
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
Superior Metal Material Co.,
-
Model Number:
-
V shape / L shape
-
Application:
-
Building structure, bridge construction, machinery
-
Product name:
-
Steel Angle Bar
-
Shape:
-
L-section,V-section
-
Technique:
-
Hot Rollled
-
Surface:
-
Mill,Black/grey painted,galvanizing
-
Material:
-
Mild Carbon Steel
-
Size:
-
25x25x2.5mm-250x250x35mm
-
Length:
-
1-12m cutting service available
-
MOQ:
-
5 Tons
-
Payment:
-
T/T,L/C(30%deposit)
-
Delivery time:
-
15- 21 days

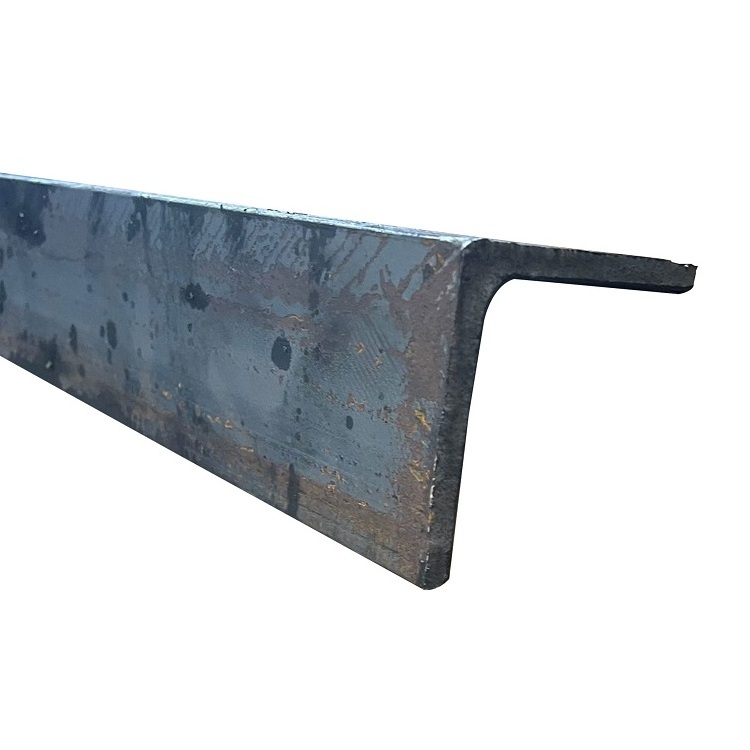

Angle steel refers to a long strip of metal material with an angular section. Common shapes include right angles and equal corners. Carbon steel Angle steel is usually used in construction, manufacturing, Bridges and other fields, because of its high strength, good corrosion resistance and relatively low cost is widely used.
Product Description
|
Product name
|
MS steel angle / Carbon steel angle bar
|
|
|
|
|||
|
Standard and Grade
|
ASTM A36/A36M
EN 10025 :S235JR、S235J0、S235J2、S275JR、S275J0、S275J2、S355JR、S355J0、S355J2、S355K2
JIS G3101 :SS330、SS400、SS490、SS540
DIN 17100 : St33、St37-2、St37-3U、St37-3N、St44-2、St44-3U、St44-3N、St52-3、St52-3U、St52-3N
GB/T 706 : Q195 Q215 Q235
|
|
|
|
|||
|
Size
|
Equal angle:thickness 3-35mm,20x20mm-250x250mm
Unequal angle:thickness 3-24mm,25x16mm-200x150mm
Length:6m,9m,12m/1-12m cutting service provided.
|
|
|
|
|||
|
Section type
|
Equal angles/V-shape or Unequal angles/L-shape
|
|
|
|
|||
|
Included Angle
|
45°，90°，135° or as customers request.
|
|
|
|
|||
|
Technique
|
Hot rolled / Cold rolled
|
|
|
|
|||
|
Surface
|
Unthreated(black or grey),galvanized,painted or powder coated,phosphating etc.
|
|
|
|
|||
|
Size
|
Equal angle: thickness 3-35mm,20x20mm-250x250mm or customized
Unequal angle:thickness 3-24mm,25x16mm-200x150mm or customized
Length:6m,9m,12m or customized
|
|
|
|
|||
|
Applications
|
1.
Building frames, supporting structures, beams, columns and platforms, etc
|
|
|
|
|||
|
|
2.Piers, beams and other structural parts of Bridges
|
|
|
|
|||
|
|
3.Machine tools, conveying equipment, lifts, auto parts, etc
|
|
|
|
|||
|
|
4.A power tower that supports the transmission of electricity
|
|
|
|
|||
|
|
5.In shipbuilding industry, it is used to construct hull frame, keel, ship plate support, etc
|
|
|
|
|||
|
Packing
|
Waterproof paper, and steel strip packed.
(1)20foot GP:5.8m(length)*2.13m(width)*2.18m(high) about 24-26 CBM
(2)40foot GP:11.8m(length)*2.13m(width)*2.72m(high) about 68 CBM
|
|
|
|
|||
