- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Copeland
-
Model Number:
-
4MA1-220/X
-
Power:
-
22HP
-
Refrigerant:
-
R404A
-
Brand:
-
Copeland
-
Original:
-
100% Original
-
MOQ:
-
1Piece
-
Displacement:
-
50Hz:61.7 60Hz:74.5
-
Number of Cylindres:
-
4
-
Oil Quantity:
-
3.3
Quick Details
-
Type:
-
Refrigeration Compressor
-
Application:
-
Refrigeration Parts
-
Weight (KG):
-
70
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Copeland
-
Model Number:
-
4MA1-220/X
-
Power:
-
22HP
-
Refrigerant:
-
R404A
-
Brand:
-
Copeland
-
Original:
-
100% Original
-
MOQ:
-
1Piece
-
Displacement:
-
50Hz:61.7 60Hz:74.5
-
Number of Cylindres:
-
4
-
Oil Quantity:
-
3.3
Product Description

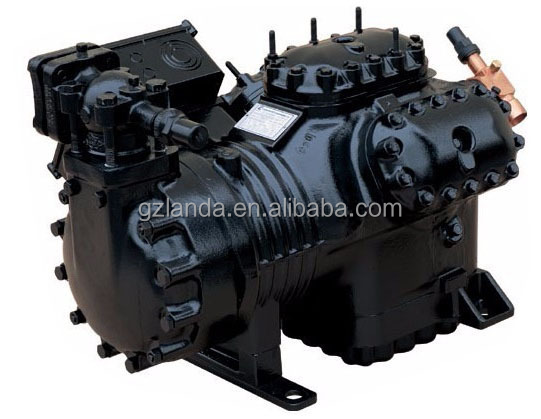

Introduction to Copeland Compressor
Copeland is divided into a semi enclosed drum compressor and a Copeland vortex compressor. Copeland is the pioneer of semi enclosed compressors. In 1941, they invented the world's first semi enclosed compressor and have rich manufacturing and service experience.
1. High volumetric efficiency: The pressure difference between the crescent-shaped spaces adjacent to the scroll compressor is small, the leakage is small, there is no suction and exhaust valve, the resistance is small, and there is no re-expansion of the volume of the free space. High thermal insulation efficiency. Under the same cooling capacity, the scroll compressor is about 10% higher than the reciprocating type. Low noise and low vibration . Copeland compressors have a solid cast iron body to provide a large heat dissipation area to improve the cooling effect of the compressor, and use light-weight Lu pistons to reduce friction and vibration, and have a cutting-edge electronic protective film to provide comprehensive motor protection.
The power range of the entire series of products covers 2HP-50HP, with a wide range of applications, but the conditions are relatively strict.
According to the different refrigerants applicable, Copeland vortex compressors are divided into many series, including VR/ZR series, VP/ZP series, and ZW series. The Copeland VR/ZR series vortex compressors are suitable for R22, R407C, and R134a refrigerants, the Copeland VP/ZP series vortex compressors are suitable for
R404A
refrigerants, and the Copeland ZW series vortex compressors are suitable for heat pump hot water.
Copeland Compressor Applications.
Copeland compressors can form air-cooled compression condensing units. Copeland compressors can be used as the main component of various refrigeration devices, applied to various freezing and refrigeration equipment. Depending on the needs or the use of different refrigerants, they can obtain various temperatures required for fruit and vegetable preservation, food quick freezing or refrigeration. This unit can be widely used in various industries such as commerce, tourism, service, food industry, pharmaceutical and chemical industry.
Specification
|
Item
|
Value
|
|
Voltage (V)
|
380~400V
|
|
Refrigerant
|
4MA1-220/X
|
|
Nominal power (HP)
|
22HP
|
|
Number of Cylindres
|
4
|
|
Displacement(m³/h)
|
50Hz:61.7 60Hz:74.5 m³/h
|
|
Oil Quantity(L)
|
3.3L
|
|
COP
|
3
|
