Dura Fence Metal Panels Palisade Roller Forming Machine

Dura Fence Metal Panels Palisade Roller Forming Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

≥10 Sets

US $12000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rolling thinckness:: 0.3-0.8mm

Place of Origin:: Hebei, China

Brand Name:: TIANYU

Voltage:: 380V

Dimension(L*W*H):: 6000*1400*1500mm

Weight:: 3200 kg

Feeding width:: 175mm, 1000mm

Marketing Type:: New Product 2024

Product name:: Roll Forming Machine

After-sales Service Provided:: Video Technical Support

Usage:: Building Roof

Raw material:: Galvanized Steel Sheet

Roller material:: 45#steel Chrome Plated

Cutting blade material:: Cr 12Mov

Keywords:: Making Tiles Machine

Shaft material:: 45# Steel Outer Diameter: 70mm

Color:: Customized Color

Quick Details

Type:: Tile Forming Machine

Tile Type:: Steel

Production Capacity:: 30 m/min

Rolling thinckness:: 0.3-0.8mm

Place of Origin:: Hebei, China

Brand Name:: TIANYU

Voltage:: 380V

Dimension(L*W*H):: 6000*1400*1500mm

Weight:: 3200 kg

Feeding width:: 175mm, 1000mm

Marketing Type:: New Product 2024

Product name:: Roll Forming Machine

After-sales Service Provided:: Video Technical Support

Usage:: Building Roof

Raw material:: Galvanized Steel Sheet

Roller material:: 45#steel Chrome Plated

Cutting blade material:: Cr 12Mov

Keywords:: Making Tiles Machine

Shaft material:: 45# Steel Outer Diameter: 70mm

Color:: Customized Color

Product Overview

FEATURES AT A GLANCE

Strong 350H steel frame

Simple operation method

45# steel hard chrome plted and polished roller

Thickened Cr12 blade

Delta brand touchscreen operating panel

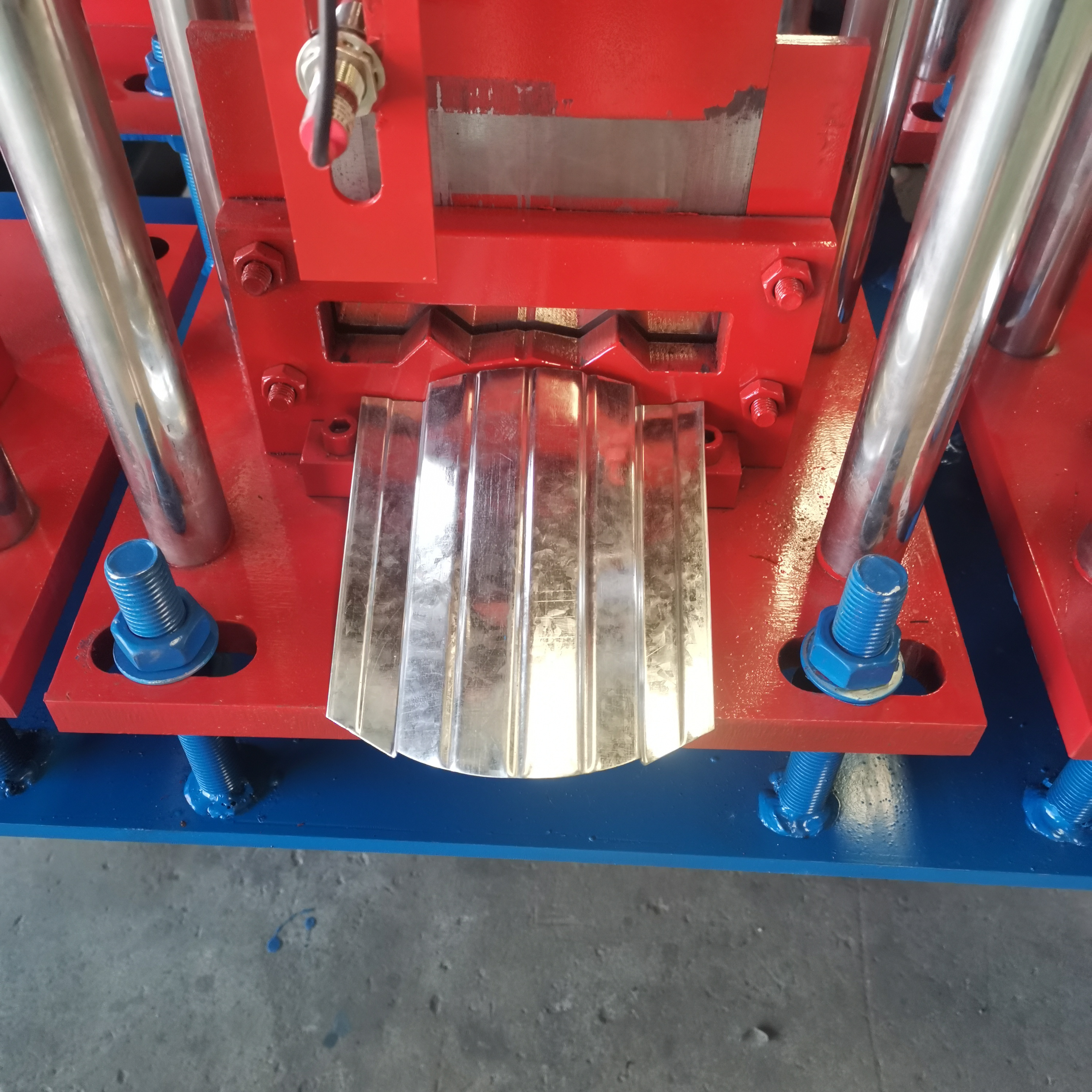

Machine exit details

PRODUCT SPECIFICATIONS

No	Item	Data
1	Thickness	0.3-0.7mm
2	Width	175mm(customized)
3	Main frame	350H beam structure
4	Material of rollers	45# steel finishing, hard chrome plated surface after polishing
5	Forming stations	13 stations
6	Diameter of shafts	Φ70mm solid shaft
7	Material of shafts	45# steel finishing and tempering treatment
8	Forming speed	About10-12m/min
9	Voltage	380V
10	Transmission way	1 inch chain, sprocket drive
11	Main motor	Hydraulic motor drive5.5KW
12	Cutting blade material	Cr12 Heat treatment, thickened, high wear-resistant blade
13	Electronic control system	Split operation panel touch screen(Can set batch, length, quantity, etc.)

PRODUCT CONFIGURATION

Solid shaft is used.
After chromed and quenched.
high quality and stable structure.

The large frame adopts 350H steel to be stable and strong

With cooling system for long service time
