- Product Details
- {{item.text}}
Quick Details
-
Working Temperature(℃):
-
-30/+60℃
-
Test Pressure(bar):
-
250bar
-
Diameter(mm):
-
152
-
Color:
-
Red
-
Parts Included:
-
Brass Valve,Hose,Hook,Dip Tube
-
Discharge Range(m):
-
2-5m
-
Working Pressure(bar):
-
174bar
-
Height(mm):
-
810
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Type:
-

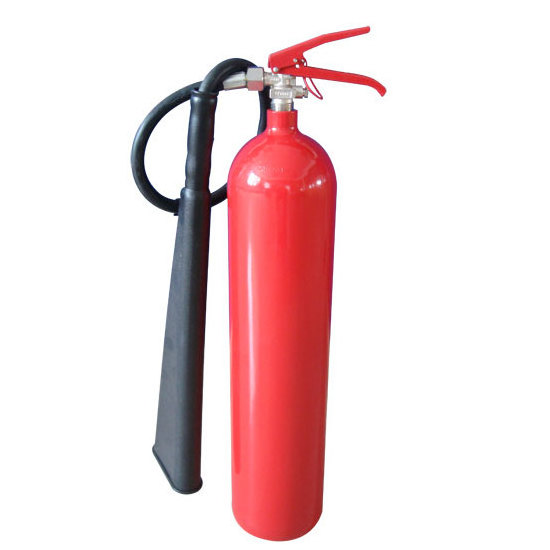

Carbon Steel fire extinguisher
-
Discharge Time(s):
-
6-9S
-
Working Temperature(℃):
-
-30/+60℃
-
Test Pressure(bar):
-
250bar
-
Diameter(mm):
-
152
-
Color:
-
Red
-
Parts Included:
-
Brass Valve,Hose,Hook,Dip Tube
-
Discharge Range(m):
-
2-5m
-
Working Pressure(bar):
-
174bar
-
Height(mm):
-
810
Fire Extinguisher
| MT1.3KG | MT2KG | MT2.3 | MT3 | MT4 | MT4.5KG | MT5 | MT6 | MT7 | MT9 | |
| Out-diameter | 108mm | 114mm | 114mm | 133mm | 152mm | 152mm | 152mm | 152mm | 152mm | 152mm |
| Volume | 1.95L | 3L | 3.45L | 4.5L | 6L | 6.75L | 7.5L | 9L | 10.5L | 13.5L |
| Cylinder Legth | 315mm | 415mm | 465mm | 445mm | 465mm | 515mm | 560mm | 655mm | 750mm | 940mm |
| Cylinder | 3.7kg | 5kg | 5.6kg | 7.2kg | 9.6kg | 10.5kg | 11.4kg | 13kg | 14.8KG | 18.3KG |
| eight | ||||||||||
| Extinguisher | 5.6kg | 7.6kg | 8.5kg | 10.8kg | 14.5kg | 15.9kg | 17.3kg | 19.9kg | 22.7KG | 28.2KG |
| Weight | ||||||||||
| Filling Weight | 1.3KG | 2KG | 2.3KG | 3KG | 4KG | 4.5KG | 5KG | 6KG | 7KG | 9KG |
| Temperature | ~30°C ~ | ~30°C ~ | ~30°C ~ | ~30°C ~ | ~30°C ~ | ~30°C ~ | ~30°C ~ | ~30°C ~ | ~30°C ~ | ~30°C ~ |
| Range | 60°C | 60°C | 60°C | 60°C | 60°C | 60°C | 60°C | 60°C | 60°C | 60°C |
| Working Pressure | 174bar | 174bar | 174bar | 174bar | 174bar | 174bar | 174bar | 174bar | 174bar | 174bar |
| Test Pressure | 250BAR | 250BAR | 250BAR | 250BAR | 250BAR | 250BAR | 250BAR | 250BAR | 250BAR | 250BAR |
| Min | 4.0mm | 4.0mm | 4.0mm | 4.5mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm |
| wall-thickness | ||||||||||
| Material | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carbon Steel | Carton Steel | Carton Steel | Carbon Steel | Carbon Steel | Carbon Steel |
| Fire Rating | 21B | 34B | 34B | 34B | 70B | 70B | 89B | 89B | 113B | 113B |
| Packing Size(cm) | 16*12*44 | 16*13*54 | 16*13*59 | 17*15*57 | 21*17*59 | 21*17*64 | 21*17*68 | 21*17*78 | 21*17 | 21*17 |
| *87cm | *106cm |
