Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Autolaser
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REDSAIL
-
Weight (KG):
-
420 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ce
-
Control System:
-
32 Bit DSP
-
Laser Power:
-
CO2 80W
-
Drive type:
-
Stepper Motor
-
Resolution:
-
2500DPI
-
Rotary attachment:
-
Optional
-
Interface:
-
USB3.0 and USB Disk
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1000mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300*900mm
-
Cutting Thickness:
-
0-20mm
-
Control Software:
-
Autolaser
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REDSAIL
-
Weight (KG):
-
420 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ce
-
Control System:
-
32 Bit DSP
-
Laser Power:
-
CO2 80W
-
Drive type:
-
Stepper Motor
-
Resolution:
-
2500DPI
-
Rotary attachment:
-
Optional
-
Interface:
-
USB3.0 and USB Disk
Product description:

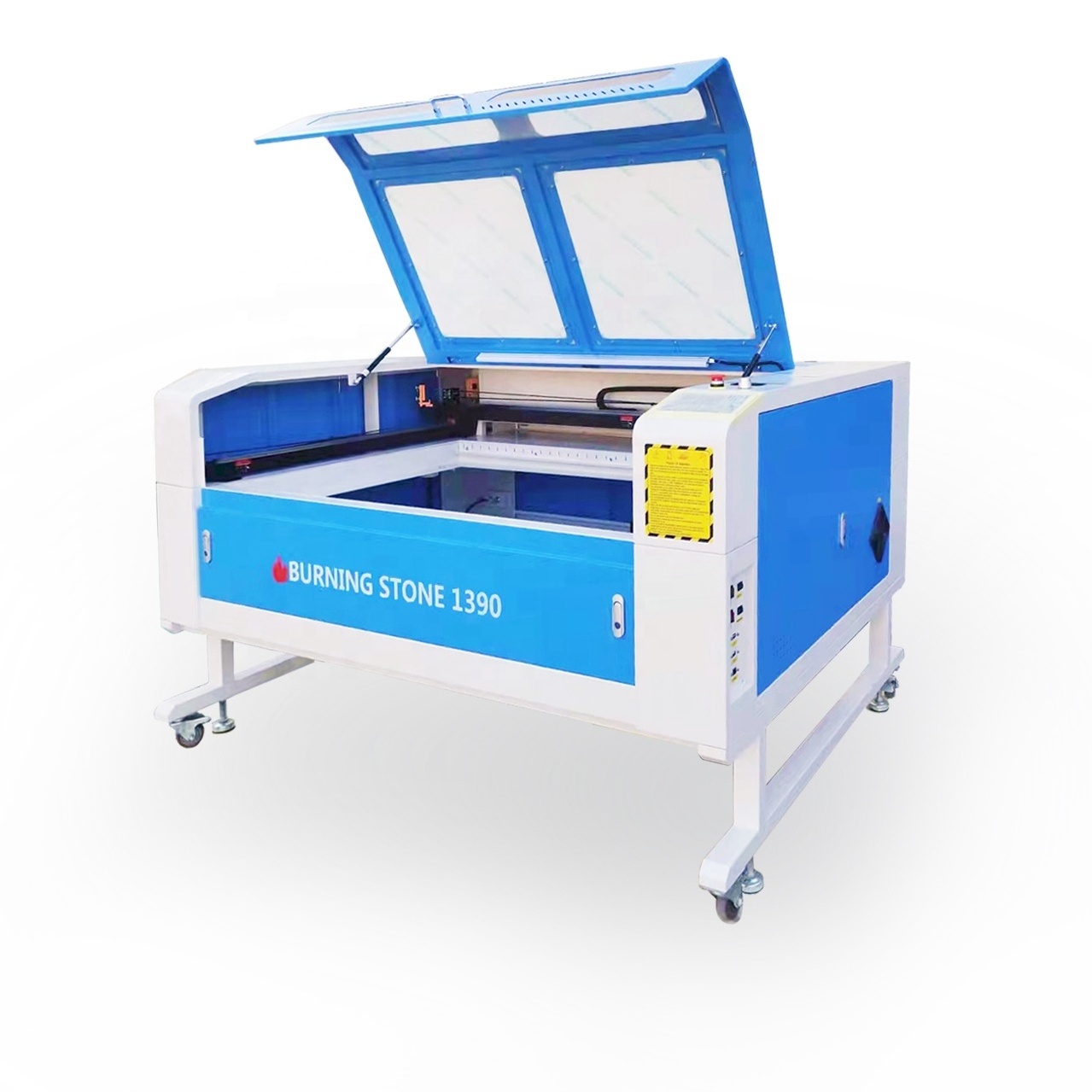

Redsail Laser Cutting Machine work with Co2 Laser, it is used for cutting wooden plate, acrylic, paper, plastic, rubber and other no-metal materials for complex shape.
Redsail low cost Laser Cutter is useful in many products such as air plane model, advertisement, decoration, article gifts, toys,and face guard of machine.
Redsail Laser Cutting Machine work with Co2 Laser, it is used for cutting wooden plate, acrylic, paper, plastic, rubber and other no-metal materials for complex shape.
Redsail low cost Laser Cutter is useful in many products such as air plane model, advertisement, decoration, article gifts, toys,and face guard of machine.
Product Description
Products Advantages:
-High speed wheel motion system, equipped with speed-down, micro-step stepper motors, make the cutting more smooth and running more stable.
-Equipped with high-speed DSP control system, USB3.0 interface directly, can support AutoCAD,Coreldraw and etc output directly.
-High power CO2 laser tube.
-Equipped with imported reflective optics and focus optics.
-Optional honeycomb platform, red dot pointer, and big power laser tube.
-With CE certificate.
-High speed wheel motion system, equipped with speed-down, micro-step stepper motors, make the cutting more smooth and running more stable.
-Equipped with high-speed DSP control system, USB3.0 interface directly, can support AutoCAD,Coreldraw and etc output directly.
-High power CO2 laser tube.
-Equipped with imported reflective optics and focus optics.
-Optional honeycomb platform, red dot pointer, and big power laser tube.
-With CE certificate.
Specification
|
Model
|
CM1390E
|
|
Laser tube
|
Water cooling Co2 sealed glass
|
|
Control system
|
DSP
|
|
Drive type
|
Micro Stepping Motor
|
|
Laser Power
|
80W/100W/130W/150W/180W
|
|
Work Area (mm)
|
1300 x 900
|
|
Max speed
|
1000 mm/s
|
|
Image form
|
Plt, Dxf, Bmp, Ai, Dst
|
|
Resolution
|
2500 DPI
|
|
Controller
|
Ruida(RDWorks)/TopWisdom(AutoLaser)
|
|
PC Interface
|
USB3.0/ USB Disk/NetWork
|
|
Red Dot Pointer
|
Yes
|
|
Location precision
|
<0.01mm
|
|
Motorized Up and Down table
|
200mm
|
|
Accessories
|
Air assistant, Exhaust system, Water cooling sytem
|
|
Power
|
110V or 220-240V/ 50-60Hz
|
|
Machine Dimension
|
1780*1340*1060(mm)
|
|
N. W. (Kg)
|
380
|
|
G. W. (Kg)
|
420
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
