1. Inserted type, easy to install.
2. Continuous on-line measurement
3. No moving parts, maintenance-free
4. Specific conditions do anti-corrosion design
5. Temperature compensation
6. Explosion-proof certificate（Exd II CT4）
7. Do long rod type design（max can do 2m）
8. Suitable for high pressure piping（max pressure 20Mpa）
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Shelok
-
Model Number:
-
YMF-886
-
Material:
-
SS304/316L
-
Dimension:
-
Custom
-
Measurement range:
-
0 ~ 3 g / cm3 optional
-
Output:
-
4-20 mA signal (4-wire system)
-
Accuracy:
-
0.3% (real-time range) or 0.001 g / cm3 whichever is greater.
-
Resolution:
-
0.0001 g / cm3
-
Application range:
-
-30-120 degree
-
Maximum working pressure:
-
20MPa
-
Protection level:
-
IP65
-
Fork body material:
-
stainless steel 316, Hastelloy C22, manganese alloy 400
-
Accessory:
-
Can choose temperature of 4-20 mA output signal.
-
Fork body coating:
-
Standard type, PTFE or electrolytic polishing
Quick Details
-
Warranty:
-
1 year
-
Type:
-
Explosion-proof insert tuning fork densitometer
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Shelok
-
Model Number:
-
YMF-886
-
Material:
-
SS304/316L
-
Dimension:
-
Custom
-
Measurement range:
-
0 ~ 3 g / cm3 optional
-
Output:
-
4-20 mA signal (4-wire system)
-
Accuracy:
-
0.3% (real-time range) or 0.001 g / cm3 whichever is greater.
-
Resolution:
-
0.0001 g / cm3
-
Application range:
-
-30-120 degree
-
Maximum working pressure:
-
20MPa
-
Protection level:
-
IP65
-
Fork body material:
-
stainless steel 316, Hastelloy C22, manganese alloy 400
-
Accessory:
-
Can choose temperature of 4-20 mA output signal.
-
Fork body coating:
-
Standard type, PTFE or electrolytic polishing

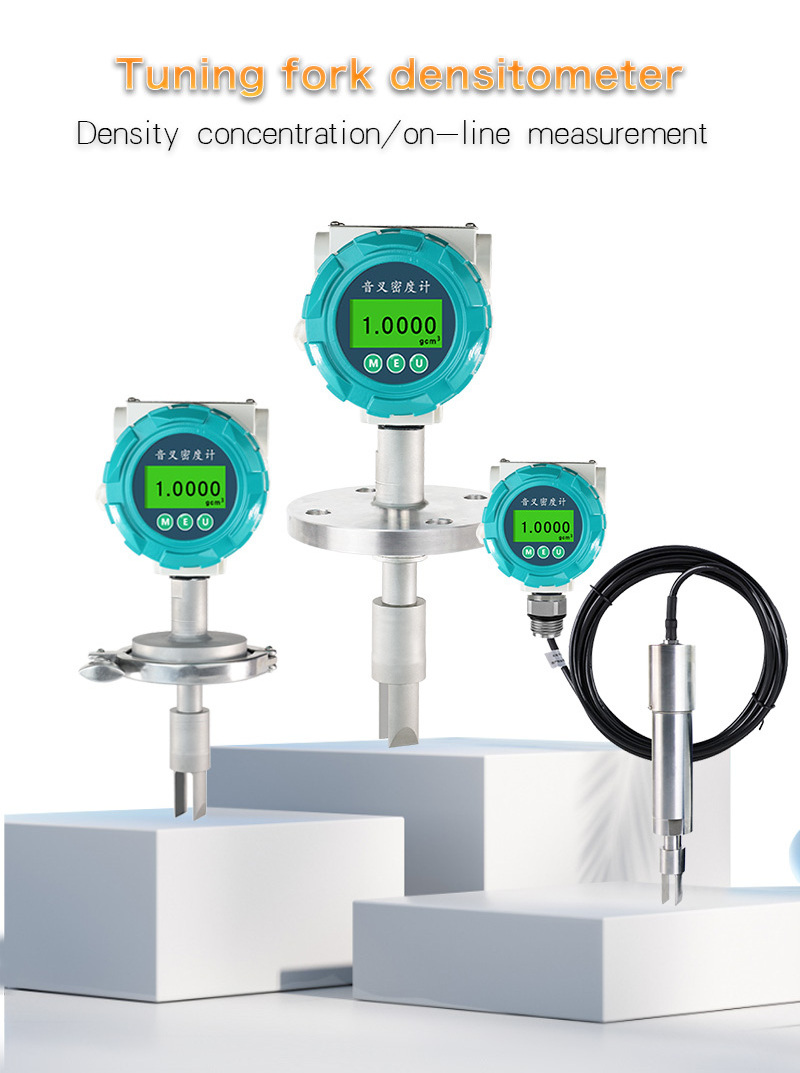

Explosion Proof Insertion Digital Online 4-20mA RS485 Tuning Fork Slurry Density Sensor with high precision, high applicability via introducing foreign advanced frequency tracking technology. Product design adopts plug-in mounting, widely used in medium
density measurement in pipelines, open tank containers and closed tank containers. Explosion Proof Insertion Digital Online 4-20mA
RS485 Tuning Fork Slurry Density Sensor is composed of two piezoelectric crystals, one piezoelectric crystal is used for
generating vibration, the other piezoelectric crystal is used for measuring vibration, fork sensor built-in temperature sensor,
provides temperature compensation.for piezoelectric crystal vibration.
|
Name
|
Explosion Proof Insertion Digital Online 4-20mA RS485 Tuning Fork Slurry Density Sensor
|
|
Measure range
|
0–3g/cm3 (3 /2.5/ 2 /1.5/ 1) (0 – 3000 kg/m3)
|
|
Accuracy
|
±0.001g /cc (±1 kg/m3)
|
|
Operating temperature
|
-50℃ ~ +200℃
|
|
Max work temperature
|
20MPa
|
|
Fluid viscosity range
|
0 – 20000 cP
|
|
Temperature coefficient
|
0.1 kg/m3/℃
|
|
Pressure influence
|
Can be ignored
|
|
Built in temperature sensor
|
PT100
|
|
Wetted part material
|
Stainless steel, Hastelloy C22, manganese alloy 400, titanium alloy, etc.
|
|
Fork body coating
|
Standard type, PTFE or electrolytic polishing
|
|
Power supply
|
20–28 VDC，35–45 mA
|
|
Analog signal output
|
4-20 mA, isolated, non self powered
|
|
Output accuracy
|
±0.1%FS, ±0.05%FS (20℃)
|
|
Output repeatability
|
± 0.05% FS @ (-40~ 85℃)
|
|
Process connection
|
1.5"NPT threaded connections; din 50 PN40 and PN100 flange connections;
|
|
Insertion depth
|
125mm~2000mm (from flange to the end of the fork)
|
|
Display
|
Density value(kg/cubic meter or g/cc) showed at upper screen, the temperature showed at lower screen.
|
|
Accessory
|
Can choose temperature of 4-20 mA output signal.
|
|
Protection
|
IP65
|
Feature of Tuning Fork Slurry Density Sensor
Strength of Tuning Fork Slurry Density Sensor
1.Application for high precision density measuring, mainly used in power plant.
2.Can not be affected by temperature, pressure and flow rate, there are few factor that can affecting measuring accuracy.
2.Can not be affected by temperature, pressure and flow rate, there are few factor that can affecting measuring accuracy.
