Quick Details
-
Brand Name:
-
Nanyang
-
Machinery Capacity:
-
400l/time
-
Machinery Function:
-
vegetable filings frying, nuts processing frying, mixing scraping and frying
-
Product name:
-
500L multi-claws gas heating planetary jacketed kettle
-
Application:
-
vegetable and nuts frying
-
Function:
-
frying and cooking and processing
-
Material:
-
304 Stainless Steel and sus316
-
Heating method:
-
gas heating
-
Keywords:
-
multi-claws, scrap wall and side and bottom
-
Raw material:
-
spicy food
-
Usage:
-
spicy food processing and frying
-
Voltage:
-
3 phase customized power voltage
-
After-sales Service Provided:
-
Online Technical Support
Quick Details
-
Weight (KG):
-
300
-
Marketing Type:
-
hot sale in 2024
-
Place of Origin:
-
Foshan
-
Brand Name:
-
Nanyang
-
Machinery Capacity:
-
400l/time
-
Machinery Function:
-
vegetable filings frying, nuts processing frying, mixing scraping and frying
-
Product name:
-
500L multi-claws gas heating planetary jacketed kettle
-
Application:
-
vegetable and nuts frying
-
Function:
-
frying and cooking and processing
-
Material:
-
304 Stainless Steel and sus316
-
Heating method:
-
gas heating
-
Keywords:
-
multi-claws, scrap wall and side and bottom
-
Raw material:
-
spicy food
-
Usage:
-
spicy food processing and frying
-
Voltage:
-
3 phase customized power voltage
-
After-sales Service Provided:
-
Online Technical Support
Details Description

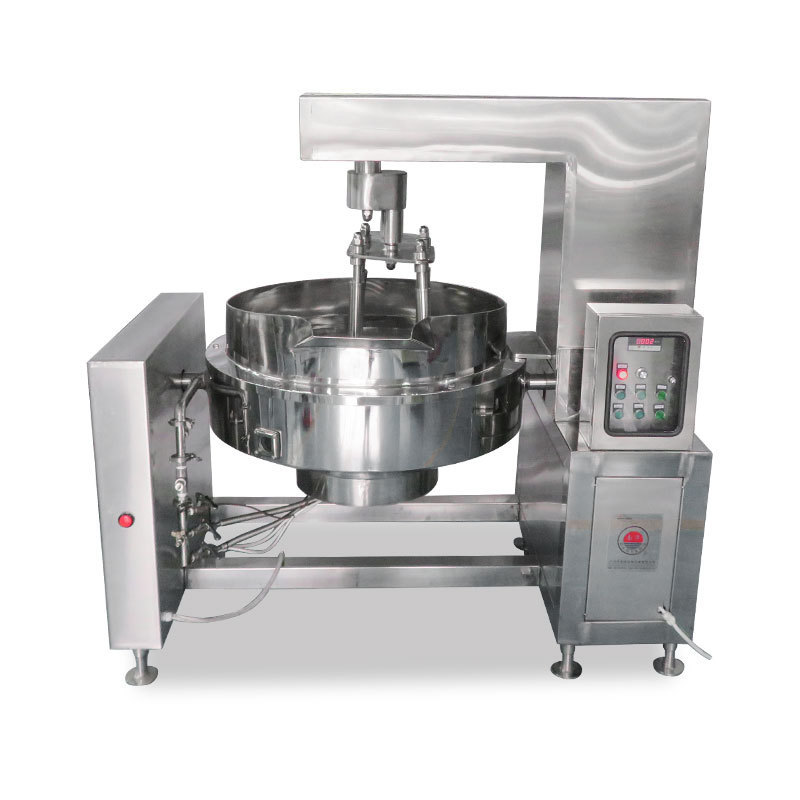

Customized gas heating multi-claws planetary jacketed kettle for nuts and Prefabricated dishes 500L vegetable fillings fryer
Features And Usage
Usage:
Stainless steel jacketed kettle, also known as sandwich steam pot, is widely used in the processing of candy, pharmaceuticals, dairy products, alcohol, cakes, beverages, preserves, cans and other foods, and can also be used in large restaurants or canteens to cook soup, cook vegetables, stew meat. It is an excellent equipment for food processing to improve quality, shorten time, and improve labor conditions.
The jacketed kettle including many kinds as for the material, one is cooking jacketed kettle for sauce material, the other is frying kettle for meat granule material. and the cooking jacketed kettle include many kinds as for the heating resource, there are electric heating jacketed kettle, steam heating, gas heating; and frying kettle including planetary electric heating, planetary gas heating, planetary steam and planetary electromagnetic heating frying kettle. All are scraping edge and wall and bottom, such as jacketed kettle for tomato sauce, salad, planetary kettle for beef and nuts etc.
Features:
This kettle/pot uses 380V electric power as the heat source, and is equipped with an electric heating rod, electric thermocouple, and heat transfer oil in the inter layer. The electric temperature can reach 150 ℃ and is controlled by an electric control box. It has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid materials, and easy control of heating temperature.
Installment
1. Jacketed kettle mainly composed of pot body, heating elements, electric control box, tilting frame, and mixer paddle etc.
2. Frying kettle t
ighten the two set screws on the support bracket, and when shaking the pot, the inlet and outlet pipes at both ends are not allowed to rotate with the pot
.
3.
After installation, for the stirring type sandwich pot, thermal oil must be added to the interlayer until it is 4/5 full, and then connect the 3 phases voltage power supply and add the ground wire. Wires and sockets should be 1.5 times greater than the power used
.
4. Jacketed kettle
Valve installation is not allowed at the overflow port.
5.
Vertical electric heating sandwich pot, materials discharged from the bottom discharge port of kettle.
6.
When discharging, first open the lid of the pot and then turn the hand wheel to tilt the pot and let the material be discharged from the discharge port.
Pls take care
1.
During the use of the jacketed kettle, attention should be paid to the temperature changes of the heat transfer oil. The heat transfer oil should not exceed 200 ℃ (controlled by the electric control box), and the temperature should be adjusted timely and carefully
.
2. T
he material is discharged from the bottom of the pot after finished cooking and frying.
3. And pls cut off the power after finish working.
The kettle inside made of sus304 and mirror polished inside outside
The mixing paddle made of PEFT, scrap wall side and bottom
The gas inlet made of stainless steel, firm and endurable good use
The observe hole made of glass can monitor the inside situation
The electric controlling box can operate all function in one key use
Over 34 years experience factory offer u good quality and service
|
Volume
|
100L
|
200L
|
300L
|
500L
|
1000L
|
2000L
|
|||||
|
Capacity
|
50L
|
100L
|
150L
|
250L
|
500L
|
1000L
|
|||||
|
Material
|
SS304/SS316
|
SS304/SS316
|
SS304/SS316
|
SS304/SS316
|
SS304/SS316
|
SS304/SS316
|
|||||
|
Speed
|
23r/min
|
1.5KW
|
2.2KW
|
3.0KW
|
4.0KW
|
7.5KW
|
|||||
|
Power
|
0.75KW
|
1.2KW
|
1.5KW
|
2.2KW
|
4.0KW
|
5.5KW
|
|||||
|
Inlet Outlet
|
38mm
|
38mm
|
38mm
|
38mm
|
38mm
|
38mm
|
|||||
Suitable Material
