BB length 68mm 100mm Ebike conversion Kit Bafang 8fun BBS02 48v 750w Centre mid drive motor Engine Kit with 48V battery

BB length 68mm 100mm Ebike conversion Kit Bafang 8fun BBS02 48v 750w Centre mid drive motor Engine Kit with 48V battery

FOB Reference Price: Get Latest Price

≥5 Sets

US $559

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: 8FUN, Bafang

Model Number:: BBS02

Motor Type:: brushless gear mid drive motor

Product name:: bbs02 750w engine with battery

Power:: 750W

Controller:: Built-in

Certificate:: CE Approved

Rated Power:: 750W

Color:: Black

Motor:: Mid Crank Motor

Voltage:: 48V

Weight:: 12kg

Quick Details

Battery Capacity:: 48V 15AH

Wheel Size:: CUSTOMIZED

Place of Origin:: Jiangsu, China

Brand Name:: 8FUN, Bafang

Model Number:: BBS02

Motor Type:: brushless gear mid drive motor

Product name:: bbs02 750w engine with battery

Power:: 750W

Controller:: Built-in

Certificate:: CE Approved

Rated Power:: 750W

Color:: Black

Motor:: Mid Crank Motor

Voltage:: 48V

Weight:: 12kg

Product Description

MID DRIVE MOTOR KIT BAFANG BBS02B MID DRIVE MOTOR KIT

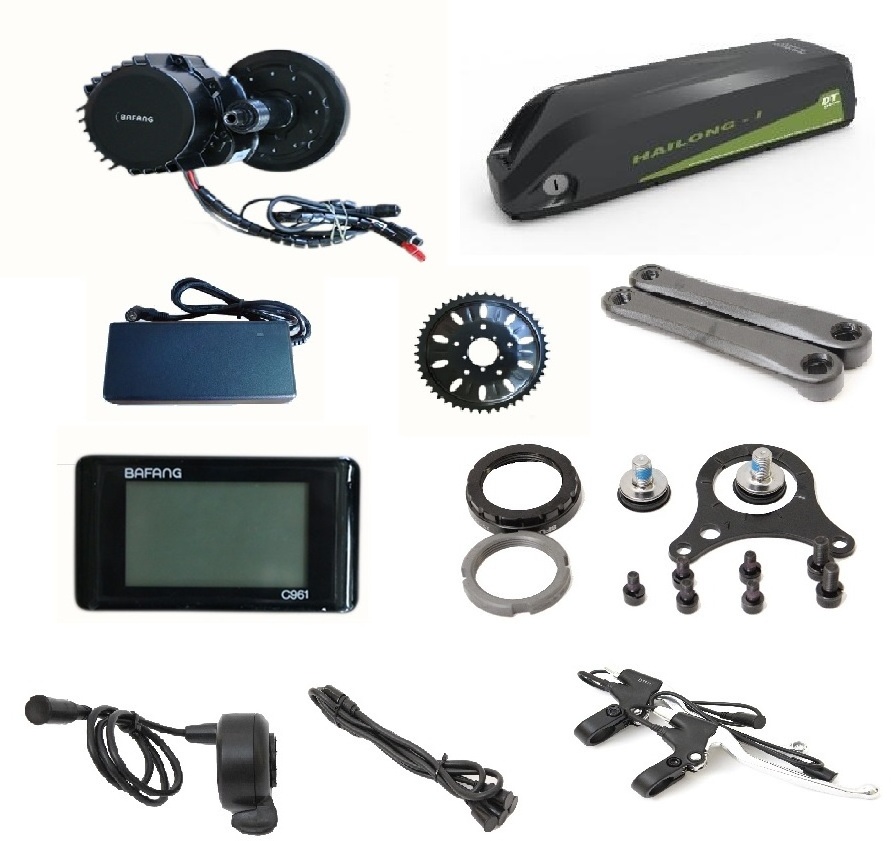

Parts List
1, Bafang central motor(with sine wave controller inside)
2, LCD display, we provide different LCD display as above, you can choose any model you like
3, chain wheel and chain cover
4, Crank
5, speed sensor and magnet
6, brake lever
7, thumb throttle
8, Nuts

This 48V BBS02B 48V 750W we have 2 versions: one is for 68mm-73mm B.B length, the other is for 100mm B.B length. Usually the normal bike is 68mm, the fat tire bike would be 100mm or 120mm.

The advantage of this kits:
1.This kits can be installed on standard normal bike frame easily,no need to change the frame.
2.High starting torque, Max torque≥80N,good performance on climbing.
3.Double clutch is used on drive unit, more safety.
4.High efficiency, low consumption, long travel distance.

What kind of bike can use this motor kits?
Any bike can use this motor kits if they can follow the following requirements:
1.Bottom Bracket Width shall be 68mm to 73mm. If 100mm, you can choose BBS02 48V 750W or BBSHD 48V 1000W .
2.Front Derailleur can be removed.

We also provide other bafang mid drive motor kit versions (different votage and watt), you can choose according to your need : BBS01B 36V 250W , BBS01B 36V/48V 350W , BBS02B 36V/48V 500W , BBS02B 48V 750W and BBSHD 48V 1000W (68mm, 100mm and 120mm) .

48V 15AH e bike battery pack

Battery cell: 65pcs 3000mah class A battery cells

Battery cell cycle life: more than 800 times

Battery weight: 5kg with charger

Charger: 48V 3A charger with EU, US or other country plug

Protection: over-discharger, over-heat, short circuit, Over-voltage

USB output: 5V 1A

Specification

item	value
Place of Origin	China
	Jiangsu
Brand Name	8FUN
Model Number	BBS02
Battery Capacity	48V 15AH
Power Supply	Lithium Battery
Wheel Size	CUSTOMIZED
Display	LCD
Motor Type	brushless gear mid drive motor
Battery Position	Down Tube
Bike Throttle	Thumb
Product name	bbs02 750w engine with battery
Power	750W
Controller	Built-in
Certificate	CE Approved
Brand Name	Bafang
Rated Power	750W
Color	Black
Motor	Mid Crank Motor
Voltage	48V
Weight	12kg

Packing & Delivery

hard carton box one set/carton
