Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COVNA
-
Model Number:
-
Pneumatic Knife Gate Valve
-
Port Size:
-
2''~12'', DN50~DN300
-
Type:
-
Pneumatic Knife Gate Valve
-
Acting Mode:
-
Double Acting/Single Acting Pneumatic Actuator
-
Air Supply Pressure:
-
0.4MPa~0.6MPa
-
Pressure:
-
0.6MPa~2.5MPa
-
Sealing Material:
-
PTFE, Metal Seated
-
End Connection:
-
Flange
-
Certificate:
-
CE, RoHS, ISO9001, TUV
-
Keyword:
-
Pneumatic Valve
Quick Details
-
Application:
-
General
-
Power:
-
Pneumatic
-
Structure:
-
Gate
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COVNA
-
Model Number:
-
Pneumatic Knife Gate Valve
-
Port Size:
-
2''~12'', DN50~DN300
-
Type:
-
Pneumatic Knife Gate Valve
-
Acting Mode:
-
Double Acting/Single Acting Pneumatic Actuator
-
Air Supply Pressure:
-
0.4MPa~0.6MPa
-
Pressure:
-
0.6MPa~2.5MPa
-
Sealing Material:
-
PTFE, Metal Seated
-
End Connection:
-
Flange
-
Certificate:
-
CE, RoHS, ISO9001, TUV
-
Keyword:
-
Pneumatic Valve

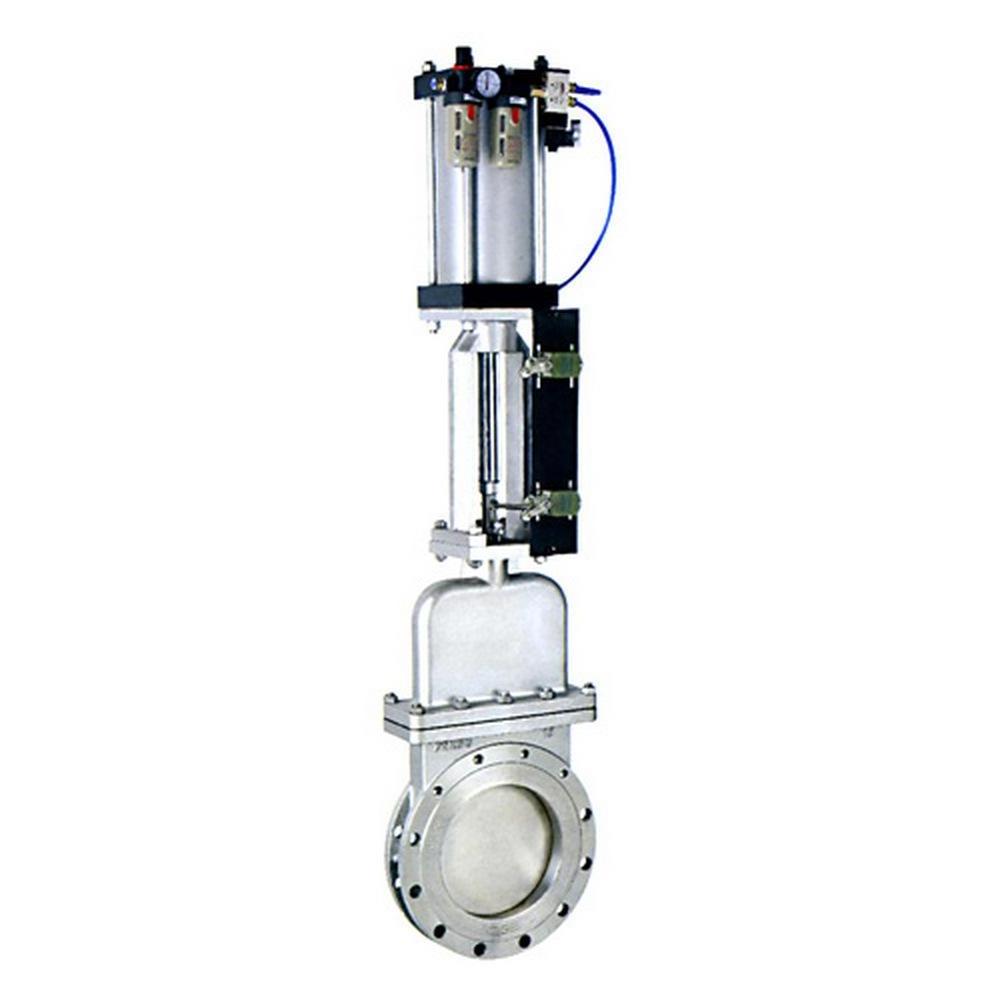

4 inch Double Flanged 304 Pneumatic Air Operated Knife Gate Valve4 inch Double Flanged 304 Pneumatic Actuator Air Operated Knife Gate Valve
Advantages:
- MOQ: 1 set
-
19 years
of valve manufacturing experience
-
Strong inventory, part of commission returned for bulk delay
-
Product quality will be guaranteed for
1 year (12 Months)
-
OEM service
to help customers to promote their brands
-
Offer various international standard,
ANSI, JIS, DIN
, etc
-
Custom complaints handed by one stop professional service.
- Inquiry will be replied within 8 hours
| Size Range | 2"~12", DN50~300 |
| Acting Mode | Double Acting, Spring Return (Single Acting) |
| Operating Pressure | 0.6~2.5MPa |
| Air Supply Pressure | 0.4~0.6MPa |
| Temperature | 0°C~1100°C |
| Lifespan | 1,000,000 (1 Million) Times |
| Body Material | SS304, SS316, SS316L, WCB |
| Sealing Material | PTFE, Metal Seated |
| End Connection | Flanged End or Lug Type |
| Flange Drilling | ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF, BS |
| Applicable Media | Control of Water, Air, Gas, Oil, Liquid |
| Leakage | PTFE Grade A (Zero Leakage), Metal Seated Grade D (Liquid 0.1xDN mm³/s) |
| Optional Actuation | Handlever, Electric Actuated, or Pneumatic Actuated |
| Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device |
All Accessories Can Be Order !
Click here to ask more info about the quote and the catalog.
SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close
DOUBLE ACTING ACTUATOR
Air to Open, Air to Close
