Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VAIRTECH, Vairtech
-
Model Number:
-
EG-F
-
Material:
-
Aluminum Alloy
-
Product name:
-
Eggcrate Grille
-
Color:
-
White
-
Size:
-
Customized Size
-
Material thickness:
-
Standard 1.0mm
-
Surface Finished:
-
Powder Coated
-
Function:
-
Ventilaion
-
Sample:
-
offer
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VAIRTECH, Vairtech
-
Model Number:
-
EG-F
-
Material:
-
Aluminum Alloy
-
Product name:
-
Eggcrate Grille
-
Color:
-
White
-
Size:
-
Customized Size
-
Material thickness:
-
Standard 1.0mm
-
Surface Finished:
-
Powder Coated
-
Function:
-
Ventilaion
-
Sample:
-
offer

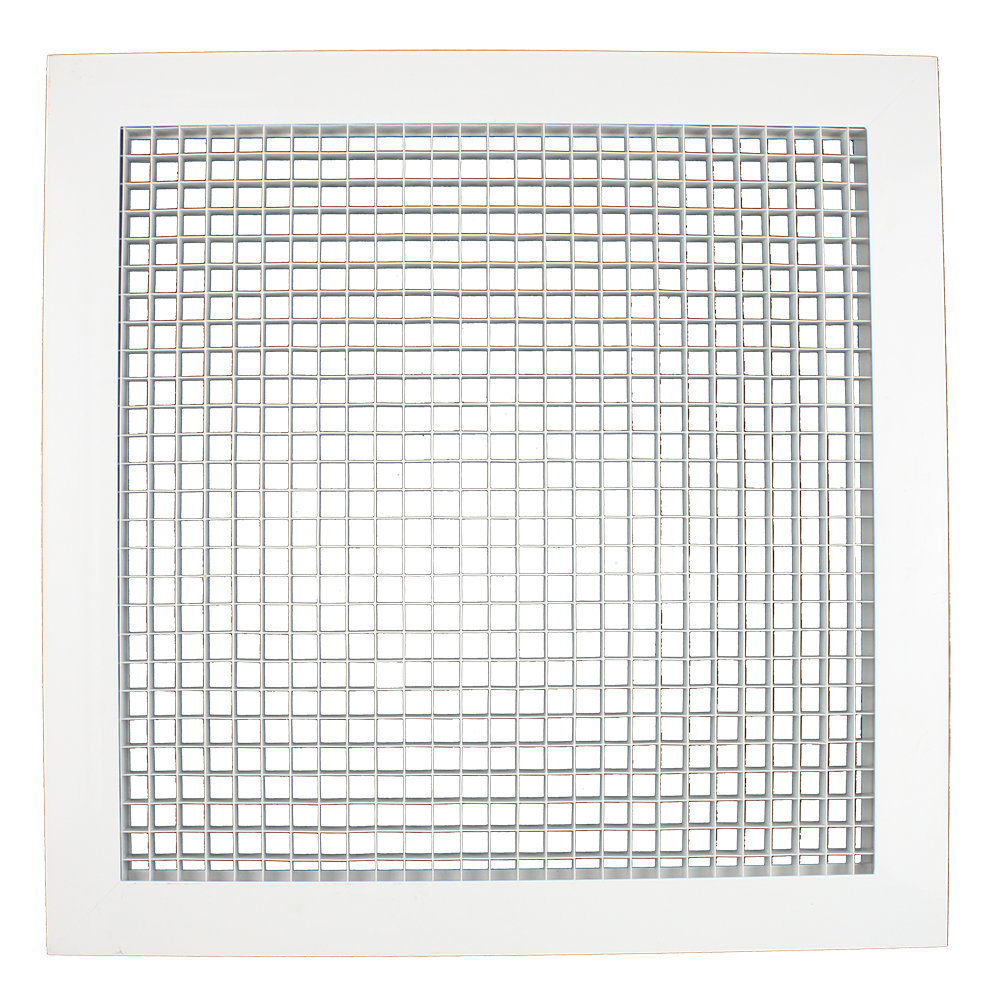

HVAC aluminum decorative eggcrate grille air conditioner louvers
Construction:
- Frame: High quality extruded aluminum alloy(A6063) profile with 30mm flange as standard.
- Eggcrate Core: 12.7x12.7x12.7mm aluminum grid
Description:
- The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.
- Aluminum eggcrate grid is fixed to the frame with aluminum pins loaded with steel springs. Core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper adjustment.
- Rigid construction provide noiseless performance.
- It is designed for return and exhaust application for air conditioned space.
Surface Finish:
- Powder coated color finish as per RAL color---- standard color: RAL9016, 9010
Material thickness:
- 0.8mm, 1.0m for option
Accessory:
- Air Filter
- OBD(Opposed Blade Damper
Size:
- Any size available
- Overall face size = Neck size + 55mm
Standard size
|
Item Code |
Neck Size(mm) |
Face Size(mm) |
|
EG-F-225x225 |
225x225 |
280x280 |
|
EG-F-300x300 |
300x300 |
355x355 |
|
EG-F-300x600 |
300x600 |
355x655 |
|
EG-F-375x375 |
375x375 |
430x430 |
|
EG-F-450x450 |
450x450 |
505x505 |
|
EG-F-540x540 |
540x540 |
595x595 |
