Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1500*3000mm
-
Cutting Thickness:
-
depend on Materials
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Derek
-
Weight (KG):
-
6000 KG
-
Product name:
-
Tube Fiber Laser Cutting Machine
-
Keyword:
-
Fiber Laser Cutting Machine
-
Laser source:
-
Raycus Fiber Laser Generator
-
Laser power:
-
1500W / 2000W / 3000W / 4000W / 6000W
-
Laser head:
-
Worthing /Raytools cutting head
-
Cutting materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
-
Motor:
-
Japan Yaskawa Servo Motor
-
Control system:
-
Cypcut System
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0-80000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1500*3000mm
-
Cutting Thickness:
-
depend on Materials
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Derek
-
Weight (KG):
-
6000 KG
-
Product name:
-
Tube Fiber Laser Cutting Machine
-
Keyword:
-
Fiber Laser Cutting Machine
-
Laser source:
-
Raycus Fiber Laser Generator
-
Laser power:
-
1500W / 2000W / 3000W / 4000W / 6000W
-
Laser head:
-
Worthing /Raytools cutting head
-
Cutting materials:
-
Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
-
Motor:
-
Japan Yaskawa Servo Motor
-
Control system:
-
Cypcut System
-
After-sales Service Provided:
-
Online Support
Product Description
Welecome to Jinan Derek Laser Technology Co.,Ltd

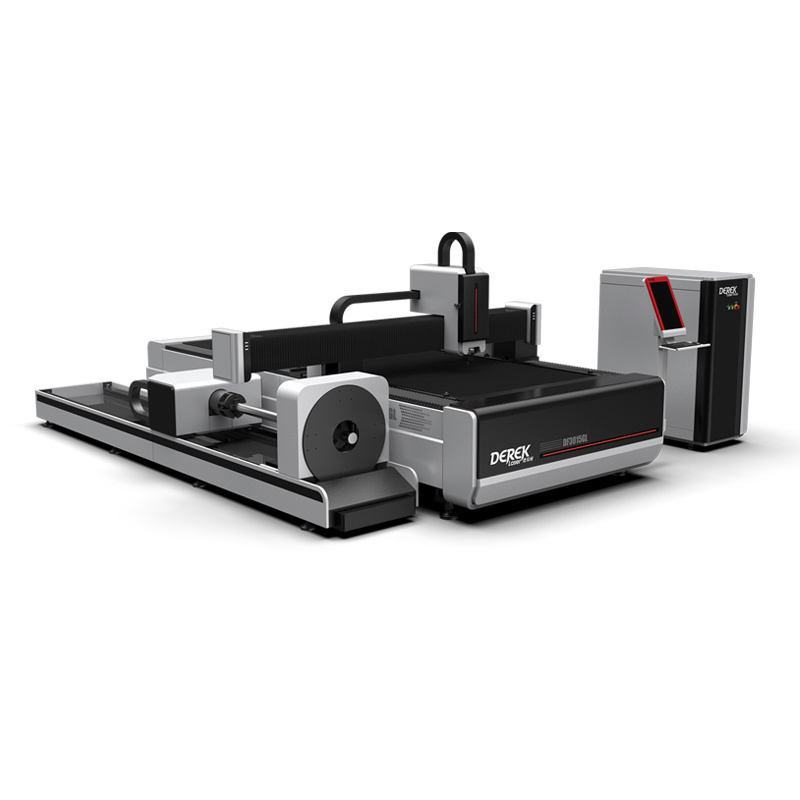

2000W 3000W Fiber Laser Cutting Machine with Rotary Attachment for Metal Sheet and Pipe Tube
Technical Parameters
|
SPECIFICATIONS
FOR DF3015GL METAL PIPE FIBER LASER CUTTING MACHINE
|
|
|
|
|||
|
Model
|
DF3015GL metal pipe fiber laser cutting machine
|
|
|
|||
|
Cutting Tube maximum diameter
|
220mm
|
|
|
|||
|
Rotary Attachment
|
For both sheet and tube cutting
|
|
|
|||
|
Control System
|
Cypcut 3000S
|
|
|
|||
|
Laser Power
|
1000w/1500w/2000w/3000w/4000w/6000W/8000W/10000W Raycus /MAX
|
|
|
|||
|
Position Type
|
Red dot
|
|
|
|||
|
Working Area
|
3000*1500mm
|
|
|
|||
|
Power Consumption
|
≤16KW
|
|
|
|||
|
Laser Wave Length
|
1080nm
|
|
|
|||
|
Working Voltage
|
380V/50Hz
|
|
|
|||
|
Working Table
|
Sawtooth
|
|
|
|||
|
Auxiliary Gas
|
Oxygen,Nitrogen,Air
|
|
|
|||
|
Maximum Idle Running Speed
|
1400mm/s
|
|
|
|||
|
Working life of fiber module
|
More than 100000 hours
|
|
|
|||
|
Fiber laser cutting head
|
Worthing / Raytools
|
|
|
|||
|
Liner guider system
|
PMI/HIWIN made in Taiwan , (Option THK made in Japan)
|
|
|
|||
|
Transmit system
|
Dual Rack & Pinion type
|
|
|
|||
|
X/Y axis position accuracy
|
±0.03mm
|
|
|
|||
|
X/Y axis reposition accuracy
|
±0.02mm
|
|
|
|||
|
Gross weight
|
4000kg
|
|
|
|||
|
Driver system
|
Janpan Yaskawa servo motor
|
|
|
|||
|
Machine dimension
|
4350*3200*1740mm
|
|
|
|||
Machine features
Features for high quality laser cutting machine
1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters;
4. The laser maintenance free;
5. The cutting edge looks perfect and the appearance is smooth and beautiful;
6. Imported the transmission mechanism and servo motor, and high cutting accuracy;
7. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
Main configurations
Configuration
3000*1500mm
working area
;
Raycus 2000W laser source;
Rotary 6m length, Pipe diameter 20-220mm;
Raytools
auto focus laser
cutting head
;
X,Y axis Japan
YASKAWA
servo motor
;
Z axis Japan
YASKAWA
servo motor
;
Taiwan
HIWIN
guide rail
;
Taiwan
APEX
g
ear rack
;
France
MOTOREDUCER
reducer
;
Taiwan
TBI
ball screw
;
Japan
SMC
/Taiwan
AirTac
pneumatic components
;
France
Schneider
electrical components
;
Tongfei Teyu
water chiller
;
Cypcut 3000S
control system
;
Wireless DSP remote control system;
Aluminum gantry beam;
Laser Cutting Head with non-contact height following function;
Control cabinet with air conditioner;
Exhaust fan;
Gross weight 6000kg;
Application & Samples
Applicable Industry
Manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Applicable Materials
Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Cutting speed
|
Material
|
thickness
(mm)
|
Speed
(meter/min)
|
Pressure
(mpa)
|
Focus
|
|
SS 201
|
1
|
9
|
0.8
|
-4
|
|
SS 201
|
2.2
|
2
|
1.2
|
-4
|
|
SS 304
|
1.3
|
7
|
0.9
|
-4
|
|
SS 304
|
1.8
|
3
|
1
|
-4
|
|
Carbon Steel
|
1.1
|
9(10)
|
0.8
|
-1
|
|
Carbon Steel
|
2.4
|
2.2
|
0.4
|
-3
|
|
Carbon Steel
|
2.8
|
1.5
|
0.4
|
-3.5
|
|
Carbon Steel
|
4
|
1.5(1.2)
|
0.4
|
-4
|
