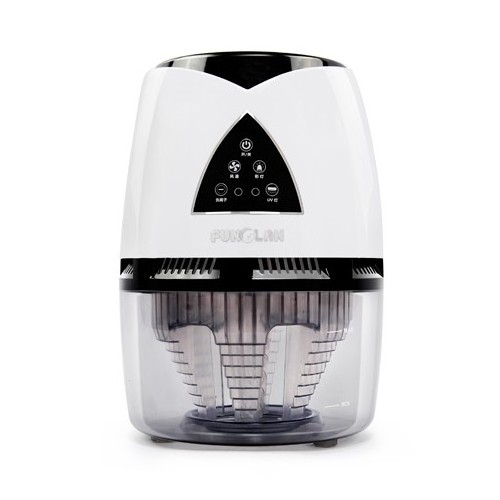

7 stage air purification wholesale touch panel humidifier home air purifier with ionizer

7 stage purification wholesale touch screen humidifier home air purifier with ionizer

Specification

Product Fuctions

Model No.(KJG-178C )

• Unique water spraying system:

• Build with ionizer , negative ion density:≥3million / cm³

• 3 speeds setting (High, Midium, Low) avaliable

Specification

Patented water spraying system: Generate 16-layer water screen to wash out 99% dust, pollen, allergen, virus, bacteria, odor, Formaldehyde, Ammonia, Benzene, VOC and other organic pollutants, and filter out airborne particle even smaller than 0.1um in diameter.

Humidifier: While the water spraying system being on work, this product will work like a humidifier, and millions of nature anions will be released from the water like a rainfall.

Ionizer: Capable of generating anions in large quantities, which refreshes your surrounding air as if staying in the forest.
Motor type: Permanent split capacitor, rated for continuous high RPM, long life duty.

Photocatalyst and UV lights: to kill bacteria and viruses passing this stage.

The machine to purify air from 5steps.

Pollutanted air come into the machine from the air intake passage ( the green air intake ring in the picture )

1 st step: multi-layer water screen

There is a suction pipe in the center, on the surface, there are many small eyes. The pipe will revolve in high speed by the drive of the motor. And form multi-layer water screen. Just like a rainfall. The water spraying system will wash the air. It can wash out 99% dust, pollen, virus, bacteria, odor, Formaldehyde, Ammonia, Benzene, VOC and other organic pollutants, and filter out airborne particle even smaller than 0.1un in diameter. The dust will stay in the water tank.

2 nd step: preliminary filter

to catch large particulates.

3 th And 4 th : photocatalyst-UV

To kill bacteria and viruses passing this stage.

5 th : negative ions

Capable of generating anions in large quantities, which refreshes your surrounding air as if staying in the forest.

The fresh air and ions will come out from the air outlet passage through the fan.

You can clean the water tank every 15days or it depends on the degree of pollution.

Installation and Attention:

Fill Water

Make sure the power if off. Twist off and take out the upper body, then fill water into the transparent tank. Make sure to fill water no higher than the “H” level and no lower than the “L” level marked outside the tank. Then twist on the upper body and set it in right place.

Attention:

The waterwashing system won’t work if no enough water be filled, so please add water higher than the “L” level before turning on the machine.

Drain and Clean

Please change the water in time when it hasn’t been used for a long time or is contaminated. The steps are as below:

Turn off the power and unplug the machine.

Twist off and take out the upper body.

Empty the dirty water inside the tank, and clean the tank. If

necessary, you may also add some detergent into the water for cleaning purpose.

Replace all the cleaned parts back in the right position.

Advantage of KJG-178C

1. Fresher air

Comparing with other air purifiers, the air coming out from our products is much fresher and comfortable with a smell of water refrigerant taste not like other purifiers with dry and astringent smell. Millions of natural negative ions are produced out of the waterfall at the same time which makes the air fresher as well.

2. Unique Selling Points

The water spraying system is completely innovative and most efficient in this field, which is new to customers. Our patent will assure this.

3. Transparent Window

With LED lampion inside, it's easy for customers to see clearly how water spraying system works.

4. More Entrance for Air

Unique design of all around entrances for air purifier efficiently adsorb the polluted air in any corner.

5. Easy Maintenance & Budget Saving

As most of the particles are captured by our patented water spraying system, the filters can be in valid service for a long time.

6. Very Low Noise Level

7. Better Quality

Materials we use: Our products adopt ecological ABS & painting and superior motor with long duty.
