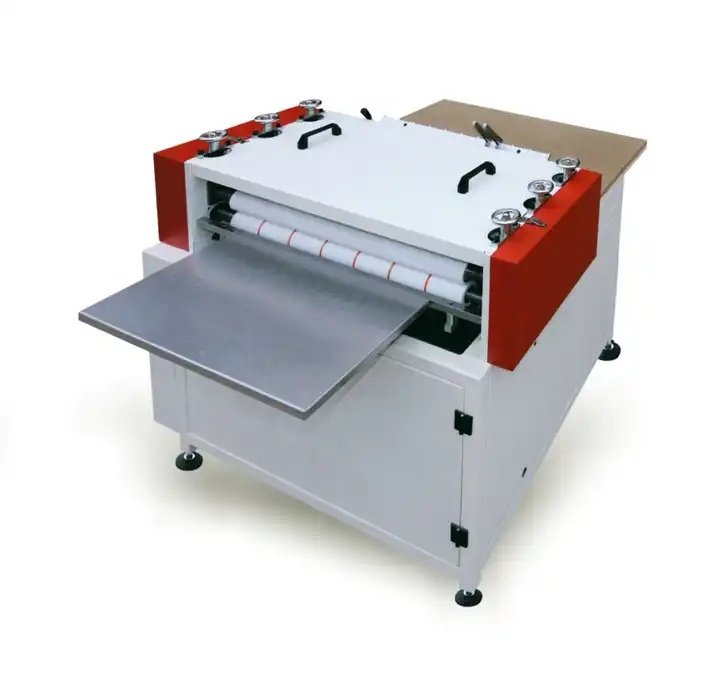

Desk Calendar Holder Hard Cover Book Case Making Machine Hardcover Making Machine

Desk Calendar Holder Hard Cover Book Case Making Machine Hardcover Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $5300

≥2 Sets

US $5200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: Yingsheng

Voltage:: 220V 50HZ 1P, 220V/50HZ

Dimension(L*W*H):: 1400*1220*1300mm

Weight:: 280 kg

Product name:: Hard Cover Book Case Making Machine Hardcover Making Machine

Work Speed:: 3-7Pcs/min

Max.Case size:: 800*450mm

Min.Case size:: 150*150mm

Paper thickness:: 80-250g

Power:: 0.75KW

Machine Dimensions:: 1400*1220*1300mm

Packing:: Wooden Case

Quick Details

Type:: Other

Production Capacity:: 3-7pcs/min

Max. workable width:: 800mm

Place of Origin:: Henan, China

Brand Name:: Yingsheng

Voltage:: 220V 50HZ 1P, 220V/50HZ

Dimension(L*W*H):: 1400*1220*1300mm

Weight:: 280 kg

Product name:: Hard Cover Book Case Making Machine Hardcover Making Machine

Work Speed:: 3-7Pcs/min

Max.Case size:: 800*450mm

Min.Case size:: 150*150mm

Paper thickness:: 80-250g

Power:: 0.75KW

Machine Dimensions:: 1400*1220*1300mm

Packing:: Wooden Case

Product Description

Desk Calendar Holder Hard Cover Book Case Making Machine Hardcover Making Machine

The hard book cover making machine is mostly applicable to various notebook, photo book (photo album), folder, certificate, hardcover book.It would be better match with Gluing Machine( Such as our RJS JS series of glue machine,Can use hot glue, white latex ).

Feature At A Glance

Firstly: glue the cover paper with glue machine,move the glued paper to the plate under the clamping device;
Secondly: fix the grey board to the glued cover paper by hand,Lift up the clamping device,
Thirdly:push the fixed unit into double station where the 4 sides will be folded at 2 times:when put into,will folding 2 sides,then machine push out,put into twice,will folding the other 2 sides.

Specification

Max. Case size	800*450mm
Paper thickness	80-250g
Min. Case size(min)	150*150mm
Work Speed	3-7PCS/minute
Power Supply	220V/50HZ
Mainframe power	0.75kw
Machine Dimensions(L×W×H)	140012201300mm

Packing & Delivery

1. Packing: Plywood Case for Each Machine.(Small machine or spare parts packed by carton） 2. Payment terms: T/T and Tradeassurance (50% deposit to start the production, 50% paid before delivery) 3. Delivery date：2-35 business days after receiving the payment. 4. Shipping way: By sea from Shanghai or Ningbo Port; By Express or railway are avaliable.
