Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LianWang
-
Model Number:
-
LW3600-4
-
Dimension(L*W*H):
-
3600*1500*1800mm
-
Power (kW):
-
9.4
-
Weight (KG):
-
1220 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Drilling Machine
-
Usage:
-
Panel Furniture
-
Maximum Drilling Depth:
-
60mm
-
Minimum Machining Hole Spacing:
-
130*32mm
-
Reducer:
-
Janpan Xinbao
-
Axis:
-
Single axises
-
After-sales Service Provided:
-
Online support
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
35
-
Range of Spindle Speed(r.p.m):
-
16000 - 18000 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LianWang
-
Model Number:
-
LW3600-4
-
Dimension(L*W*H):
-
3600*1500*1800mm
-
Power (kW):
-
9.4
-
Weight (KG):
-
1220 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Drilling Machine
-
Usage:
-
Panel Furniture
-
Maximum Drilling Depth:
-
60mm
-
Minimum Machining Hole Spacing:
-
130*32mm
-
Reducer:
-
Janpan Xinbao
-
Axis:
-
Single axises
-
After-sales Service Provided:
-
Online support

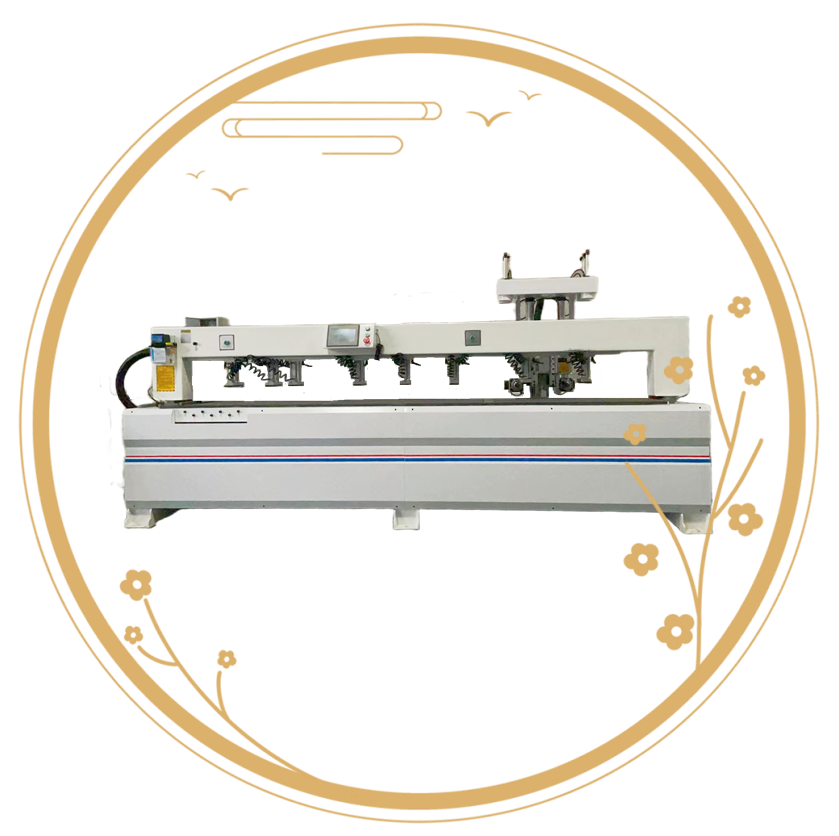

CNC four spindle side boring wood hole drilling machine, multi functions wood door prodcution center
| work length | 3000mm*90mm*30mm | Reducer | Janpan Xinbao |
| drive | Xinjie Servo drive | Spindle power | 2.2kw |
| Guide rail | Taiwan 25 square rail | rack | Taiwan rack |
| Frequency converter | Mid-drive 2.2 high frequency | Laser probe | Bonner |
| Precision | 0.05/300mm | Operating Voltage | 380v/50hz |
| Rotating speed | 18000rpm/min | machine tool | Thick-walled square steel |
| Weight | 1150kg | XYZ transmission | Y helical rack drive, Z axis screw drive |
| mesa | High strength PVC | Maximum punching speed | 80000mm/min |
\
1 Pressure cylinder , The movable air cylinder accurately presses the wood, effectively avoids the movement of the board, improves the accuracy of the machine, and is sturdy and durable.
2 Weighted body,Strong and stable, the machine body adopts high-strength pvc table to avoid the deviation caused by table surface wear. The machine tool adopts thick-walled square steel, which effectively avoids the inconvenience caused by the vibration of the machine body when the machine is working, and extends the service life of the machine.
3 Control case ,The distribution control box is neatly arranged, and the standard frequency conversion central control is provided to ensure safe production and increase service life
4 Transmission hardware,Improve efficiency, adopt German oblique tooth square guide, high accuracy, long service life, improve work efficiency, speed 80-120m/min
5 Machine drill package,The machine drilling report adopts pure copper servo motor control, original Taiwan guide rail, which improves the drilling speed and accuracy
